    Introduction

    Performance is a critical issue in the current cluster of workstations. However, delivery of adequate performance is not automatic and performance evaluation tools are required in order to help the programmer to understand the behavior of a parallel program. Performance evaluation and visualization is an important and useful technique that helps the user to understand and improve complex parallel performance phenomena. In order to produce MPI applications that perform well on today's parallel architectures, programmers need effective tools for collecting and analyzing performance data. Because programmers typically work on more than one platform, cross-platform tools are highly desirable. A variety of such tools, both commercial and research, are becoming available.

    Performance visualization tools such as Intel Thread Checker, Interl Vtune Performance analyzer, Intel thread Debugger, Sun Studio, Etnus totalview Debugger, Upshot, Jumpshot (Public domain) , IBM Tools and C-DAC HPCC tools (C-DAC, 1998) have been developed in order to help the programmer to understand the behavior of a parallel program and understand complex performance processes in order to produce MPI applications that perform well on today's parallel architectures, performance evaluation and visualization is an important and useful technique that helps the user to understand and improve complex parallel performance phenomena. Performance is a critical issue in current massively parallel processors. However, the delivery of adequate performance is not automatic and performance tools are required in order to help the programmer to understand the behavior of a parallel program.


    Performance visualization is the use of graphical display techniques to present an analysis of performance data for an improved understanding of complex performance phenomena. Performance visualization systems for parallel programs have been helpful in the past and they are commonly used in order to improve parallel program performance. However, despite the advances that have been made in visualizing scientific data, techniques for visualizing performance of parallel programs remain adhoc and performance visualization becomes more difficult as the parallel system becomes more complex.

    Performance visualization tools have been developed in order to help the programmer to understand the behavior of a parallel program and understand complex performance processes. Massively parallel processors can generate a huge amount of performance data and sophisticated methods for representing and displaying this data are required. Visualization must be carefully used in order to get useful results. In general, current performance views are not scalable and they do not represent an abstraction of the performance data. If performance visualization is to become an integral tool in parallel performance evaluation, it must be based on a formal foundation that relates abstract performance behavior to visual representations. Parallel performance visualization offers a wide range of research opportunities, and one of these is the designing and development of new scalable performance data representations. These data representations should have the following features:

      (a).
    Scalability (i.e. number of processors, problem size)
      (b).
    Higher level of abstraction than that of existing views
      (c).
    Usefulness: a performance view must be useful in the process of understanding parallel program behavior.
      (d).

    Incorporation and integration of state-of-the-art technologies including: application domain expertise, visual perception and graphic design.

    Parallel performance visualization has already been identified as a useful technique and work related to abstract performance views and several authors have carried scalability. Not only visual but also aural methods are being explored in order to represent parallel performance data. Visual and aural portrayals of parallel program execution and used to gain insight into how a program is working. The combination of portrayals in a coordinated performance environment provides the user with multiple perspectives and stimuli to comprehend complex, multidimensional run-time information. A programmer should begin the investigation into causes of performance degradation with high-level and abstract views, proceeding from the highest level to the lowest level. While a collection of views, animations and general performance data can help uncover performance bugs, some guidelines or strategies are needed to direct the order in which views are examined.


    An Overview of Performance Analysis

    Three basic steps in the performance analysis (data collection, data transformation, and data visualization) process need to be distinguished. Data collection is the process by which the data about program performance are obtained from an executing program. Data is normally collected in a file, either during or after execution, although in some situations it may be presented to the user in real time. Three basic data collection techniques can be distinguished:

    • Profiles: record the amount of time spent in different parts of a program. This information, though minimal, is often invaluable for highlighting performance problems. Profiles typically are gathered automatically.
    • Counters : record either frequencies of events or cumulative times. The insertion of counters may require some intervention from the programmer.
    • Event traces : record each occurrence of various specified events, thus typically producing a large amount of data. Traces can be produced either automatically or with programmer intervention.

    The raw data produced by profiles, counters, or traces are rarely in the form required to answer performance questions. Hence, data transformations are applied, often with the goal of reducing total data volume. Transformations can be used to determine mean values or other higher-order statistics or to extract profile and counter data from traces. For example, a profile recording the time spent in each subroutine on each processor might be transformed to determine the mean time spent in each subroutine on each processor, and the standard deviation from this mean. Similarly, a trace can be processed to produce a histogram giving the distribution of message sizes. Each of the various performance tools described in subsequent sections incorporates some set of built-in transformations; more specialized transformation can also be coded by the programmer.

    Parallel performance data are inherently multidimensional, consisting of execution times, communication costs, and so on, for multiple program components, on different processors, and for different problem sizes. Although data reduction techniques can be used in some situations to compress performance data to scalar values, it is often necessary to be able to explore the raw multidimensional data. As is well known in computational science and engineering, this process can benefit enormously from the use of data visualization techniques. Both conventional and more specialized display techniques can be applied to performance data. Next, we examine in more detail the techniques used to collect performance data. We consider in turn profiling, counters, and event traces, focusing in each case on the principles involved.

    Profiles

    The concept of a profile should be familiar from sequential computing. Typically, a profile shows the amount of time spent in different program components. This information is often obtained by sampling techniques, which are simple but not necessarily highly accurate. The value of the program counter is determined at fixed intervals and used to construct a histogram of execution frequencies. These frequencies are then combined with compiler symbol table information to estimate the amount of time spent in different parts of a program. This profile data may be collected on a per-processor basis and may be able to identify idle time and communication time as well as execution time.

    Profiles have two important advantages. They can be obtained automatically, at relatively low cost, and they can provide a high-level view of program behavior that allows the programmer to identify problematic program components without generating huge amounts of data. (In general, the amount of data associated with a profile is both small and independent of execution time.) Therefore, a profile should be the first technique to be considered when seeking to understand the performance of a parallel program.

    A profile can be used in numerous ways. For example, a single profile on a moderate number of processors can help identify the program components that are taking the most time and that hence may require further investigation. Similarly, profiles performed for a range of processor counts and problem sizes can identify components that do not scale.

    Profiles also have limitations. In particular, they do not incorporate temporary aspects of program execution. For example, consider a program in which every processor sends to each other processor in turn. If all processors send to processor 0, then to processor 1, and so on, overall performance may be poor. This behavior would not be revealed in a profile, as every processor would be shown to communicate the same amount of data.
    Profilers are available on most parallel computers but vary widely in their functionality and sophistication. The most basic do little more than collect sequential profile data on each processor; the most sophisticated provide various mechanisms for reducing this data, displaying it, and relating it to source code. Because efficient profiling requires the assistance of a compiler and runtime system, most profiling tools are vendor supplied and machine specific.

    Counters

    As its name suggests, a counter is a storage location that can be incremented each time a specified event occurs. Counters can be used to record the number of procedure calls, total number of messages, total message volume, or the number of messages sent between each pair of processors. Counters may be generated by compiler-generated code, by code incorporated in communication libraries, or by user-inserted calls to counter routines. Counters complement profilers by providing information that is not easily obtainable using sampling techniques. For example, they can provide the total number and volume of messages, information that can be combined with communication time data from a profile to determine the efficiency of communication operations. A useful variant of a counter is an interval timer; a timer used to determine the length of time spent executing a particular piece of code. This information can be accumulated in a counter to provide an accurate determination of the total time spent executing that program component. A disadvantage of interval timers is that the logic required to obtain a timer value can be expensive.

    Traces

    An execution trace is the most detailed and low-level approach to performance data collection. Trace-based systems typically generate log files containing time-stamped event records representing significant occurrences in a program's execution, such as calling a procedure or sending a message. Trace records may include information such as the type of event and the procedure name or destination task, and can be generated either automatically or under programmer control.

    Trace-based approaches support a particularly broad study of program behavior. They can be used to examine casual relationships between communications, to localize sources of idle time, and to identify temporary hot spots. For example, an execution trace could be used to determine that all processors are sending to the same processor at the same time. An execution trace can also be post processed to obtain profile, count, and interval timer information; to compute higher-order statistics such as the means and variances of these values; and to obtain other data such as mean message queue length in a message-passing system.

    The disadvantages of trace-based approaches stem primarily from the huge volume of data that can be generated. Particularly when a program is executing on large numbers of processors, it is easy to generate tens, hundreds, or even thousands of megabytes of data. This large data volume has three unwelcome consequences.

    • Logging of this data tends to perturb performance, thereby leading to what is called the probe effect in which the measuring of performance data changes their characteristics.
    • The sheer volume of data makes post processing difficult. Frequently, sophisticated analysis is required to extract relevant information.
    • The programmer, in order to combat the problems caused by volume, may have to spend considerable effort tuning the data collection process so that only relevant events are recorded while the phenomenon of interest is retained.

    Tracing then becomes a labor-intensive process. For these reasons, tracing should be used with care and only if other data collection techniques are not available or do not provide sufficient information. Many parallel programming tools provide some automatic tracing capabilities, for example by generating a trace record for every message generated or received. These capabilities are invoked by linking with a specialized version of a communication library and/or by a runtime flag. Mechanisms for generating user-defined events may also be provided. In principle, event traces can be interpreted in various ways by using different tools. A stumbling block here is a lack of standards for event log records.

    Characteristics of Visualization Tools



    The reasons for poor performance of parallel message-passing codes can be varied and complex, and users need to be able to understand and correct performance problems. Performance tools can help by monitoring a program's execution and producing performance data that can be analyzed to locate and understand areas of poor performance. There are number of performance tools, both research and commercial, that are available for monitoring and/or analyzing the performance of MPI message-passing parallel programs. The tool must have good characteristics in order to assist the user to understand performance anomalies in the parallel program. When selecting a tool for a particular task, the following issues should be considered:

    Accuracy: In general, performance data obtained using sampling techniques that are less accurate than data obtained by using counters or timers. In the case of timers, the accuracy of the clock must be taken into account.

    Simplicity: The best tools in most circumstances are those that collect data automatically, with little or no programmer intervention, and that provide convenient analysis capabilities.

    Flexibility: A flexible tool can be extended easily to collect additional performance data or to provide different views of the same data. Flexibility and simplicity are often opposing requirements.

    Intrusiveness: Unless a computer provides hardware support, performance data collection inevitably introduces some overhead. We need to be aware of this overhead and account for it when analyzing data.

    Abstraction: A good performance tool allows data to be examined at a level of abstraction appropriate for the programming model of the parallel program. For example, when analyzing an execution trace from a message-passing program, we probably wish to see individual messages, particularly if they can be related to send and receive statements in the source program. However, this presentation is probably not appropriate when studying a data-parallel program, even if compilation generates a message-passing program. Instead, we would like to see communication costs related to data-parallel program statements.

    A number of commercial and research tools are available for performance analysis of Threaded and MPI programs. The most prevalent approach taken by these tools is to collect performance data during program execution are then provide post-mortem analysis and display of performance information. Some tools do both steps in an integrated manner, while other tools or tool components provide just one of these functions. A few tools also have the capability for run-time analysis, either in addition to or instead of post-mortem analysis. A similar procedure for testing each tool and using a common set of evaluation criteria is required.

    In the first step, the software is installed using the instructions provided in the manual. After the software has been installed successfully, user works through specific tutorial or examples that are provided so that he/she can become familiar with the tool. Finally, we attempt to use the tool to analyze a number of test programs. A set of Evaluation criteria based on the following is investigated.

    Robustness           Usability           Scalability           Portability           Versatility

    Robustness : For robustness, we expect the tool to crash infrequently and features to work correctly as claimed by the developer. Errors should be handled by displaying appropriate diagnostic messages. The error should be indicated in a file or on the standard output device. Also, the tool should not cause the user to get stuck when he/she takes a wrong action by mistake. The tool should prompt the user and give proper feedback in detailed fashion. Such kind of error messages should be given in the technical manual. Research tools are not expected to be as robust as commercial tools, but if the tool has been released for public use, considerable effort should still have been invested in debugging it and on error handling. The installation procedure for the tool should be as simple as possible so that user can link the tool during compilation/execution time easily.

    Usability : To be useful, a tool should have adequate documentation and support, and should have an intuitive easy-to use interface. On-line help and manual pages are also helpful for usability. Although research tool developers cannot provide extensive support for free, we consider an email address for questions and bug reporting to be a minimum requirement for a tool that has been released for public use. Adequate functionality should be provided to accomplish the intended task without putting undue burden on the user to carry out low-level tasks, such as manual insertion of calls to trace routines, or sorting and merging of per-process trace files without assistance. A set of questions and answers should be made available in the form FAQ so that user can see the importance and use of this tool. The tool should support SPMD and MPMD programming paradigms.

    Scalability : For scalability, we look for the ability to handle large numbers of processes and large or long-running programs. The problem size and the machine size are increased to study the performance anomalies, keeping Amdahl 's law and Gustafson's law for scalability. Scalability is important both for data collection and for data analysis and display. For data collection, desirable features are scalable trace file formats, a mechanism for turning tracing on and off, and filtering of which constructs should be instrumented. For data analysis and display, important scalability features include ability to zoom in and out, aggregation of performance information, and filtering. Also, the overheads in usage of memory and CPU are analyzed for each tool for increase in problem size with respect to increase in machine size.

    Portability : Because of the short lifespan of high performance computing platforms and because many applications are developed and run in a distributed heterogeneous environment, most parallel programmers will work on a number of platforms simultaneously or over time. Portability is a relative measure, which depends on both the language used and the target machine. Programmers are understandably reluctant to learn a new performance tool every time they move to a new platform. Thus, we consider portability to be an important feature. For portability, we look for whether the tool works on most major platforms and for what MPI implementations and languages it can handle. The tool must be easily usable when compilers, system area networks, and the message passing libraries are changed and should produce correct behavior, keeping certain computational characteristics in mind.

    Versatility : For versatility, we look for the ability to analyze performance data in different ways and to display performance information using different views. Providing a unified view of the profiling data generated by each process buy modifying the time stamps of events on different processes so that all the processes start and end at the same time and provide a convenient form for visualizing the profiling data in a Gantt chart, Histograms and Graphs. Another feature of versatility is the ability to inter-operate with other trace formats and tools. There should be special features in tools to provide an abstract representation of performance. Sophisticated methods are required for representing and displaying the data in visual and aural forms. Tools must have interesting features to represent particular fragment in a program in the form of 3D display of surface. To provide useful information for the user, the important goals of the tools to provide an abstract representation of program performance are considered allowing detection of unknown bottlenecks using 3D displays, and to provide scalable views for programs running on a large number of processors.

    An emerging parallel programming paradigm is to use message passing between nodes and shared memory (e.g., OpenMP) within a node. Most performance analysis tools were originally developed to support only one of these models, but tools that support both models simultaneously are highly desirable.

    Characteristics: Performance Issues In Algorithm Design

    In writing efficient message-passing programs, one must take into consideration a number of factors. Many times, these factors are at odds with each other, and a careful balance needs to be derived. Key to successful message-passing programming (as well as ordinary sequential programming) is the selection of the appropriate parallel algorithm. Various scientific problems exhibit the same type or different amount of concurrency in parallel algorithm. Concurrency (or parallelism as it is most frequently referred to) is of paramount importance in parallel programming, and its detection and specification is one of the two key steps in the design of parallel algorithms (data and task distribution is the other). Message-passing programs need to effectively distribute the various data-structures that are manipulated during the execution of the algorithm as well as the computation among the processors. By properly distributing the data-structures and the computation, a program can reduce the communication overhead and increase the utilization of the parallel computer.

    Thus, in order to be suitable for programming using message-passing, parallel algorithms must also specify data and/or task distribution. In the rest of this section, we discuss the various properties that a parallel algorithm must have so that a message-passing program implementing this algorithm will be able to attain high performance on a wide range of clusters. Also, the tool can provide good insight for such kind of parallel programs to know the performance issues. These properties can be used both as a guide in evaluating the potential performance of competing parallel algorithms as well as a framework to be used in developing effective message-passing parallel algorithms. The tools can assist the user in giving accurate information on performance and scalability issues of the programs.


    Concurrency     Decomposition     Load Balance     Overheads

    Maximize Concurrency     Equal Workload       Maximize Data Locality

    Minimize Frequency of Data Transfers

    Concurrency: In general, given a single task, it is possible to decompose and map it to processors in many different ways. Some of these yield better performance than others. Furthermore, different decompositions and mappings may yield good performance on different computers for a given problem. It is therefore crucial for programmers to understand the relationship between the underlying machine model (SIMD / MIMD) and the parallel program to develop efficient programs. The decomposition methods that help us discover tasks that can be done concurrently, methods for mapping these tasks to processors so that the processors are efficiently utilized, and methods for handling and reducing interactions among tasks so that the processors are all doing useful work most of the time. The type of parallelism that is result of identical operations being applied concurrently on different data items is called data parallelism. Besides the data parallelism, there are task parallelism and stream parallelism. Combinations of tasks and Data parallelism often allow us to utilize the coarse granularity inherent in task parallelism with the granularity in data parallelism with the fine granularity in data parallelism to effectively utilize a large number of processors.

    Decomposition : For many problems, the underlying task graph naturally contains sufficient degree of concurrency. Given such a graph, tasks can be scheduled on multiple processors to solve the problem in parallel. Unfortunately, there are many problems for which the task graph consists of only one task, or multiple tasks that need to be executed sequentially. For such problems, we need to split the overall computations into tasks that can be performed concurrently. The process of splitting the computations in a problem into a set of concurrent tasks is referred to as decomposition. A good decomposition should have the following steps.

  • It should lead to high degree of concurrency.
  • The interaction among tasks should be as little as possible.
  • Decomposing a problem effectively is of paramount importance in parallel computing. Without a good decomposition, we may not be able to achieve to a high degree of concurrency, making it impossible to really exploit parallelism and reduce the amount of time required in solving a problem. These techniques are broadly classified as recursive decomposition, data decomposition, exploratory decomposition, and speculative decomposition. Data decomposition is a powerful method for deriving concurrency in algorithms that operate on large data structures. In the first step, the data (or the domain) on which the computations are performed is partitioned, and in the second step, this data partitioning is used to induce a partitioning of the computational into tasks. These tasks generally perform similar operations on different data elements. Hence, data decomposition often leads to data level parallelism. The partitioning of data can be performed in three ways: Partitioning Output Data, Partitioning Intermediate Data, and Partitioning Input data.

    Load-balance : Given a set of tasks and a set of processors there are many ways of performing this mapping. In deciding which mapping is better we must focus on which one better achieves the following two objectives.

    • The amount of computation assigned to each processor is balanced so that some processor does not idle when others are executing tasks
    • The interactions among the different processors is minimized, so that the processors spend most of the time in doing work that is essential for solving the problem even on serial computers.


    Load balancing algorithms can be classified into two categories. Static and dynamic load balancing. Static load balancing techniques distributes the work among processors prior to execution of the algorithm. Dynamic load balancing techniques distribute the work among processors during the execution of the algorithm. Algorithms that can be load-balanced statically are in general easier to design and program. On the other hand algorithms that require dynamic load balancing are somewhat more complicated. However, there are problems in which we cannot statically partition the work among the processors. There are three general classes of problems that fall into this category. The first class consists of problems in which all the tasks are available at the beginning of the computation, but the amount of time required by each task is different and cannot be determined easily. The second class consists of problems in which tasks are available at the beginning but as the computation progresses, the amount of time required by each task changes. The third class consists of problems in which tasks are generated dynamically. In these class of problems, a static work partitioning is either impossible (e.g. first class) or can potentially lead to serious load imbalance problems (e.g. second and third classes). The only way to develop efficient parallel programs for these classes of problems is if we allow dynamic load balancing. That is during execution of the program, work is dynamically transferred among the processors that have a little work or no work.

    Overheads : (Idling Overheads & Data sharing Overheads) Given a set of tasks and a set of processors there are many ways of mapping onto the performance on parallel computer. One must focus on the mapping, which gives good results in a parallel algorithm that yields the highest performance. Ideally, user will like to develop a parallel program that is able to achieve linear speedups. The time that is required by the parallel algorithm but is not essential to the serial algorithm is referred to as overhead due to parallelization. Minimizing these overheads is critical in developing efficient parallel algorithms. Parallel algorithms can potentially incur three types of overheads. The first is due to idling, the second is due to data sharing and synchronization, and the third is due to extraneous computations. We describe some of these overheads in detail.

    Idling Overheads : Processors can become idle for three main reasons. The first reason is due to load imbalances, the second is due to computational dependencies, and the third is due to interprocessor information exchange and synchronization. Computations in which the work is equally distributed among the processors are called load balanced. If the work is not load balanced, then the processors with less work will finish first and stay idle while waiting for the processors with more work to finish with their computations.

    For some problems, we can easily develop parallel algorithms that are load-balanced; however, for other problems designing load-balanced algorithms significantly challenging. In simplest case, the amount of work performed by each task is the same. However, there are some problems in which the amount of computation per task is significantly different and it is not known prior. Also, for many problems, distributing the computations equally among the processors is not sufficient ensure that idling is eliminated. This is particularly true for computations in which there are dependencies between tasks.

    In fact, the loads before and after synchronization may be different which results in significant overheads. Minimizing idling among the processors is critical, since every time a processor becomes idle, it does absolutely nothing towards the solution of the problem.

    Data Sharing Overheads : The sharing of data often leads to additional overheads that are inherent to the parallel algorithms, They must be minimised as they directly affect the performance achieved by this algorithm. Depending on the underlying architecture, data sharing can take different forms. On distributed memory machines, data is initially partitioned among the processors. Explicitly sending and receiving messages achieve data sharing. In this framework, the cost of data sharing is rather explicit, and minimizing the data sharing overheads directly translates to reducing the communication overhead.

    On shared address-space machines, data sharing is often performed implicitly. Data is initially partitioned among the processors. In this type of architectures, the data is stored in the shared memory and every processor can read and write to them. Even though the data is accessible by all processors but data sharing overheads still exists. Data sharing overheads become worse when shared data needs to modify the data at a time and possibly no processor is reading the data while the modification is taking place. Developing algorithms that minimize data sharing overheads often involves intelligent task decomposition, task distribution, initial data distribution and proper scheduling of the data sharing operations, all of which play an important role for performance of a parallel program.

    Parallel algorithm can potentially perform two types of extraneous computations. The first type consists of non-essential computations that are performed by the parallel algorithm but the serial program does not require them. In a parallel algorithm, non-essential computations often arise either because of speculative execution or because of exploratory execution between the processors. In some applications, the processors may end up in doing redundant work. In general, performing frequent processor interactions to check whether or not similar work has been already generated can eliminate redundant computations.

    Maximize Concurrency : Concurrency provides an abstraction to simple concurrent for implementations software algorithms or applications that are naturally parallel. when multiple software threads of execution are running in parallel, it means that the active threads are running simultaneously on different hardware resources or processors of computing system. Parallel algorithms, irrespective of the programming language used to implement them, should be able to utilize effectively a large number of processors. Many times the algorithm used can limit the amount of parallelism that can be exploited. Often, simply having more processors performing the computations previously performed by a single processor can increase concurrency. Concurrency in Multi-threaded programs depends upon both hardware and software. Designing optimized way of managing the shared resources used at a given time is important. In other words, efficient resource utilization is the key to maximize the performance of computer resources.

    Equal Workload : Parallel algorithms should effectively utilize the hardware resources to be able to solve the given problem in the least amount of time. This directly implies that each processor must perform an equal amount of work. In parallel computing terminology this is referred to as the computation being load-balanced. Computation is load-balanced when each processor performs the same amount of computation, the same amount of communication, requires the same amount of memory, and spends minimal amount of time idling while it is waiting for messages. If different processors do different amount of work, then all processors have to wait until the processor with the most work finishes.

    Maximize Data Locality : Research in parallel algorithm design has developed a variety of techniques that can be often used to reduce the communication and increase the data-locality. One commonly used technique is to replicate data that is frequently accessed but not changed on all the processors. Data replication is very powerful and can significantly reduce the amount of communication. However, care must be taken to ensure that data-replication does not significantly increase the aggregate memory requirements of the algorithm. Another technique that often decreases the amount of time spent in communication is to increase the amount of work performed by each processor by using fewer processors. This approach essentially builds data locality by simply assigning more data elements to each processor. Note that this approach is in direct conflict with the objective of using a large number of processors and exploit as much concurrency as possible. Parallel algorithms and programs should be developed so that they can effectively operate on a wide range of processors.

    Minimize data Transfer : Selecting a parallel algorithm that minimizes the frequency of data transfers is preferable, even if it does not reduce the overall volume of data being transferred. This is usually achieved by first gathering the data that needs to be of time required to transfer the data. Transfer of data is also highly desired in sequential algorithm, which is similar to minimizing communication. On a serial computer, every time a word not residing in the cache is accessed, a predetermined number of words equal to the size of the cache-line are transferred from the main memory to the cache memory. Effective sequential algorithms must use most of these words otherwise significant bandwidth is wasted.

    Multi-Threaded Debugging



    Debugging Multi-Threaded Applications - Overview: Multi-threaded applications are inherently more complicated than single-threaded applications. The bugs may or may not surface when running under the debugger. Multi-threaded bugs are very sensitive to the timings of events in an application.

    Commercial multi-threaded tools such as Intel Thread Checker, Intel Vtune Performance analyzer, Sun Studio and Etnus - total View Debugger and Open Source Tools such as MPI Performance Analyzer may provides quite lot of clue to application developer to find the reasons for failure of the program as well as enhance the performance of the program on Multi-core processors. The common debugging tools and thread checker may assist the user to know abnormal behavior of multi-threaded program. Also, obtaining correct results for multi-threaded program is difficult due to common errors in multi-threaded program such as data race conditions and synchronization issues.

    Debugging : The common coding errors that cause the multi-threaded program to fail should be investigated. Two categories of bugs founding multi-threaded applications are synchronized bugs and performance bugs. Synchronization bugs include race conditions and deadlocks that cause unexpected and incorrect behavior. Performance bugs arise from unnecessary thread overhead due to thread creation or context switch overhead, and memory access patterns that are suboptimal for a given processor's memory hierarchy. There are debugging synchronization bugs that cause application to fail and information such as accessing the shared resources at the time of failure and at the time of access to shared resources.

    In most of the multi-threaded applications, the sequence of events that lead to a race condition or deadlock situation is critical in determining the root cause of multi-threaded bug. Using trace buffer, which is a mechanism for logging events that the developer is interested in monitoring, may help to identify the reasons of failure of the code. Tracepoints are used, as part of debugger and a tracepoint is similar with the concept of a breakpoint. A tracepoint is similar to a breakpoint except the instead of stopping program execution when the applications program counter reaches that point, the debugger takes some other action. This action can be printing a message or running other function. For POSIX threads, debugging can be accomplished by using the GNU Project Debugger (GDB). The GDB provides a number of capabilities for debugging threads as given below. Thread specific breakpoints, Listing of all threads in the system, the ability to switch between threads, the ability to apply commands to a group of threads, the ability to apply commands to a group of threads and automatic notification when new threads are created

    Thread Checker: It is necessary to use proper compiler flags to produce threaded-safe code and ensure that the results are sequentially correct before use the thread checker. Most of the commonly used thread checkers identify the following.

    • The thread checker usually collect the data and analyze the various common errors of multi-threaded program. The results of the analysis main focus on errors observed, warning messages based on trace data. It also provides a suggestion of possible causes for the threading errors, and suggested solutions with one-click diagnostic help.
    • The thread checker is used with the compile support on the target system. Some thread checkers can do analysis of applications that rely on dynamically linked libraries (DLLs) for which the source code is often unavailable.
    • When the thread checker is linked to the threaded program, it relies on instrumentation and usually runs slower than it does without instrumentation.
    • Thread checker gives an even better understanding about the specific variables on each line, functions, and context.
    • Identify the commonly errors in Multi-threaded programming environment such as Data races, and deadlocks that may be due to synchronization issues.
    • Identify the stalled threads and critical section - abonded locks.
    • Verification of results to compare the non-threaded and threaded results in the debugging environment of Multi-threaded programs.
    • Creates diagnostic messages for places in a program where its behavior in a multi-threaded environment is potentially nondeterministic.
    • Identify the threaded bugs to the source code line where the bug occurs.
    Support analysis of threaded programs that use OpenMP, POSIX. OpenMP programs are threaded programs can suffer from the same errors and performance problems as explicitly threaded applications,

    List of MPI Performance Tools

    Upshot (Public Domain Tool )



    URL http://www-fp.mcs.anl.gov/~lusk/upshot/
    Supported Languages Fortran 77/90/95, C, mixed Fortran and C
    Supported Platforms  Linux x86, SGI IRIX, Sun Solaris Sparc, IBM RS/6000 AIX, Windows NT x86
    Requirements for Installation A cluster of workstations with Linux /Unix OS with Fast Ethernet as interconnection network or any other proprietary interconnection network and system software, mpich-1.2.3

    Upshot is a parallel program performance analysis tool that comes bundled with the public domain mpich implementation of MPI. Upshot is a trace analysis and visualization package. By linking our source code with appropriate libraries we can obtain information on the time spent by our program in each MPI function. i.e trace events can be generated automatically by using MPE library -mpilog which comes with the freely available MPICH implementation and provides a number of useful facilities, including debugging, logging, graphics, and some common utility routines to create logfiles SLOG/ALOG/CLOG. Alternatively, the programmer can insert event-logging calls manually. Upshot is used to display logfiles ALOG (event based logging format).

    Features of Upshot:

    • Provides a unified view of the profiling data generated by each process
    • Modifies the time stamps of events on different processes so that all the processes start and end at the same time.
    • Provides a convenient form for visualizing the profiling data in a Gantt chart.
    • Upshot's display tools shows all the state data derived from logged events.
    • A state is defined by a starting and ending event of a processor in a single timeline.
    • A histogram facility allows the use of histograms to summarize information about state duration.

    Jumpshot  (Public Domain Tool )

      URL http://www-unix.mcs.anl.gov/mpi/mpich/
    Version MPICH 1.2.1, Jumpshot-3
     Supported languages  Fortran, C, C++
     Supported platforms AIX, Compaq Tru64 UNIX, HP-UX, IRIX, LINUX, Solaris, WindowsNT/2000


    Jumpshot is a Java-based visualization tool for doing postmortem performance analysis. Using Java instead of Tcl/Tk (that was used in some of the older visualization tools) improves the portability, maintainability and functionalities of the tools. There are several iterations of the tool. It uses MPE (Multi-Processing Environment) library is distributed with the freely available MPICH implementation and provides a number of useful facilities, including debugging, logging, graphics, and some common utility routines to create logfiles SLOG/ALOG/CLOG. Jumpshot is used to display logfiles SLOG (Scalable logfile format) which address data-scalability issue of the logfile for visualization

    Alog : An event-based logging format. Its corresponding viewer is either Upshot or Nupshot.The ALOG package is distributed as part of MPE, which is also distributed under MPICH.
    Clog : Another event-based logging format. A descendant of ALOG and BLOG, Its corresponding viewer is Jumpshot-2. The CLOG package is distributed as part of MPE, which is also distributed under MPICH

    Slog : A scalable logfile format. SLOG addresses the data-scalability issue of the logfile. It is very easy to generate a large CLOG file that renders the performance of Jumphsot-2 slow or even useless. SLOG allows the viewer to read only portion(s) of the logfile for visualization. One of the main goals of SLOG is to help users locate interesting portion(s) of the logfile for analysis.

    Features of Jumpshot:

    • Provides a Gantt chart display, which represents the various MPI calls and user-defined states for each process and arrows, and messages exchanged between those states.
    • Filtering of states is possible so that only those states that are of interested are displayed
    • The time-line view can be zoomed and scrolled.
    • Clicking on a rectangle or an arrow brings up a box that displays more detailed information about the state or message, respectively.

    Compiling and Linking MPI programs ( Makefile to use UPSHOT tools)

    C     Makefile.upshot_C

    Fortran     Makefile.upshot_F



    MPI Programs Using Tools on Message Passing Cluster


    Upshot

    Performance visualization of MPI program
    Hello_World.c that prints message "Hello World" using Upshot.

    a) Compile the Program using Makefile

         make  Hello_World

    b)  Create and Execute the program ( .pg file )

         Hello_World.pg

         local 0
        <machine name> 1  <path of the executable>
        <machine name> 1  <path of the executable>
        <machine name> 1  <path of the executable>

          ./ Hello_World     /* execution of  the program */

    c)  Convert clog to alog file.

          /home/betatest/mpich-1.2.4/mpe/bin/clog2alog Hello_World

    d) View the log file

         /home/betatest/mpich-1.2.4/mpe/viewers/upshot/bin/upshot Hello_World.alog

    This will popup a Setup window as shown in Figure 1.


    Figure 1. Setup window of Upshot

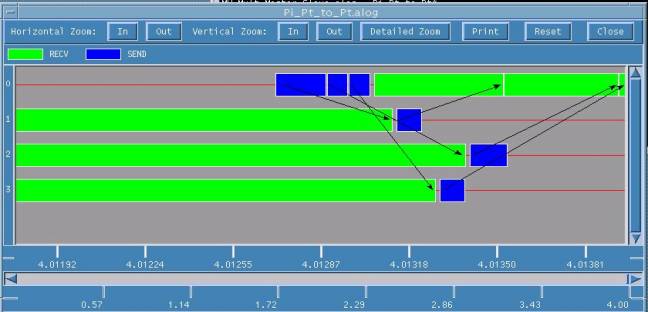

    Click " Setup" to load the selected log file, this will open a window displaying process operations in a gantt chart as shown in Figure 2.


    Figure 2. Gantt Chart of Upshot

    This window displays events which are aligned on the parallel time lines of individual processes, with processes on X-axis  and Time on Y-axis. Each state is represented in a different color. In this example, process with rank sends NumberOfIntervals to all processes using MPI_Send. Each process calculates some part of PI value and send the result to process with rank 0. Process with rank 0 receives all the partial sums from  other processes using MPI_Recv , adds them and display the final result. The above display shows that in this example, process with rank 2 takes more amount of time to receive NumberOfIntervals  from  root and process with rank 0 takes more amount of time to receive partial sum from process with rank 3.

    To visualize each state individually, click on the color of the state beside the state name on the taskbar at the top.

    This gives individual state displays in a histogram showing state duration by all processes as shown in Figures 3 and 4.



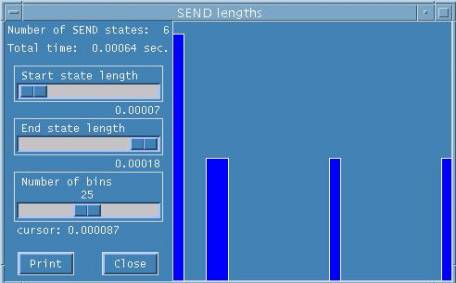

    Figure 3. MPI_Send state

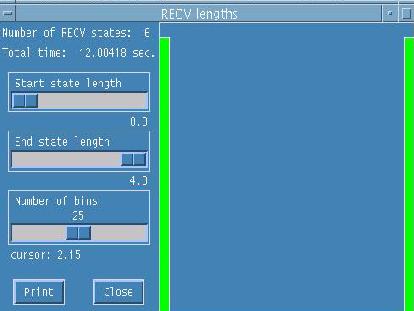

    Figure 4. MPI_Recv state.

    This also gives total time taken by all processes for that particular call and start state length and end state length.

    Xprofiler

    Profiler Visualization of MPI program Pi_Collective.cusing Xprofiler.

    a) Compile the Program

    mpcc  -pg  -o  pi  pi_collective.c

    b ) Execute the Program

        poe  pi  -procs  4  -hfile  ./hosts

    c ) Load profile files using Xprofiler

       xprofiler  pi  -s   gmon.out.0    gmon.out.1   gmon.out.2   gmon.out.3

    This will pop up the main GUI of Xprofiler as shown in Figure 5.



    Figure 5. Xprofiler main GUI

    In Figure 5.,Functions are represented by green, solid-filled boxes in the function call tree. The size and shape of each function box indicates its CPU usage. The height of each function box represents the amount of CPU time it spent on executing itself. The width of each function box represents the amount of CPU time it spent executing itself, plus its descendant functions.

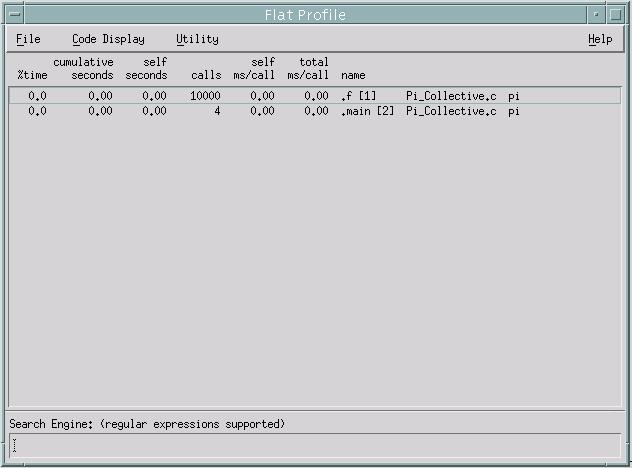

    The Flat Profile report as in Figure 6. shows you the total execution times and call counts for each function (including shared library calls) within your application.


    Figure 6. Flat Profile

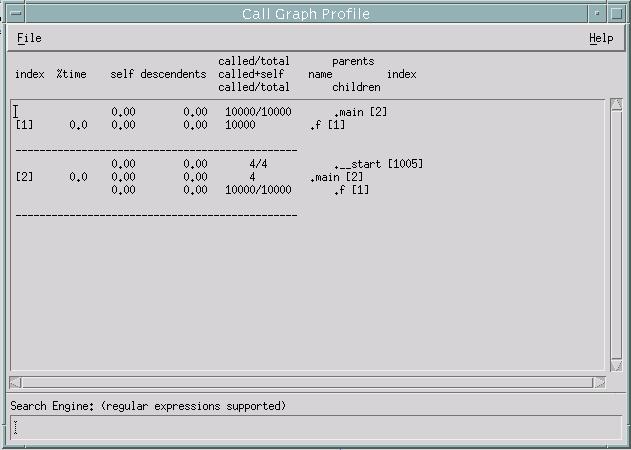

    The Call Graph Profile as shown in Figure 7.  gives functions of your application, sorted by the percentage of total CPU usage that each function, and its descendants, consumed.



    Figure 7. Call Graph Profile


    Other Tools Used on Parallel Processing Platforms

    Intel Thread Checker

    Intel Vtune Performance analyzer

    Intel Thread Profiler

    Sun Studio

    IBM Tools

    Etnus totalview Debugger

    MPI- Upshot, & Jumpshot

    PAPI (Public domain tools)

    Google Perf Tool
