hyPACK-2013 Mode 1 : Parallel Programming Using Fortran 90 & Fortran 95 languages

The key to make better and more effective use of computers lies in the programming languages, which are used to define the probe and to specify the method of its solution in terms which can be understood by a computer system. Most of these major languages are particularly suited to a particular class of problems, although this class is often very wide. Fortran is one such language, and is particularly well suited for almost all scientific and technological problems, as well as to a wide range of other problem areas - especially those with a significant numerical or computational content.

Fortran 90 & Fortran 95 is the latest version of the Fortran language and provides a great many more features than its predecessors to assist the programmer in writing programs to solve problems of a scientific, technological or computational nature. Furthermore, because of Fortran's pre-eminent position in these areas, programs written in Fortran 90 can readily be transferred to execute correctly, on other types of computers in a way that is Fortran has also been the dominant computer language for engineering and scientific applications in academic circles and has been widely used in other, less obvious, areas, such as musicology.

Fortran 90 allows access to all this experience, while adding new and more powerful facilities to the Fortran language. Fortran has evolved over 35 years in what has often been a pragmatic fashion, but always with the emphasis on efficiency and ease of use. However, FORTRAN 77 did not have many of the features, which programmers using other, newer, languages had come to find invaluable, Fortran 90, therefore, rectifies this situation by adding a considerable number of very powerful new features while retaining all of FORTRAN 77. In particular, many of the new features that are present in Fortran 90 will enable Fortran programs to be written more easily, more safely and more portably.

Fortran 90 program contains many of the basic building blocks and concepts. The first line of Fortran 90 program should be

PROGRAM ProgName

Every main program unit must start with a PROGRAM statement, which consists of the word PROGRAM followed by the name of the program. This name must follow the rules, which apply to all Fortran 90 names, namely

• It must begin with a letter - either upper or lower case.
• It may only contain the letter A-Z and a-z, the digits 0-9, and the underscore character _.
• It must consist of a maximum of 31 characters

In Fortran 90, names and keywords, upper and lower case letters are treated as identical, but can be used by the programmer to assist in the readability of the program. The name of the program should be chosen to indicate what the program does and should be different from any other names used for other purposes elsewhere in the program.

Also that there may be any number of blanks between successive words in a Fortran 90 statement, as long as there is at least one, but they will be treated as though there was only one by the compiler when it is analyzing the program. It is not necessary to include blanks between successive items in a list separated by commas or other punctuation characters, although they may be included if desired to make the program easier to read. However, it is not permitted to include spaces within a Fortran keyword or a user-specified name, except when using the older fixed form style of programming.

This is a special statement, which is used to inhibit a particularly undesirable feature of Fortran, which is carried over from earlier versions of Fortran. It should always be placed immediately after the PROGRAM statement.

! This program calculates the equation of a circle passing
! through three points

These two lines are comments.

A comment is a line, or part of a line, which is included purely for information for the programmer or anyone else reading the program; it is ignored by the compiler. A comment line is a line whose first non-blank character is an exclamation mark, !; alternatively, a comment, preceded by an exclamation mark, may follow any Fortran statement or statements on a line. User shall normally use comment lines in example programs, but will also use trailing comments where these are more appropriate.

! Variable declarations
REAL :: x1, y1, x2, y2, x3, y3, a, b, r

The first of these lines is a comment which indicates that the line following contains one or more variable declarations. It is not obligatory, but such comments help a reader to follow the program more easily.

PRINT *, "please type the coordinates of three points"
PRINT *, "in the order x1, y1, x2, y2, x3, y3"

The above two statements are called executable statements. These particular executable statements are known as list-directed output statements and will cause the text contained between the quotation marks (or quotes) to be displayed on your computer's default output device, probably the screen.

Read *, x1, y1, x2, y2, x3, y3 ! Read the three points

This statement is clearly closely related to the previous two executable statements and has a very similar structure. It is called a list-directed input statement and will read information from the keyboard, or other default input device.

CALL calculate_circle (x1, y1, x2, y2, x3, y3, a, b, r)

The CALL statement causes the processing of the main program unit to be interrupted and processing to continue with the procedure, or subroutine, whose name is given in the statement. The items enclosed in parentheses following the procedure name are known as arguments and are used to transmit information between the main program and the procedure.

PRINT *, "The center of the circle through these points is &
& (",a,",",b,")"

The first PRINT statement, however, incorporates a new concept - that of continuation line. If the last non-blank character of a line is an ampersand, then this is an indication that the statement is continued on the next line. There are two cases here. If, as in this case, the ampersand occurs in character context, that is, in the middle of a character string enclosed quotation marks (or one enclosed in apostrophes), then the first non-blank character on the next line must also be an ampersand, and the character string continues from the character after that ampersand. Thus the two lines above are identical to the single line

PRINT *,"The center of the circle through these points is (", 1, ", ", b, ")"

(where the small type is used here solely to fit the whole statement on a single line).

The other situation is where the first ampersand does not occur within character string enclosed in quotes or apostrophes. In this case there are two possibilities. The first is that, as in the character string case, the first non-blank character of the next line is an ampersand, in which case the effect is just as before. However if the first non-blank character on the next line is not an ampersand then the effect is as if the whole of that line follows the previous one (excluding the ampersand). Thus, for example, the statement discussed earlier could also be written

CALL calculate_circle (x1, y1, x2, y2, x3, y3, & &a, b, r)

which would be identical, as far as the compiler was concerned, with the original version, or

CALL calculate_circle (x1, y1, x2, y2, x3, y3, & a, b, r)

END PROGRAM ProgName

The final statement of a program must be an END statement. In this context it can take three forms:

END or

END PROGRAM or

END PROGRAM ProgName

Where name, if present, must be the same as the name on the corresponding PROGRAM statement. In general it is both a good practice, and also makes the program easier to follow, to use the third, full, form of the statement. As might be expected, execution of the END statement brings the execution of the program to an end, and control is returned to the computer's operating system.

The overall structure of a Fortran 90 main program unit is as below :

PROGRAM name
Specification statements
.
.
Executable statements
.
.
END PROGRAM name

Several features characterize the data parallel programming model. Some of them are quite different from those in shared-variable and message passing models. The important features are listed below.

• Single threading: From the programmer's viewpoint, a data-parallel program is executed by exactly one process, with a single thread of control. In other words, as far as control flow is concerned, a data-parallel program is just like a sequential program. There is no control parallelism.

• Parallel operations on aggregate data structure: A Single step (Statement) of a data-parallel program can specify multiple operations that are simultaneously applied to different elements of an array or other aggregate data structure.

• Loosely synchronous: There is an implicit synchronization after every statement. This statement-level synchrony is loose, compared with tight synchrony in an SIMD system that synchronizes after every instruction.

• Global naming space: All variables reside in a single address space. All statements can access any variable, subject to the usual variable scope rules. This is a contrast to the message-passing approach, where variables may reside in different address space.

• Implicit interactive: There is an implicit barrier after every statement, no need for explicit synchronization in a data-parallel program. Communication is implicitly done by variable assignment.

• Implicit data allocation: The programmer does not have to explicitly specify how to allocate data. The programmer may give the compiler hints about data allocation to improve data locality and reduce communication.

Fortran 90 standard has significantly extended the array capability of Fortran 77. In Fortran 90, the entire array or a portion of an array (called an array section) may appear as an operator.

Array Sections: All intrinsic operators and functions may be applied to whole arrays or array sections, operating element-wise. It is also possible to perform parallel array operations that are not element-wise, through intrinsic functions.

For a given array A, the results of the above code are

• Single threading and loosely synchronous: The code consists of three statements S1, S2, S3, which are executed as a single thread, one after another, Statement S2 (S3) does not start until all operations of S1 (S2) finish.

• Parallel array operations: A statement may contain multiple operations on array elements, which are executed simultaneously. Statement S1 assigns 0 to all four elements of array C. Statement S2 assigns four elements of array A to array B. The where statement S3 assigns array C according to the condition (B-6) > 0. Only those elements of C where the condition is true are modified. The two elements in the first row of C are not changed, because the condition is false.

• Global naming space: All array variables and elements are visible to all statements. There is no notion of processor private data.

Array Shaping: The number of dimensions of an array is called its rank. The variables A, V and C in Example 6.1 are all rank-2 arrays.

An array section is selected by using a three-tuple L:U:S (called subscript triplet) for each array dimensions, where L, U, and S are the lower-bound, the upper bound, and the stride of the array section. Each of L, U, and S can be any scalar expression, but the stride expression must be zero. When the stride part is missing, a default stride of 1 is assumed. Thus, A(1:3:2, 2:3) is the array section formed by the first and the third rows and the second and the third columns of an array A.

When several array or array section appear in a statement, they must be conformable. For instance, in an array addition X +Y, the two arrays must have the same elements. Thus 2 x 3 arrays have the same shape, but a 2 x 3 array and a 3 x 2 array do not. When an operator is applied to a scalar s and an array X, the scalar s is first expanded to an array of the same shape X, with all elements being s. This is shown in example 1 where B-6 is computed in the following way.

Besides element-wise array operation discussed above, Fortran 90 provides additional intrinsic functions to manipulate arrays as a whole. We discuss several below:
Matrix Operations: Fortran 90 provides several operators that operate on entire arrays. For instance, a matrix X can be transposed by calling transpose(X). The matrix multiplication function matmul multiplies an m x n array X by an n x p array Y and returns an m x p array. An example is the statement Z = matmul(X,Y), where Z must be an m x p array.

Array Construction: A rank-1 array can be created through an array constructor, which is a sequence of values separated by commas and delimited by "(/" and ")/". For instance, a three-element vector X can be constructed by assignment X=(/1,3,5) or, equivalently, by X=(/1:5:2/).

Another way to create an array is to use the intrinsic function spread, which constructs a new array by adding an extra dimension and copying the operand.
For instance, the function spread ((/ 1,3,5/), 1, 3) makes 3 copies of (/1,3,5/), and spreads them along dimension 1 (the row dimension). The function spread ((/1,3,5/), 2,2) makes 2 copies of (/1,3,5/), and spreads them along dimension 2 (the column dimension). The results are shown as follows:

Several examples to illustrate how to apply these functions are as below:

The DIM argument is used to restrict the reduction along the given dimension. The MASK argument restricts the reduction to those elements where the condition set by MASK is true. Thus SUM(A,1) = [5 7 9 ], because A is sum-reduced along the columns. COUNT(A,A>2)=4 since there are four elements that are greater than 2. MAXLOC(A,A<5)=[2 1 ] since the location(subscripts) of the maximum element that is less than 5 in row 2 and column 1.

Array conformability has a different meaning when parallel intrinsic functions are used. For instance, when two matrices are multiplied using the intrinsic function Z=MALMUL(X,Y), conformability implies that the second dimension of X must have the same size as the first dimension of Y. Thus X and Y are conformable if X is a 2 x 3 array and Y a 3 x 2 array. They are not conformable if both are 2 x 3 arrays.

We give one example to show that Fortran 90 facilitates the writing of simple and clean programs for regularly structured parallel computing applications. With Fortran 90, programmers need not worry about process management, communication, data allocation, and synchronization issues, which are all left to the compiler. Fortran 90 provides more features and functionalities than Fortran 77. For some applications, the Fortran 90 programs can be shorter and simpler than corresponding Fortran 77 codes.


Fortran 90 program for Jacobi relaxation is shown in the example 6.2 below. The main computation is contained in the do while loop. The sequential nature of the loop simply says that the iteration steps should be performed one by one.

Parallel computation is possible within each iteration. Because of the array capability of Fortran 90, only three statements are needed. Note that the statement labels S1, S2 and S3 are not part of the code. They are used for discussing the code.

Example 2  Jacobi relaxation in Fortran 90

Parameter n=1024
real A(n,n), x(n), b(n), error, Temp(n), DiagA(n)
integer i
error = SomeLargeValue
initialize A, x, and b

do i = 1, n
   DiagA(i) = A(i,i)
End do
    do while (error > ErrorBound)
    S1 : Temp = (b - MATMUL(A,x))/DiagA
    S2 : x = Temp + x
    S3 : error = SUM ( Temp * Temp)
end do

We can make several observations: The code is simple and concise, very close to the algorithm. Using intrinsic operator SUM and MATMUL simplifies coding. Fortran 90 is not very flexible, compared to HPF, to be discussed shortly. For instance, the Fortran 90 code in Example 6.2 needs a do loop to get the array DigA for the diagonal elements of A.

High-Performance Fortran (HPF) is a language standard, designed as a superset (extension) of Fortran 90 to meet the following goals

• Support for data-parallel programming
• Top performance on MIMD and SIMD computers with non uniform access costs
• Capability of tuning code for various architectures

To achieve the first goal, HPF introduces a FORALL construct, an INDEPENDENT directive, and some additional intrinsic functions. These new language features allow HPF to be more flexible in specifying more general array sections and parallel computation patterns than Fortran 90.

To meet the second goal, HPF offers directives such as ALIGN and DISTRIBUTE, which enable the user to tell the compiler how data should be allocated among processors, so that communication overhead is minimized and workload is evenly divided.

HPF also has features targeted toward the third goal, such as EXTRINSIC procedures, which allow a user to take advantage of low-level features of a specific architecture. In this section, we discuss the HPF features for the first two goals, which are the most important.

HPF provides four mechanisms for the user to specify data parallelism. They are array expressions and assignments, array intrinsic functions, the FORALL statement, and the INDPENDENT directive. They first two already appear in Fortran 90, but HPF adds many more intrinsic. The FORALL and the INDEPENDENT are new features.
The FORALL Construct A FORALL statement of HPF is similar to a Fortran 90 array assignment, but more flexible. Let us consider the following example code:

FORALL (i=2:5, X(i) > 0) X(i) = X(i-l) + X(i+l)

The "i = 2:5" part is called a forall triplet spec in HPF, where i is the index variable. The subscript triplet 2:5 is equivalent to 2:5:1, with lower bound 2, upper bound 5, and a default stride of 1. The forall triplet spec determines a set of valid index value3, {2,3,4,5}.

The X(i) > 0 part is a scalar valued expression, called the mask. The set of active index values is a subset of the valid index values, such that the mask is true.

Assume initially X = [1, -1, 2, -2, 3, -3] in the above FORALL statement. Then the active set is {3,5}, since X(2) = -1 < 0 and X(4) = -2 < 0. After the active index value set is determined, all the expressions in the assignment are computed simultaneously, in any order, for all active index values 3 and 5:

X(3-l) + X(3+l) evaluates to -1+(-2) = -3
X(5-l) + X(5+l) evaluates to -2+(-3) = -5

Then for all active index values (3 and 5), the left-hand side array elements are assigned with the corresponding right-hand side values simultaneously. The other elements of the left-hand side array are not changed. Thus the resulting array X after the above FORALL is executed is X[l,-1,-3, -2, -5, -3].

There may be more than one forall-triplet specs in a FORALL statement. Then combinations of index values are used. For instance, the FORALL statement

FORALL(i=l:2, j=l:3, Y(i,j)>0) Z(i,j) = I/Y(i,j)

is equivalent to the Fortran 90 statement

where

(Y(l:2, 1:3) > 0) Z(1:2, 1:3) = 1/Y(1:2, 1:3).

Many parallel computations can be easily specified using FORALL but not in Fortran 90. The FORALL statement

FORALL(i=l:4, j=l:5, k=l:6) X(i,j,k) = i+j-k

can be expressed equivalently by the following Fortran 90 array assignment:

X = SPREAD( SPREAD ( (/l :4 /), 2, 5), 3, 6)
& + SPREAD( SPREAD ( (/l :5 /), 1, 4), 3, 6)
& - SPREAD( SPREAD ( (/l :6 /), 1,4), 2, 5)

Note that the Fortran 90 code is much more difficult to understand and implement efficiently. As another example, the simple FORALL statement

FORALL( i=l :n) XQ, j(i)) = Y(i)

cannot be expressed with a single array assignment in Fortran 90.

Somemes a user may want to include several assignments in a FORALL statement. This can be accomplished with a more general form of the FORALL statement, called FORALL construct, or multi-statement FORALL, as illustrated by the following code:

FORALL (i=l :n)
A(i)=sin(B(i))
C(i)=sqrt(A(i)*A(i))
D(i)=B(i)+2
END FORALL

The second assignment begins only after all the computations (there are n evaluations of the sine function) in the first assignment finish. Thus array A used in the second assignment has the new values computed in the first assignment

Similarly, the third statement starts only after the second finishes, even though it does not seem to use array C computed in the second assignment. It is possible that C is an alias of  B (through EQUIVALENT). Then array B uses the new value of C computed in the second assignment.

Note that functions and procedures can be called in a FORALL statement. The only requirement is that they be pure, that is, side-effect-free. HPF offers a list of syntactical restrictions to help the compiler determine whether a function or procedure is pure or not. For instance, one such restriction is that no global variable appear as the left-side of an assignment.

!HPF$ INDEPENDENT              !HPF$ INDEPENDENT

FORALL(i=l:2)                   doi=l,2
   A(i)=foo(B(i))                  A(i)=foo(B(i))
  C(D(i))=log(E(i))                C(D(i))=log(E(i))
END FORALL                      end do

    (a)                              (b)

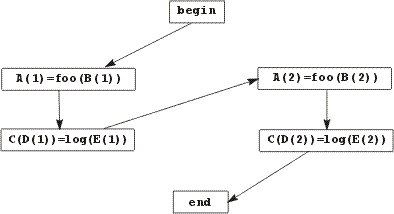

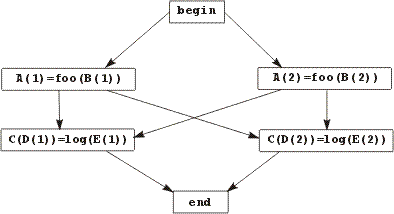

Consider Example 3(a), where the INDEPENDENT directive is absent from the FORALL statement. Because of a loose synchrony, both instances of the first statement A(i) == foo(B(i)) must be finished before any of the second statement C(D(i)) = log( E(i)) can start. However, the FORALL postulates that both instances of each statement can be executed in parallel. We can visualize that there is an implicit barrier between the two statements.

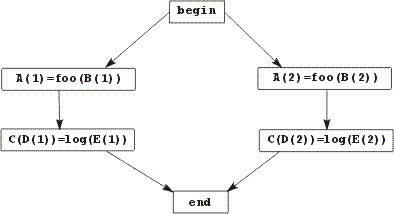

When the INDEPENDENT directive is added, the compiler knows then that the barrier synchronization can be removed. Thus we get Fig. 5.3(b). Note that the compiler cannot perform this optimization without the help of the INDEPENDENT directive, because it cannot tell whether the subroutine foo() is pure, and whether there is an alias. Visualization of the INDEPENDENT directive is discc=ussed below.

Data mapping refers to the allocation of data to processors, which should be done to achieve two goals:

• The interprocessor communication is minimized;
• The workload is evenly distributed among available processors

An HPF compiler can use the owner-compute rule to distribute workload: computation associated with a data item is performed by the processor, which, owns that data item. Therefore, data indirectly determines workload distribution.

The data mapping realized by the above code is shown in Example 6.4. Data mapping in HPF is realized in two phases: logical mapping and physical mapping. Logical mapping is specified by the user through compiler directives, which map data to a number of virtual nodes (abstract processors).

Physical mapping maps these virtual nodes to physical nodes (processors) in a real computer. Physical mapping is done by the system and is transparent to the user. A virtual node is mapped to only one physical node. In other words, all data allocated to the same virtual node must be mapped to the same physical node.

Logical mapping consists of two steps: alignment and distribution. Referring to the above code, the PROCESSOR directive

informs the compiler that this application wishes to use a linear array of four virtual nodes, shown N1, N2, N3, and N4 in Example 6.4.

The name of this node array is N. HPF allows the specification of the set of virtual nodes as any rectilinear arrangement. For instance, the compiler directive.

specifies 20 nodes arranged as a 4 x 5 mesh, and the directive.

specifies 120 nodes arranged as a 4 x 5 x 6 mesh.

We summarize below a number of practical issues in using either Fortran 90 or HPF to exploit data parallelism in user applications. Users must learn how to deal with these issues before developing efficient applications on parallel computers.

Parallelism Issues Because of single threading, a data-parallel program logically has only one process, although multiple nodes can execute the same program on different data subdomains. Most parallelism issues are taken care of by the system. The user does not have to worry about creating, terminating, and grouping processes, or how many processes are running the program.

The statement-level data parallelism and the where construct allow different nodes to execute different instructions at the same time. Thus both SIMD and SPMD computations are supported, but not MPMD. The degree of parallelism in a program varies dynamically when different array assignments are used or different FORALL statements are executed.

Interaction Issues Because of loose synchrony, most interaction issues are sidestepped in data-parallel programming. There is no interaction operation in Fortran 90 or HPF, except the intrinsic functions for reduction.

Fortran 90 provides nine intrinsic functions to support reduction, but no support for prefix, descend, or sorting. It does not support user-defined reduction operation, either. HPF extends Fortran 90's capability through a set of (nonintrinsic) library routines. These include additional reduction functions, scan functions, and sorting functions, among others.

Interactions in data-parallel programs are cooperative. There is only one interaction mode: statement-level loose synchrony. All operations of a statement must be finished before any operation of the next statement can start. Communication is implicit, through array assignment. Both regular and irregular communication patterns can be specified by different array index expressions, as shown below:

!HPF$ ALIGN A(i) WITH B(i)
A(i) = B(i-1 ) !a regular left-shift
A(V(i)) = B(i) ! an irregular communication, the pattern is
! specified through an index array V

HPF provides a set of array-mapping directives to minimize communication overhead by exploiting data locality. The most important directives are PROCESSOR, ALIGN, and DISTRIBUTE. HPF also provides dynamic REALIGN and REDISTRIBUTE statements to accommodate changing communication patterns. These data mapping constructs are more effective if the communication patterns are regular. Semantic Issues: Due to single threading and loose synchrony, data-parallel programs have clean semantics. It is impossible to have deadlock or livelock. The only possible non- termination is due to infinite looping, just as in a sequential program. Fortran 90 and HPF data-parallel programs are similar to sequential Fortran 90 programs with respect to the structuredness, compositionality, and correctness issues. There is no additional complexity introduced by parallelism.



Data-parallel programs are determinate as long as the single assignment rule is satisfied: Any array element is assigned at most once in a statement. Any program that does not satisfy the single-assignment rule is deemed illegal in Fortran 90 and HPF.

Programmability : Because Fortran 90 and HPF are a high-level language standard, any conforming program should have good portability. Because most parallelism, interaction and semantic issues are taken care of by the system, and because of their simple semantics
Fortran 90 and HPF are easy to use.

So why has it not dominated practical parallel programming? Why are still people investigating and using other approaches? The main reason is that the current Fortran 90 and HPF language specifications have severe limitations on generality and efficiency.

Fortran 90 and HPF do not support the exploitation of control parallelism. They are not well suited in supporting algorithmic paradigms such as asynchronous iteration, work queue, and pipelining, or applications such as database.

There are several on-going research efforts that alleviate the generality and efficiency deficiency of Fortran 90 and HPF. We group these efforts into two categories: those that are similar to HPF but offer more flexibility, and those that are based on non-Fortran languages. We briefly introduce these approaches below, along with a review of the Connection Machine approaches to data parallelism.

In the first category, we mention four efforts: Fortran 95, Fortran 2001, Fortran D and Vienna Fortran. The first two extend Fortran 90, while the others extend HPF.

Two extensions to Fortran 90 are developed by joint committee of two international standards bodies: the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). These extensions are informally known as Fortran 95 and Fortran 2001.

Fortran 95, published in 1997, is a relatively minor enhancement and correction of Fortran 90. The major new features in Fortran 95 are the FORALL statement and the FORALL construct, PURE and ELEMENTAL procedures, and structure and pointer default initialization.

Fortran 90 Tools :

Some of the tools available for debugging and profiling of Fortran 90/HPF programs are listed below :

Interprocedural information is invaluable for investigating and `understanding' programs, especially large ones. It is particularly useful when modifying or further developing a code It is an interactive tool that provides interprocedural information about Fortran programs, such as:

call graphs show the calling relationships between program units;

traces of variables shows where and how a variable is used throughout the program;

common block partitioning and usage shows how common blocks are partitioned into variables in each program unit, and how those variables are used in that unit and its descendents;

procedure references and argument associations shows the location and actual arguments of every call to a particular procedure.

Interprocedural information is invaluable for investigating and `understanding' programs, especially large ones. It is particularly useful when modifying or further developing a code. It is available in the public domain http://www.vcpc.univie.ac.at/information/software/ida/

High-level performance analysis tools coupling dynamic performance data with compile-time information for data parallel programs. SvPablo is a graphical user interface for instrumenting source code and browsing runtime performance data. It was designed to provide performance data capture, analysis, and presentation for applications executing on a variety of sequential and parallel platforms and written in a wide range of languages. This release supports interactive automatic and instrumentation of ANSI C, Fortran 77, and Fortran 90 programs and automatic instrumentation of HPF programs. In addition, it also provides interface with Autopilot. It is available at  http://www-pablo.cs.uiuc.edu/Software/SvPablo/svPablo.htm

The simple Fortran 90 program which prints "Hello World"  message when executes is explained below.

We describe the features of the entire program and describe the program in details. First few lines of the program explain variable definitions, and constants.

The following segment of the code explains these features. The description of program is as follows:

Every main program unit must start with a PROGRAM statement, which consists of the word PROGRAM followed by the name of the program. IMPLICIT NONE is a special statement, which is used to inhibit a particularly undesirable feature of Fortran, which is carried over from earlier versions of Fortran. It should always be placed immediately after the PROGRAM statement.

program HelloWorld
IMPLICIT NONE
character (len=12) :: String
String = "Hello World!"

String is a character variable of length 12.

program HelloWorld print*,String

The above statement is called executable statement. This particular executable statement is known as list-directed output statement and will cause the text contained between the quotation marks (or quotes) to be displayed on your computer's default output device, probably the screen.Ending of Fortran 90 program. This is the final statement of a program.

program HelloWorld end program HelloWorld

Simple MPI parallel prorgam using f90 to print "hello_world.f90"

program main

USE   mpi

integer    ::   MyRank, Numprocs
character*12    ::   Send_Buffer, Recv_Buffer
integer    ::   Destination, iproc
integer    ::   tag
integer   ::   Root, Send_Buffer_Count, Recv_Buffer_Count
integer   ::   status(MPI_Status_Size)

data   Send_Buffer/'Hello World'/

!.............MPI   initialization....
  call   MPI_Init(ierror)
  call   MPI_Comm_rank(MPI_Comm_World, MyRank, ierror)
  call   MPI_Comm_size(MPI_Comm_World, Numprocs, ierror)

  Root   =   0
  tag   =   0
  Send_Buffer_Count   =   12
  Recv_Buffer_Count   =   12

if(MyRank   .NE.   Root)   then
    Destination   =   Root
    call   MPI_SEND(Send_Buffer, Send_Buffer_Count, MPI_CHARACTER, Destination, tag, MPI_COMM_WORLD, ierror)
else
  do   iproc   =   1,  Numprocs-1
    call   MPI_RECV(Recv_Buffer, Recv_Buffer_Count, MPI_CHARACTER, iproc, tag, MPI_COMM_WORLD, status, ierror)
    print*,   Recv_Buffer, iproc
    enddo
endif

call   MPI_FINALIZE( ierror )
stop
end

The basic MPI library calls used in the above codes can be used to write MPt programs. The above program is frequently called single program multiple data (SPMD) programming.

Example Program (MPI C ) / MPI Fortran77 (MPI f77 ) / MPI Fortran90 (MPI f90) Simple MPI C program "get_start.c "

The first C parallel program is hello_world program, which simply prints the message Hello _World . Each process sends a message consists of characters to another process. If there are p processes executing a program, they will have ranks 0, 1,......, p-1. In this example, process with rank 1, 2, ......, p-1 will send message to the process with rank 0 which we call as Root. The Root process receives the message from processes with rank 1, 2, ......p -1 and print them out. The simple MPI program in C language prints hello_world message on the process with rank 0 is explained below.

We describe the features of the entire code and describe the program in details. First few lines of the code explain variable definitions, and constants. Followed by these declarations, MPI library calls for initialization of MPI environment, and MPI communication associated with a communicator are declared in the program. The communication describes the communication context and an associated group of processes. The calls MPI_Comm_Size returns Numprocs the number of processes that the user has started for this program. Each process finds out its rank in the group associated with a communicator by calling MPI_Comm_rank . The following segment of the code explains these features. The description of program is as follows:

#include
#include "mpi.h"
#define BUFLEN 512
int main(argc,argv)
int argc; char *argv[];
{
int MyRank; /* rank of processes */
int Numprocs; /* number of processes */
int Destination; /* rank of receiver */
int source; /* rank of sender */
int tag = 0; /* tag for messages */
int Root = 0; /* Root processes with rank 0 */

char Send_Buffer[BUFLEN] /*Storage for message */
char Recv_Buffer[BUFLEN]; /*Storage for message */

MPI_Status status; /* returns status for receive */
int iproc,Send_Buffer_Count,Recv_Buffer_Count;

MyRank is the rank of process and Numprocs is the number of processes in the communicator MPI_COMM_WORLD

Now, each process with MyRank not equal to Root sends message to Root, i.e., process with rank 0. Process with rank Root receives message from all processes other than him and prints the message.

After, this MPI_Finalize is called to terminate the program. Every process in MPI computation must make this call. It terminates the MPI "environment".

/* ....Finalizing the MPI....*/
MPI_Finalize();
}

# mpif90 -o <name of executable> <programname>

For example to compile a simple Hello World program user can type

# mpif90 -o HelloWorld F90_Hello_World.f90



(B) Using Makefile

For more control over the process of compiling and linking programs, you should use a 'Makefile '. You may also use some commands in Makefile particularly for programs contained in a large number of files. The user has to specify the names of the program and appropriate paths to link some of the libraries required for Fortran 90 in the Makefile

To compile and link a Fortran 90 program, you can uncomment one of the lines in the Makefile consisting of OBJECTS parameter and use the command

make -f Makefile_F90

For the Hands-On Session programs, the application user can use Makefile_F90.

To execute a Sequential Fortran 90 program simply type the name of executable on command line.

< Name of executable>

To execute a MPI Fortran 90 program use mpirun command.

mpirun -n <Number of Processors> < Name of executable>

For example to execute a simple Hello World program user can type

run

The output should look similar to below.
