Module 7 : MPI programs on Dense Matrix Computations - Parallel Programs on simple algorithms for Graph theory computations, Coloring a graph, and sorting and execute on Message Passing Cluster or Multi-Core Systems that support MPI library.
Example 7.1

Write MPI program for implementation of Sample Sorting Algorithm

Example 7.2

Write Simple MPI program for implementation of coloring a sparse graph.(Assignment)

Example 7.3

Write an efficient MPI program for implementation of coloring a sparse graph.(Assignment)

Example 7.4

Efficient Parallel formulation for implementation Dijkstra's Single source shortest path Algorithm .(Assignment)


(Source - References : Books     Multi-threading     - [MC-MPI-02], [MCMPI-06], [MCMPI-07], [MCMPI-09], [MC-MPI10], [MCMPI-11], [MCMTh-12],[MCBW-44], [MCOMP-01])

Example 7.1:

Write MPI program to implement Sample Sorting Algorithm
(Download source code : mpic-samplesort.c )

  • Objective
  • Write a MPI program to sort n integers, using sample sort algorithm on a p processor of MPI cluster. Assume n is multiple of p.

  • Description
  • There are many sorting algorithms which can be parallelised on various architectures. Some sorting algorithms (bitonic sort, bubble sort, odd-even transposition algorithm, shellsort, quicksort) are based on compare-exchange operations. There are other sorting algorithms such as enumeration sort, bucket sort, sample sort that are important both practically and theoretically. First, we explain bucket sort algorithm and we use concepts of bucket sort in sample sort algorithm.


  • Sequential and parallel bucket sort algorithms
  • Bucket sort assumes that n elements to be sorted are uniformly distributed over an interval (a, b). This algorithm is usually called bucket sort and operates as below.

    The interval (a,b) is divided into m equal sized subintervals referred to as buckets . Each element is placed in the appropriate bucket. Since the n elements are uniformly distributed over the interval (a,b), the number of elements in each bucket is roughly n/m. The algorithm then sorts the elements in each buckets, yielding a sorted sequence.

    Parallelizing bucket sort is straightforward. Let n be the number of elements to be sorted and p be the number of processes. Initially, each process is assigned a block of n/p elements, and the number of buckets is selected to be m=p. The parallel formulation of bucket sort consists of three steps.

    In the first step, each process partitions its block of n/p elements into p subblocks on for each of the p buckets. This is possible because each process knows the interval [a,b] and thus the interval for each bucket.

    In the second step, each process sends subblocks to the appropriate processes. After this step, each process has only the elements belonging to the bucket assigned to it.

    In the third step, each process sorts its bucket internally by using an optimal sequential sorting algorithm.

    The performance of bucket sort is better than most of the algorithms and it is a good choice if input elements are uniformly distributed over a known interval.

  • Sequential and parallel sample sort algorithms
  • Sample sort algorithm is an improvement over the basic bucket sort algorithm. The bucket sort algorithm presented above requires the input to be uniformly distributed over an interval [a,b]. However, in many cases, the input may not have such a distribution or its distribution may be unknown. Thus, using bucket sort may result in buckets that have a significantly different number of elements, thereby degrading performance. In such situations, an algorithm called sample sort will yield significantly better performance.

    The idea behind sample sort is simple. A sample of size s is selected from the n-element sequence, and the range of the buckets is determined by sorting the sample and choosing m-1 elements from the results. These elements (called splitters) divide the sample into m equal sized buckets. After defining the buckets, the algorithm proceeds in the same way as bucket sort . The performance of sample sort depends on the sample size s and the way it is selected from the n-element sequence.
    How can we parallelize the splitter selection scheme? Let p be the number of processes. As in bucket sort , set m =p; thus, at the end of the algorithm, each process contains only the elements belonging to a single bucket. Each process is assigned a block of n/p elements, which it sorts sequentially. It then chooses p-1 evenly spaced elements from the sorted block. Each process sends its p-1 sample elements to one process say Po. Process Po then sequentially sorts the p(p-1) sample elements and selects the p-1 splitters. Finally, process Po broadcasts the p-1 splitters to all the other processes. Now the algorithm proceeds in a manner identical to that of bucket sort . The sample sort algorithm has got three main phases. These are:

    1. Partitioning of the input data and local sort :

    The first step of sample sort is to partition the data. Initially, each one of the p processes stores n/p elements of the sequence of the elements to be sorted. Let Ai be the sequence stored at process Pi. In the first phase each process sorts the local n/p elements using a serial sorting algorithm. (You can use C library qsort() for performing this local sort).

    2. Choosing the Splitters :

    The second phase of the algorithm determines the p-1 splitter elements S. This is done as follows. Each process Pi selects p-1 equally spaced elements from the locally sorted sequence Ai. These p-1 elements from these p(p-1) elements are selected to be the splitters.

    3.Completing the sort :

    In the third phase, each process Pi uses the splitters to partition the local sequence Ai into p subsequences Ai,j such that for 0 <=j < p-1 all the elements in Ai,j are smaller than Sj , and for j=p-1 (i.e., the last element) Ai,j contains the rest elements. Then each process i sends the sub-sequence Ai,j to process Pj . Finally, each process sorts the received sub-sequences using merge-sort and complete the sorting algorithm.

  • Input
  • Process with rank 0 generates unsorted integers using C library call rand()

  • Output
  • Process with rank 0 stores the sorted elements in the file sorted_data_out.

    Example 7.2: Write simple MPI program to implement Coloring a Sparse Graph

  • Objective
  • Parallel program for Implementation of Coloring a Sparse Graph
    You will develop MPI program to color sparse graph G(V,E) with n vertices on p processors of message passing cluster

  • Definitions
  • A directed graph G(V,E) (or a digraph ) consists of a set of vertices V={v1,v2,...}, a set of edges E={e1,e2,...}, and a mapping F that maps every edge onto some ordered pair of vertices (vi,vj). As in the case of undirected graphs, a vertex is represented by a point and edge by a line segment between vi and vj with an arrow directed from vi to vj.

    Suppose that you are given a graph G(V,E) with n vertices and are asked to paint its vertices such that no two adjacent vertices have the same color. What is the minimum number of colors that you would require ? This constitutes a coloring problem.

    Having painted the vertices, you can group them into different sets. One set consisting of all red vertices, another of blue, and so forth. This is a partitioning problem. The coloring and partitioning can of course, be performed on edges or vertices of a graph.

    Painting all the vertices of a graph with colors such that no two adjacent vertices have the same color is called the proper coloring (or sometimes simply coloring) of a graph. A graph in which every vertex has been assigned a color according to a proper coloring is called a properly colored graph. Usually a given graph can be properly colored in many different ways. The proper coloring which is of interest to us is one that requires the minimum number of colors.

    Proper coloring of a given graph is simple enough, but a proper coloring with the minimum number of colors is, in general, a difficult task.

    A proper coloring of a graph naturally induces a partitioning of the vertices into different subsets. A set of vertices in a graph is said to be an independent set of vertices or simply an independent set if no two vertices in the set are adjacent. A single vertex in any graph constitutes an independent set. A maximal independent set (or maximal internally stable set) is an independent set to which no other vertex can be added without destroying its independence property. It is well known that some graphs in general, have many maximal independent sets; and they may be of different sizes. Among all maximal independent sets, one with the largest number of vertices is often of particular interest.

    Finding a maximal independent set : A reasonable method of finding a maximal independent set in a graph G(V,E) will be to start with any vertex v of G(V,E) in the set. Add more vertices to the set, selecting at each stage a vertex that is not adjacent to any of those already selected. This procedure will ultimately produce a maximal independent set with a largest number of vertices. The following figures explain the coloring of sparse graph using 3 processors with 3 and 4 colors.

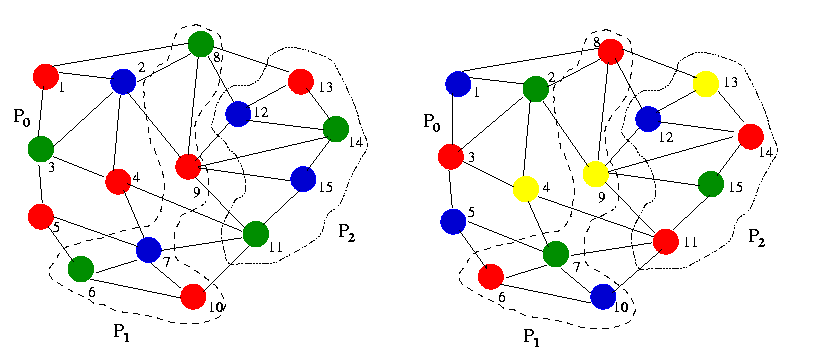

    Figure 7.2 (a). Coloring a Grpah using 3 processors       Figure 7.2(b). Coloring a Grpah using 4 processors

  • Serial algorithm
  • Consider the problem of finding a minimal coloring of an undirected graph G =(V,E) in which each vertex is connected to only few other vertices. Serial graph coloring algorithms are often based on graph traversals. Other class of graph coloring algorithms require independent set of computations.

  • Parallel algorithm
  • Serial graph coloring algorithms are often based on graph traversals, whereas parallel coloring algorithms are often based on iteratively computing independent set of vertices. Luby's algorithm uses independent set computations to derive message passing programs that performs graph coloring program.

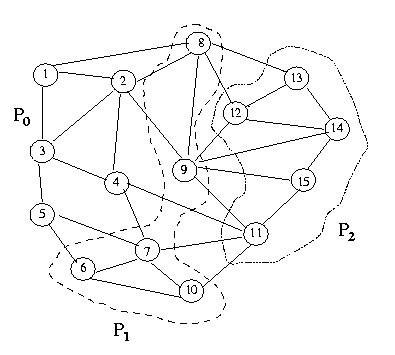

    The following figure explains the partition of graph G(V,E) into three subgraphs such that each process has equal number of vertices. We will present one message-passing graph coloring program.  Luby's algorithm consists of a number of steps. During the jth steps, the algorithm selects a maximal independent set Ij of vertices from the uncolored vertices of G. It then, assigns the color j to the vertices in Ij and proceeds to the next phase. Luby's algorithm selects each maximal independent set Ij incrementally by using a randomized algorithm as follows.

    A random number is assigned to each uncolored vertex of G. Now if an uncolored vertices has a random number that is smaller than all of the random numbers of its adjacent uncolored vertices, it is then included in Ij. This process is repeated for the vertices of G that are uncolored and not in Ij nor adjacent to vertices in Ij, Ij is augmented similarly. This incremental augmentation of Ij ends when no more vertices can be inserted in Ij.  In particular, the algorithm developed by Luby  is often used to drive message-passing programs that perform graph coloring.

    The critical step in Luby's algorithm is the one that computes a maximal independent subset of the uncolored vertices. If we develop a message-passing program for this step, then we can just use it repeatedly to obtain the coloring of the graph. Developing such a message-passing program is quite straight-forward. Consider the graph G =(V,E) with n vertices. The graph is distributed among the p processors such that each processor stores n/p vertices and the corresponding adjacency lists. Let us assume that we are in the jth phase of Luby's algorithm and we seek to compute Ij. Initially, each processor generates a random number for each locally stored uncolored vertex v. Next, every processor needs to check each such vertex v to determine if its random number is the maximum over the uncolored vertices adjacent to v. This can be done easily if the uncolored vertices are assigned to other processors, then these random numbers need to be communicated. Thus, the message-passing program, before proceeding to determine which vertices can be inserted in the independent set Ij, they need to receive the random numbers for all the non-local uncolored vertices that are adjacent subsets of the maximal independent set algorithm.

  • Remarks
  • However, even though we can develop a message-passing program that exactly implements Luby's algorithm, this program may not necessarily achieve very high performance. One reason is that this program will perform a lot of communication. In particular, a every time we need to find an independent subset of the uncolored vertices we need to perform multiple incremental augmentations. Every such augmentation sub-step leads to communication for the exchange of the generated random numbers. However, each successive augmentation subsets increases the size of the independent subset only by a small factor.

    Experiments with Luby's algorithm has shown that if for example 10% of the vertices are included in Ij during the first subsets, a much smaller fraction of the vertices are included in the second subsets, and the number of vertices that are included in subsequent substeps is even smaller. One possible solution is to perform only a single sub-step of the randomized independent subsets algorithm. However, this will undoubtedly increase the number of steps (i.e., independent subsets) required to color the graph; thus, increasing the number of colors. In many applications a coloring with the least number of colors is required making this approach undesirable.

    Another limitation of Luby's coloring algorithm compared to serial coloring algorithm is that it requires multiple traversals of the graph. The number of traversals are on the average half the number of colors in the graph. Thus, even if communication overheads are zero, the speedup achieved by Luby's will be quite poor when compared to serial coloring algorithm that require a single traversal of the graph making this approach undesirable.

  • Input
  • You are given a graph G(V,E) withV vertices and E edges on processor with task id 0. Maximum number of colors available is 16.

  • Output
  • You should print given graph G(V,E), maximum number of colors required to paint (color) the vertices of graph G, and respective colors for all vertices in the graph G on processor with task id 0.

    Example 7.3: Write an efficient MPI Parallel program for implementation of Coloring a sparse a graph

  • Objective
  • You will develop efficient MPI program to color sparse graph G(V,E) with n vertices on p processors of message passing cluster

  • Sequential algorithm
  • Consider the problem of finding a minimal coloring of an undirected graph G =(V,E) in which each vertex is connected to only few other vertices.

    Serial graph coloring algorithms are often based on graph traversals, whereas parallel coloring algorithms are often based on iteratively computing independent set of vertices.

    Luby's algorithm uses independent set computations to derive message passing programs that performs graph coloring program. We will present one message-passing graph coloring program.  The following figure explains the partition of graph G(V,E) into three subgraphs mapped onto three processors such that each processor has equal number of vertices, using three colors to color the graph. Luby's algorithm consists of a number of steps. During the jth steps, the algorithm selects a maximal independent set Ij of vertices from the uncolored vertices of G. It then, assigns the color j to the vertices in Ij and proceeds to the next phase. Luby's algorithm selects each maximal independent set Ij incrementally by using a randomized algorithm. The details are explained in previous algorithm.

  • Efficient parallel algorithm
  • We can develop a coloring algorithm that uses some of the ideas in Luby's algorithm, but can achieve high performance and is particularly suited for message-passing programming. Consider the graph G =(V,E) with n vertices. The graph is distributed among the p processors such that each processor stores n/p vertices and the corresponding adjacency lists.

    Let us assume that we are in the jth phase of Luby's algorithm and we seek to compute Ij. Initially, each processor generates a random number for each locally stored uncolored vertex v. Next, every processor needs to check each such vertex v to determine if its random number is the maximum over the uncolored vertices adjacent to v. This can be done easily if the uncolored vertices are assigned to other processors, then these random numbers need to be communicated. Thus, the message-passing program, before proceeding to determine which vertices can be inserted in the independent set Ij, they need to receive the random numbers for all the non-local uncolored vertices that are adjacent to locally stored vertices. This exchange of random numbers must happen in every iterative argumentation substep of the maximal independent serial algorithm.

    Let Vi be the set of vertices assigned to processor Pi. A vertex v = Vi is called an interior vertex if all the vertices adjacent to v are also stored in processor Pi. A vertex v = Vi is called an boundary vertex if at least one of its adjacent vertices is stored in a different processor. LetViIbe the subset of Vi that contain all the interior  vertices and let ViB be the subset of Vi that contain all the boundary vertices. The new coloring algorithm consists of two phases. In the first phase, we compute a coloring of all the interior  vertices and a coloring of the boundary vertices in the second phase.

    During the first phase, since none of the interior vertices stored at different processors are connected together (by definition of  the interior vertices), each processor can color its interior vertices independent of the other processors. This can be done by using an efficient serial coloring algorithm. During the second phase, the boundary vertices are colored using ideas borrowed from Luby's algorithm. In particular, this coloring is done in a number of steps. In each step we select an independent subset of vertices by performing a single substep of Luby's randomized algorithm. Let Ij be the independent subset of vertices selected in the jth step. The vertices in Ij are colored by assigning to each vertex the smallest consistent color. That is, for each vertex v   Ij we determined the smallest color that is not used by any of the vertices adjacent to v that are already colored and assign this color to v. Thus, unlike Luby's algorithm, vertices in Ij can be potentially assigned different colors. The number of communication steps in this algorithm is smaller than those in Luby's algorithm because we do not compute maximal independent subsets. However, the number of distinct colors in the graph is not necessarily greater, because we color the interior vertices using a serial algorithm, the new algorithm needs to perform multiple traversals of only the boundary vertices. This improves the overall performance of the parallel coloring algorithm.

    A message-passing program for this new algorithm needs to perform communication during the coloring of the boundary vertices. In particular, every processor needs to receive the random numbers of the vertices that are adjacent to its boundary vertices, and to send the random numbers of its boundary vertices to the required processors. The exact communication pattern of this data exchange depends on how the graph is distributed among the processors. As it was the case with the sparse matrix-vector multiplication program this requires a communication setup phase, in which each processor determines where and what random numbers it needs to send and to receive

  • Details of CommInfoType data structure
  • In our message passing graph coloring program we use a data structure CommInfoType similar to the one used by the sparse matrix-vector multiplication algorithm to store this communication pattern. Like the structure of the sparse matrix which differs from instance to instance, the structure of the sparse graph also differs and its pattern of data transfer among processors has to be determined during the execution of the program. For such programs, each processor first determines with which processors it needs to communicate and what elements it needs to send and receive. It then uses this information to perform the actual data transfers and finally proceeds to compute the matrix-vector product corresponding to the locally stored rows of the matrix. Here, we develop CommInterfaceValues a communication module which performs the required communication, so that each processor has the entries of the that are needed to perform graph coloring algorithm. Each processor uses the CommInfoType data structure to store information about its communication pattern explained below.

       typedef struct
       { int nsnbrs, *spes;
          int nrnbrs, *rpes;
          int *sendptr, *recvptr;
          int *sendind, *recvind;
          double *sendbuf, *recvbuf
       } CommInfoType;

    The variable nsnbrs and nrnbrs store the number of processors that this processor needs to send and to receive data, respectively.We can think of these processors as being the neighboring processors. The actual ranks of these processors is stored in the arrays spes and rpes for the sendind and receiving processors, respectively. The array spes is of the size nsnbrs, and the array rpes is of size nrnbrs. The array sendptr and sendind store the elements of the b vector to be sent to each processor. In particular, the indices of the elements that are sent to the ith neighboring are stored in sendind starting at location sendptr [ I ] and ending at location sendptr [I+1] - 1. The array sendptr is of size (nsnbrs+1), and the size of the array sendind is equal to the sum of the number of elements that are sent to all the neighboring processors. The array recvptr and recvind store the elements of the b vector that are received from the neighboring processors. In particular, the indices of the elements that are received from the ith neighboring are stored in recvind starting at location recvptr [ I] and ending at location recvptr[ I+1]-1.The array recvptr is of size (nrnbrs+1), and the size of the array recvind is equal to the sum of the number of elements that are received from all the neighboring processors. Finally, the array sendbuf and recvbuf are used as buffer to store the element of the b vector that are sent and received. These arrays are of the same size as the corresponding sendid and recvind arrays, respectively.

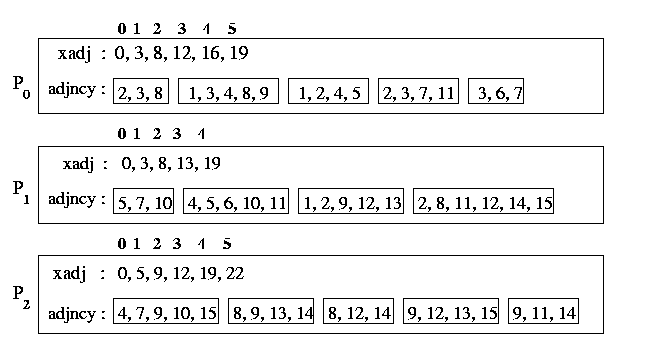

    The graph is distributed among the processors such that each processor gets n/p consecutive vertices. In particular, processor Pstores the vertices starting with vertex i * n/p up to (but not including) vertex (i+1)n/p. Each processor stores its local portion of the graph by using two arrays xadj and adjacency. These arrays are similar to corresponding the rowptr and colind arrays, used in the compressed storage scheme (CRS scheme). That is, the vertices adjacent to vertex i are stored in array adjancy starting at position xadj [i] up to position (but not including) xadj [i+1].  By using this storage format we are able to use the same communication setup routine SetUpCommInfo used by the sparse matrix-vector program.

  • Input
  • You are given a graph G(V,E) with V vertices and E edges on processor with process id 0 . Maximum number of colors available is 16.

  • Output
  • You should print given graph G(V,E), maximum number of colors required to paint (color) the vertices of graph G(V,E), and respective colors for all vertices in the graph G(V,E) on processor with task id 0 .

    Example 7.4:

    Write an efficient Parallel program for implementation of Dijkstra's Single source shortest path Algorithm

  • Objective
  • Parallel Dijkstra's single-source shortest path algorithm

    You will develop MPI program to compute the shortest path from a source vertex s to all the other vertices in the graph G=(V,E) using Dijkstra's single-source shortest path algorithm on p processors of message passing clusters.

  • Basics : Minimum Spanning Tree (MST)
  • A spanning tree of an undirected graph G is a subgraph of G that is a tree containing all the vertices of G. In a weighted graph, the weight of a sub graph is the sum of the weights of the edges in the subgraph. A minimum spanning tree (MST) for a weighted undirected graph is a spanning tree with minimum weight. Many problems require finding an MST of an undirected graph. For example, the minimum length of cable necessary to connect a set of computers in a network can be determined by finding the MST of the undirected graph containing all the possible connections. If G is not connected, it cannot have a spanning forest. For simplicity in describing the MST algorithm, we assume that G is connected. If G is not connected, we can find its connected components and apply the MST algorithm on them. Alternatively, we can modify the MST algorithm to output a minimum spanning forest.

  • Description of algorithm
  • Various algorithms to develop MPI program to compute the shortest path from a source-vertex s to all the other vertices in the graph G=(V,E). We describe Prim's algorithm for finding an MST and Dijkstra's single-source shortest path algorithm.

  • Prim's algorithm

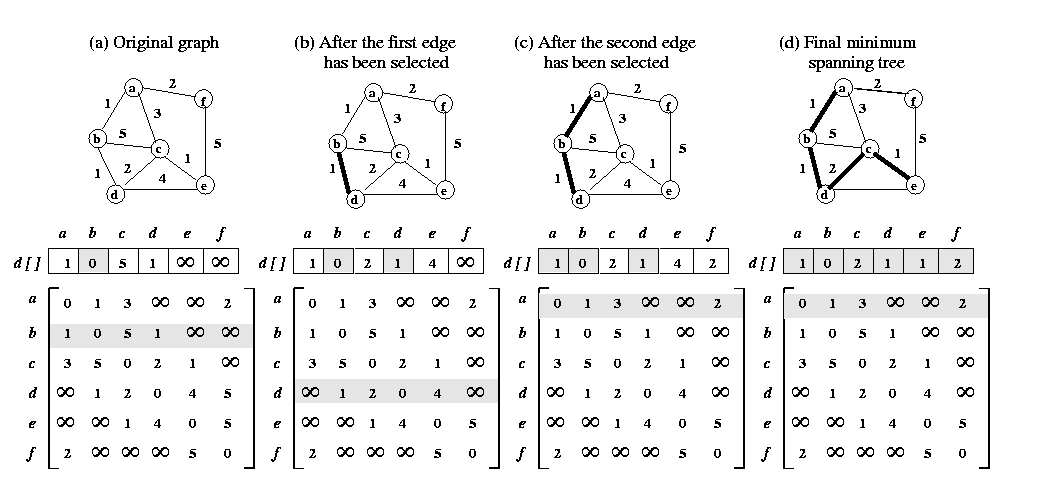

  • Prim's algorithm for finding an MST is a greedy algorithm. The algorithm begins by selecting an arbitrary starting vertex. It then grows the minimum spanning tree by choosing a new vertex and edge that are guaranteed to be in the minimum spanning tree. The algorithm continues until all the vertices have been selected.

    Let G=(V,E,w) be the weighted undirected graph for which the minimum spanning tree is to be found, and let A=(ai,j) be its weighted adjacency matrix. The algorithm uses the set VT to hold the vertices of the minimum spanning tree during its construction. It also uses an array d[1,....,n] in which, for each vertex v=(V-VT), d[v] holds the weight of the edge with the least weight from any vertex in VT to vertex v. Initially, VT contains an arbitrary vertex r that becomes the root of the MST. Furthermore, d[r]=0, and for all v such that v=(V-VT), d[v] = w(r,v) if such an edge exists; otherwise d[v]=  .

    During each iteration of the algorithm, a new vertex u is added to V  such that d[u]=min{d[v]/v = (V-VT)}. After this vertex is added, all the values of d[v] such that v=(V-VT) are updated because there may now be an edge with a smaller weight between vertex v and the newly added vertex u. The algorithm terminates when VT=V. The Figure 1. above illustrates the algorithm. Upon termination of Prim's algorithm, the cost of the minimum spanning tree is Ev=Vd[v]. In program the body of the while loop (lines 10-13) is executed n-1 times. Both the computation of min{d[v]/v   =  (V-VT)} (line 10), and for loop (lines 12 and 13) execute in  (n) steps. Thus, the overall complexity of Prim's algorithm is  (n2).

  • Single-Source Shortest Paths: Dijkstra's Algorithm
  • 1.        procedure DIJKSTRA_SINGLE_SOURCE_SP(V, E, w, s
    2.        begin
    3.               VT:= (s);
    4.                for all (V - VT) do
    5.                       if (s, v) exists set l[v]:= w(s, v);
    6.                        else set l[v] =
    7.                 while VT V do
    8.                  begin
    9.                  find a vertex u such that l[u] = min{l[v]| v  (V - VT)};
    10.                       VT:= VT  {u};
    11.                       for all v  (V - VT) do
    12.                              l[u] = min{l[v], l[u] + w(u, v)};
    13.                endwhile
    14.       end DIJKSTRA_SINGLE_SOURCE_SP

    For a weighed graph G=(V,E,w), the single-source shortest paths problem is to find the shortest paths from a vertex v=V to all other vertices in V. A shortest path from u to v is a mimimum-weight path. Depending on the application, edge weights may represent time,  cost,  penalty,  loss, or any other quantity that accumulates additively along a path to be minimized. In the following section, we present Dijkstra's algorithm, which solves the single-source shortest-paths problem on directed graphs with non-negative weights.

    Dijkstra's algorithm, which finds the shortest paths from a single vertex s, is similar to Prim's minimum spanning tree algorithm. Like Prim's algorithm, it incrementally finds the shortest paths from s to the other vertices of G. It is also greedy, that is, it always chooses an edge to a vertex that appears closest. Comparing this algorithm with Prim's minimum spanning tree algorithm, we see that the two are almost identical. The main difference is that, for each vertex u=(V-VT), Dijkstra's algorithm stores l[u], the minimum cost to reach vertex u from vertex s by means of vertex in VT; Prim's algorithm stores d[u], the cost of the minimum-cost edge connecting a vertex in VT to u. The run time of Dijkstra's algorithm is  (n2).

  • Parallel formulation
  • The parallel formulation of Dijkstra's single-source shortest paths algorithm is very similar to the parallel formulation of Prim's algorithm for minimum spanning trees. The weighted adjacency matrix is partitioned using the block- striped mapping. Each of the p processors is assigned n/p consecutive columns of the weighted adjacency matrix, and computes n/p values of the array l.  During each iteration, all processors perform computation and communication of Prim's algorithm.

    In this, message-passing program uses collective communication operations will compute the shortest paths from a source-vertex s to all the other vertices in the graph, using Dijkstra's single-source shortest-path algorithm. Dijkstra's algorithm incrementally finds the shortest paths from s to the other vertices inthe graph G=(V,E). At any given time, the vertices V of the graph are partitioned into two sets Vc and Vo. The set Vc contains the vertices whose shortest path from s has already been computed (closed set) and the set Vo contains the remaining vertices (open set). For each vertex v in Vo, the algorithm stores the cost of shortest path d[v] from s to v via only the vertices in Vc. In each iteration of the algorithm, vertex v from Vo is selected such that it has the smallest d[v] value, and is moved to Vc. Then, the shortest-path of the remaining vertices in Vo are updated to reflect the inclusion of v in Vc. At the beginning of the computation, only vertex s belongs in Vc , and the algorithm requires a total of V-1 iterations to compute all the shortest paths.

    A parallel version of Dijkstra's algorithm can be devised by performing in parallel both the selection of the vertex to be included in Vc as well as the update of the shortest paths. On a disributed-memory parallel computer, the weighted adjacency-matrix of the graph W is distributed among the processor using a one-dimensional distribution along the columns. That is,  each one of the p processors gets n/p columns of G where n is the number of vertices. Also, every processor stores the corresponding part of the distance array d. That is,  if a processor stores the columns ranging from W(*, i) to W(*,  j), it will also store the distances for the vertices in the range of vi to vj. Our MPI program for Dijkstra's algorithm assigns n/p consecutive columns of W to each processor. Note though that in each iteration, it uses the MPI_MINLOC reduction operation to select the vetex v to be included in Vc.

  • Remarks
  • Recall that the MPI_MINLOC operation, for the pairs (a, i) and (a, j) it will return the one that has the smaller index (since both of them have the same value). Consequently, among the vertices that are equal close to the source vertex, it favors the smaller vertices. This may lead to load imbalance problems, especially when a lot of vertices in Vo are at the same minimum distance from the source. In particular, vertices stored in lower-ranked processes will tend to be moved in Vc , as opposed to those stored in higher-ranked processes. Since, both finding the minimum-distance vertex as well as computing the updated distances involve only vertices in Vo , the higher-ranked processes may end-up having more vertices in Vo than the lower-ranked vertices.

    One way of correcting this problem is to distribute the columns of w in a cyclic distribution. In this distribution process i gets every pth vertex starting from vertex i. This scheme also assigns n/p vertices to each process but these vertices have indices that span almost the entore graph. Consequently, the preference given to lower-numbered vertices by MPI_MINLOC does not lead to load-imbalance problems.

  • Input
  • You are given a graph G(V,E,w) with n (=V) vertices, and E edges with suitable weights w on processor with taskid 0 and source-vertex s.

  • Output
  • You should print given graph G(V,E,w) , and the cost of the shortest path from a source-vertex s to all other vertices in the graph G = (V,E) on processor with task id 0.
