hyPACK-2013 Mode 1 : MPI 1.X - Matrix Computations MPI Lib. Calls

Module 5 : MPI programs on Dense & Sparse Matrix Computations - Vector - Vector, Matrix -Vector, Matrix -Matrix Multiplication & Sparse Matrix into Vector Multiplication Algorithms and execute on Message Passing Cluster or Multi Core Systems that support MPI library.

Example 5.1

Write MPI program to compute dot product of two vectros using block-striped partittioning wit uniform data distribuion .

Example 5.2

Write MPI program to compute dot product of two vectros using block-striped partitioning with non-uniform data distribution.

Example 5.3

Write MPI program to compute dot product of two vectros using block-striped partitioning with cyclic uniform data distribution .

Example 5.4

Write MPI program for implementation of infinity norm of a square matrix .

Example 5.5

Write MPI program for implementation of Matrix and Vector Mulltiplication using self-scheduling algorithm.

Example 5.6

Write MPI program for computation of the matrix -vector multiplication on p processors of message passing cluster using block striped partitioning of a matrix.

Example 5.7

Write a parallel MPI program, for computing the matrix -vector multiplication on p processor of message passing cluster using block-checkerboard partitioning .

Example 5.8

Write MPI program for implementation of Matrix and Matrix Mulltiplication using self-scheduling algorithm .

Example 5.9

Description for implementation of MPI program to compute the Matrix Matrix Multiplication using block checkerboard partitioning and MPI Cartesian topology .

Example 5.10

Description for implementation of MPI program to compute the Matrix Matrix Multiplication using block checkerboard partitioning and Cannon's Algorithm and MPI Cartesian topology .

Example 5.11

Description for implementation of MPI program to compute the Matrix Matrix Multiplication using block checkerboard partitioning and Fox's Algorithm and MPI Cartesian topology

Example 5.12

Description for implementation of MPI program for sparse matrix and vector Multiplication using block-striped partitioning .

Example 5.13

Efficient Parallel formulation for implementation of MPI program for sparse matrix and vector Multiplication using block-striped partitioning .(Assignment Question)


(Source - References : Books     Multi-threading     - [MC-MPI-02], [MCMPI-06], [MCMPI-07], [MCMPI-09], [MC-MPI10], [MCMPI-11], [MCMTh-12],[MCBW-44], [MCOMP-01])

An overview of Sequential programs on Vector - Vector, Matrix -Vector, Matrix -Matrix Multiplication Algorithms

The MPI based parallel programs on dense matrix computations play an important role for performance of several scientific and engineering applications on message passing clusters. Simple sequential programs on vector-vector mulitplicaiton, Matrix Vector multiplcation,Matrix - Matrix Multiplciation and selected parallel algrotims and programs on dense marix computations are given below. are described below.


Vector- Vector Mutliplicatin :

Vectors can be partitioned in different ways and the partitions can be assigned to different process. We briefly explain some well known partitioning techniques to write parallel programs. In the striped partitioning of a vector, the vector is divided into groups of contiguous elements and each process is assigned one such group. A serial algorithm for vector-vector multiplication requires n multiplications and (n-1) additions. The serial program is given below :

  float Vect_vect (int n, float x[ ], float y[ ])
  {
    int i;
    float dot_product;
    for(i=0; i < n; i++) = 0.0;
    dot_product = dot_product + (x[i] * y[i]);
    return(dot_product);
  }

Matrix - Vector Mutliplicatin :

Matrices can be classified  into two broad categories, dense matrices and sparse matrices. Dense or full matrices  have few or no zero elements. Sparse matrices  have a majority of zero elements. In order to process a matrix input in parallel, we must partition it so that the partitions can be assigned to different processes.  If we assume that an addition and multiplication pair takes unit time, then the sequential run time of algorithm is n2. For multiplying a dense matrix A of size m x n and a vector x   of size n. Atleast, three distinct parallel formulations of matrix-vector multiplication's are possible. It depends on row-wise striping, column-wise striping, or checkerboard striping of the matrix. The following examples discuss common ways to partition matrices among processes to perform matrix-vector multiplication.  Serial algorithm of matrix vector multiplication is explained below:

  float MAT_VECT(int n, int m, float A[ ] [  ], float x[ ], float y[ ])
  {
    int i, j;
    for(i=0; i < m; i++) = 0.0;
        {
          y[i] = 0.0;
          for(j=0; j < n; i++) = 0.0;     y [i] = y [i] + A [i ][j]* x[j]);
        }
  }

Matrix - Matrix Mutliplicatin :

We discuss parallel algorithms for multiplying two dense, square matrices A and B of size n to yield the product matrix. All parallel matrix multiplication algorithms involves the scalar algebraic operations performed on the blocks or submatrices of the original matrix .  Such algebraic operations on the submatrices are called block matrix operations . If we assume that an addition and multiplication pair takes unit time, then the sequential run time of conventional algorithm is n 3 . For multiplying a dense matrix A of size n and dense matrix B of size n atleast, three distinct parallel formulations of matrix-matrix multiplication's are possible. It depends on row-wise striping, column-wise striping, or checkerboard striping of the matrices A,   B . The following examples discuss common ways to partition matrices among processes to perform matrix-matrix multiplication.

  float Block_MAT_MULT(int n, int m , float A[ ] [ ], float B[ ] [ ], float C[ ] [ ])
  {
    int i, j, k;
    for(i=0; i< n; i++) = 0.0;
      {
        for(j=0; j< n; j++) = 0.0;
          {
            C[i][k] =0.0;
            for(j=0; k< n; k++)   C[i][k] = C[i][k] +   A[i][k] * B[k][j];
         }
      }
  }

Description of Programs - Dense/Sparse Matrix Comptuations

Example 5.1:




Write MPI program to compute dot product of two vectros using block-striped partitioning with uniform data distribution.
(Download source code : vv_mult_blkstp_unf.c       vv_mult_blkstp_unf.f
(Download input files : vdata1.inp     and     vdata2.inp )
  • Objective
  • Write a MPI program, to compute the vector-vector multiplication on p processors of message passing cluster using block-striped partitioning with uniform data distribution. Assume that the vectors are of size n and p is number of processes used and n is divisible p.

  • Description
  • The partitioning is called block-striped if each process is assigned contiguous elements. The process P0 gets the first n/p elements, P1 gets the next n/p elements and so on. The distribution of 16 elements of vector a on 4 processes is shown in Figure 7.


    Figure 7. A Typical block-striped partitioning of a vector of size 16 on 4 processes

    Initially process with rank 0 distributes the input vectors using MPI_Scatter on p processes. Each process will perform local dot product of the vectors and accumulate the partial dot product. Now the process with rank 0 performs global reduction using MPI_Reduce to get the final dot product of two vectros

  • Input
  • Process with rank 0 reads a real vectors of size n. Assume that the number of elements n are greater than or equal to number of processes p. You have to adhere strictly to the following format for the input files.

    #Line 1 : Number of Elements (n
    #Line 2 : List of Elements (data).

    A sample input file for the vector A is given below :
    24
    1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   1.0   2.0   1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   1.0   2.0
    1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   1.0   2.0   1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   1.0   2.0

  • Output
  • Process with rank 0 prints the final dot product of two vectors.

    Example 5.2:



    Write MPI program to compute dot product of two vectros using block-striped partitioning with non-uniform data distribution.
    (Download source code : vv_mult_blkstp_nonunf.c       vv_mult_blkstp_nonunf.f
    (Download input files : vdata1.inp     and     vdata2.inp )
  • Objective
  • Write a MPI program, to compute the dot product of two vectors on p processors of cluster using block-striped partitioning with non-uniform distribution of data

  • Description
  • If p divides n evenly, processes P0 gets the first n/p elements, P1 the next n/p elements and so on. If p does not divide n evenly, and  r be the remainder, then first r processes get (n/p)+1 elements and remaining p-r processes get n/p elements.  The program described in Example 14 uses MPI_Scatter and MPI_Reduce because the vector is equally distributed on p processes. Here, we use MPI_Scatterv call, which distributes the vectors non-uniformly on all processes.

  • Input
  • Process with rank 0 reads a real vectors of size n. Assume that the number of elements n are greater than or equal to number of processes p. You have to adhere strictly to the following format for the input files.

    #Line 1 : Number of Elements (n
    #Line 2 : List of Elements (data).

    A sample input file for the vector A is given below :
    18
    1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   7.0   8.0   1.0   2.0   3.0   4.0   5.0   6.0
    1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   7.0   8.0   1.0   2.0   3.0   4.0   5.0   6.0

  • Output
  • Process with rank 0 prints the final dot product of two vectors

    Example 5.3:




    Write MPI program to compute dot product of two vectros using block-striped partitioning with cyclic uniform data distribution.
    (Download source code : vv_mult_blk_cyclic.c       vv_mult_blk_cyclic.f
    (Download input files : vdata1.inp     and     vdata2.inp )
  • Objective

    Write a MPI program, to compute the dot product of two vectors on p processors of message passing cluster using block-striped partitioning with cyclic uniform data distribution. Assume that the vectors are of size n and p is number of processors used and n  is a multiple of p.

  • Description

    In the Cyclic data partitioning process P0 gets the first element, process P1 gets the next and so on. The process Pp-1 gets (p-1)th element. If the number of elements n is more than the number processes p, then  process P0 gets pth element, process P1 gets (p+1)th element and so on. The process is repeated till all the elements are assigned. If n is not a multiple of p, then first r (r = n/p) processes will get n/p +1 elements and remaining p-r processes will get n/p elements, in cyclic fashion. The Figure 8 illustrates the example for  p = 4 and n = 16

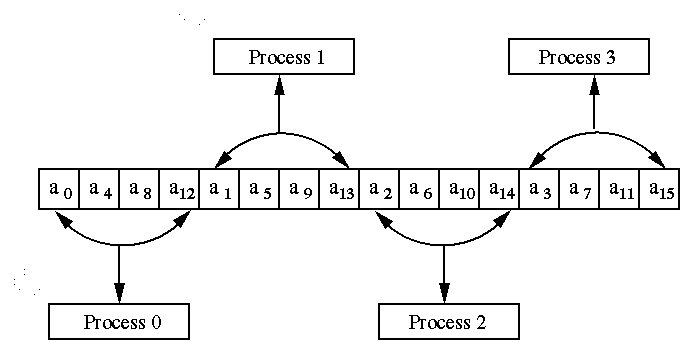

  • Figure 8. Cyclic data partitioning of a vectorof size 16 on 4 processes

    #Line 1 : Number of Elements (n
    #Line 2 : List of Elements (data).

    A sample input file for the vector A is given below :
    16
    1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   1.0   2.0   5.0   6.0   7.0   8.0
    1.0   2.0   3.0   4.0   5.0   6.0   7.0   8.0   2.0   9.0   1.0   2.0   5.0   6.0   7.0   8.0

  • Output
  • Process with rank 0 prints the final dot product of two vectors

    Example 5.4:


    Description for implementation of infinity norm of a square matrix
    (Download source code : mat_infnorm_blkstrip.c       mat_infnorm_blkstrip.f
    (Download input files : infndata.inp )

  • Objective

    Write a MPI program to calculates infinity norm of a matrix using row wise block-striped partitioning

  • Description

    The infinity norm of a square matrix is defined to be the maximum of sums of absolute values of elements in a row, over all rows. Row-wise block partitioning, is used and the idea is that the matrix m x n is striped among p processors so that each processors stores m/p rows of the matrix. A typical column-wise and row-wise partitioning of the matrix is shown in the Figure 9.

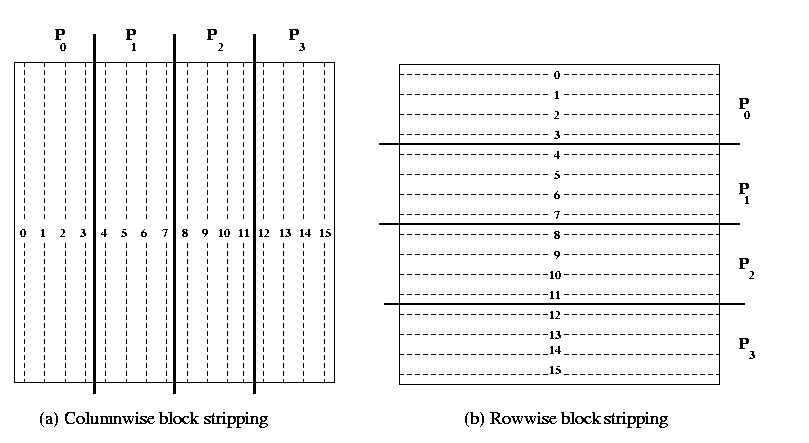

    Figure 9.   Uniform column-wise and row-wise striped partitioning of 16 x 16 matrix on 4 processors of a cluster.

    If a m x n matrix is partitioned on p processes (labeled p0 , p1, p2,..., pp-1), then process pi contains rows with indices (m/p)i, (m/p)i+1, (m/p)i+2, (m/p)i+3,........, (m/p)(i+1)-1.

  • Input
  • Assume A is a real matrix of size m x n.  Also the number of rows m should be greater than or equal to number of processes p . Process with rank 0 reads input data.  Format for the input file is given below.


    You have to adhere strictly the following format for the input files.

      #Line 1 : Number of Rows (m)  Number of columns(n).
      #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first      and so on.)

  • Input file

  •
    A sample input file for the matrix A (8 x 8) is given below :
    8  8
    -1.0   2.0    3.0      4.0    5.0    6.0    7.0    8.0
    2.0    3.0    4.0      5.0    6.0    7.0    8.0    9.0
    3.0    4.0    5.0      6.0    7.0    8.0    9.0    10.0
    4.0    5.0    6.0      7.0    8.0    9.0   10.0   11.0
    5.0    6.0    7.0      8.0    9.0   10.0   11.0   12.0
    6.0    7.0    8.0      9.0   10.0   11.0   12.0   13.0
    7.0    8.0    8.0    10.0    11.0  12.0  13.0  14.0
    8.0   -9.0   10.0   11.0   12.0   13.0   14.0  15.0
  • Output
  • Process with rank 0 prints the infinity norm value as given below
    92.0

    Example 5.5:








    Description for implementation of MPMD MPI program to compute the Matrix and Vector Multiplication using self-scheduling algorithm
    (Download MPI - C Language source codes : mv_mult_master_sschd.c       mv_mult_slave_sschd.c )
    (Download MPI - Fortran 77 language source codes : mv_mult_master_sschd.f       mv_mult_slave_sschd.f )
    (Download input files : vdata1.inp     and     vdata2.inp )

  • Objective
  • Write MPMD MPI program for computing the matrix-vector multiplication on p processors of message passing cluster using Self Scheduling algorithm.

  • Description
  • This example illustrates , one of the most common parallel algorithm prototype , the Self-Scheduling  or Master-Slave algorithm. This example is chosen not because it illustrates the best way to parallelize this particular numerical computation (it doesn't), but it illustrates the basic MPI send and MPI receive operations in the context of fundamental type of parallel algorithm applicable in many situations.

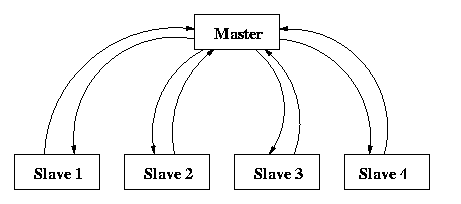

    Figure 10  Communication pattern among master and slaves in self scheduling paradigm.
    We assume that the matrix A of size n x n is available with master process of rank 0 and the vector x of size n is available on all the slave processes, whose rank start from 1 onwards .The idea is that one process, which we call the master process,  distributes the work load to slave processes. When the slave finishes its workload, it informs the master which assigns a new workload to the slave. This communication between the master and slave is shown in Figure 10. This is very simple paradigm where the co-ordination is done by master. Here,  the slave processes do not have to communicate with one another.

    The master begins by broadcasting vector x to each slave. It then sends one row of the matrix A to each slave .  At this point, the master begins a loop, terminated when it has received all of the entries in the product. The body of the loop consists of receiving one entry in the product vector from any slave , and sending the next task (row of matrix A)  to that slave. In other words, completion of one task by a slave is considered to be a request for the next task. Once all the tasks have been handed out, termination messages are sent.

    After receiving the broadcast value of vector x , each slave also enters in a loop to compute the product of a matrix row with vector. Each slave computation is terminated by the receipt of the termination message from master. The body of the loop consists of receiving a row of matrix A,  performing the dot product with vector x, and sending the answer back to the master


  • Input
  • The input should be in following format.

    Assume that the real matrix is  of size m x n  and the real vector is of size n .  Also the number of rows m should be greater than or equal to number of processes p. Process with rank 0 reads the input matrix A  and the vector x .  Format for the input files are given below.

    Input file 1

    The input file for the matrix should strictly adhere to the following format.

    #Line 1 : Number of Rows (m), Number of columns (n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

    A sample input file for the matrix (8 x 8) is given below :

    8    8

    1.0    2.0    3.0     4.0     2.0     3.0     2.0     1.0
    2.0    3.0    4.0     2.0     3.0     2.0     1.0     1.0
    3.0    4.0    2.0     3.0     2.0     1.0     1.0     1.0
    4.0    2.0    3.0     2.0     1.0     1.0     4.0     2.0
    2.0    3.0    2.0     1.0     2.0     3.0     2.0     2.0
    3.0    2.0    1.0     1.0     2.0     1.0     1.0     1.0
    2.0    1.0    4.0     3.0     2.0     1.0     3.0     3.0
    4.0    1.0    2.0     1.0     2.0     3.0     4.0     3.0

    Input file 2
    The input file for the vector should strictly adhere to the following format.

    #Line 1 : Size of the vector (n
    #Line 2 : (data)

    A sample input file for the vector (8 x 1) is given below

    #line 1 : 8
    #Line 2 : 1.0  1.0  1.0   1.0   1.0  1.0  1.0  1.0

  • Output
  • Process with rank 0 prints the final matrix vector product result is given below.

    18.0  18.0  17.0  19.0  17.0   12.0  19.0  20.0

    Example 5.6:





    Description for implementation of MPI program to compute the Matrix and Vector Multiplication using block-striped row-wise partitioning with uniform data distribution
    (Download source code : mv_mult_mult_blkstrip.c     mv_mult_mult_blkstrip.f )
    (Download input files : vdata1.inp     and     vdata2.inp )

  • Objective
  • Write a MPI program, for computing the matrix -vector multiplication on p processor of message passing cluster using block striped partitioning of a matrix.

  • Description
  • In the striped partitioning of a matrix, the matrix is divided into groups of contiguous complete rows or columns, and each processor is assigned one such group. The partitioning is called block-striped if each processor is assigned contiguous rows or columns. Striped partitioning can be block or cyclic. In a row-wise block striping of an nxn matrix on p processors (labeled P0 , P1, P2,..., P p-1 ),  processor Pi contains rows with indices (n/p)i, (n/p)i+1, (n/p)i+2, (n/p)i+3,........, (n/p)(i+1)-1. A typical column-wise or row-wise partitioning of 16 x 16 matrix on 4 processors is shown in the Figure 11


    Figure 11.   Uniform block-striped partitioning of 16 x 16 matrix on 4 processors.

    The matrix A of size n x n is striped row-wise among p processes so that each process stores n/p rows of the matrix.  We assume that the vector x of size n x 1 is available on each process . Now, process  Pi computes the dot product of the corresponding rows of the matrix A[*] with the vector x[ * ]  and accumulate the partial result in the array y[ * ]. Finally, process P0 collects the dot product of different rows of the matrix with the vector from all the processes.

  • Input
  • Format for the input files are given below.

    Input file 1

    The input file for the matrix should strictly adhere to the following format.
    #Line 1 : Number of Rows (m), Number of columns (n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

    A sample input file for the matrix (16 x 16) is given below :

    16    16

    1.0    2.0    3.0     4.0     2.0     3.0     2.0     1.0    4.0    6.0    7.0     3.0     8.0     8.0     1.0     5.0
    2.0    3.0    4.0     2.0     3.0     2.0     1.0     1.0    6.0    6.0    8.0     9.0     2.0     7.0     2.0     3.0
    3.0    4.0    2.0     3.0     2.0     1.0     1.0     7.0    2.0    4.0    6.0     8.0     5.0     2.0     7.0     15.0
    4.0    2.0    3.0     2.0     1.0     1.0     4.0     2.0    3.0    6.0    5.0     1.0     4.0     3.0     8.0     14.0
    2.0    3.0    2.0     6.0     2.0     3.0     2.0     1.0    8.0    2.0    9.0     7.0     7.0     0.0     4.0     17.0
    8.0    2.0    5.0     6.0     3.0     9.0     7.0     3.0    3.0    2.0    1.0     1.0     2.0     1.0     1.0     10.0
    2.0    1.0    4.0     3.0     2.0     1.0     3.0     3.0    7.0    8.0    9.0     1.0     2.0     2.0     4.0     6.0
    4.0    1.0    2.0     1.0     2.0     3.0     4.0     3.0    6.0    3.0    4.0     8.0     6.0     9.0     1.0     31.0

    Input file 2
    The input file for the vector should strictly adhere to the following format.

    #Line 1 : Size of the vector (n
    #Line 2 : (data)

    A sample input file for the vector (8 x 1) is given below
    #line 1 : 16
    #Line 2 : 1.0  1.0  1.0   1.0   1.0  1.0  1.0  1.0  1.0  1.0  1.0   1.0   1.0  1.0  1.0  1.0

  • Output
  • Process with rank 0 prints the final matrix vector product

    Example 5.7:





    Description for implementation of MPI program to compute Matrix and Vector Multiplication using block checkerboard partitioning
    (Download source code : mv_mult_mult_checkerboard.c       mv_mult_checkerboard.f )
    (Download input files : vdata1.inp     and     vdata2.inp )

  • Objective
  • Write a parallel MPI program, for computing the matrix -vector multiplication on p processor of message passing cluster using block-checkerboard partitioning . Assume that p is a perfect square number.

    Special MPI routines can be used to arrange the processors in a square grid of q x q processors where, q2=p.  Also, assume that the size of the matrix is evenly divisible by q.

  • Description
  • In checkerboard partitioning, the matrix is divided into smaller square or rectangular blocks (submatrices) that are distributed among processes. A checkerboard partitioning splits both the rows and the columns of the matrix, so no process is assigned any complete row or column . Like striping partitioning, checkerboard partitioning can be block or cyclic. The Figure 12  explains how a 8 x 8 matrix is distributed on 16 processors using block checkerboard and cyclic checkerboard partitioning

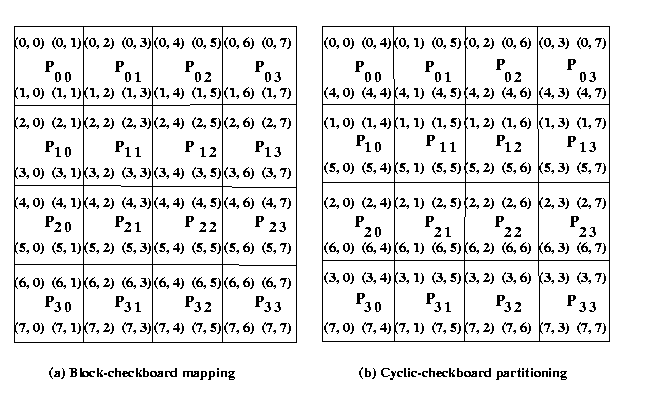

    Figure 12. Checkerboard partitioning of 8 x 8 matrices on 16 processors

    We assume that processes are arranged in q x q  matrix and processes are stored in row major order. As shown in Figure 12 for square grid of 4 x 4 processors the matrix A of size m x is partitioned among processes using block checkerboard partitioning , such that each process stores m/q x n/q block of the matrix A. The vector x is distributed in portions of n/q elements to the first process in each columns of q processes . For example, the  processes P00, P10, P20 and P30 get the n/q elements of the vector x. Each process in the first column of each row in square grid of q x q processes, possesses n/q elements of the vector. Processes P00, P10, P20, P30 broadcast elements of the vector to the other processes in the respective rows of the grid.  Each process now stores m/q x n/q  blocks of the matrix A and n/q elements of the vector x

    Each process then performs multiplication of its block matrix with local vector elements and stores the partial result in the vector y[* ]. Now, each process has resultant vector y of size m/q and the first process in each row of square grid processes q x q will accumulate the partial sum in the same row involving other processes in the same row of square grid of processes. Finally, process P0 gathers accumulated partial sum on each process to obtain the resultant vector y.

  • Input
  • Format for the input files are given below.

    Input file 1

    The input file for the matrix should strictly adhere to the following format.

    #Line 1 : Number of Rows (m), Number of columns (n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

    A sample input file for the matrix (16 x 16) is given below :

    16    16

    1.0    2.0    3.0     4.0     2.0     3.0     2.0     1.0    4.0    6.0    7.0     3.0     8.0     8.0     1.0     5.0
    2.0    3.0    4.0     2.0     3.0     2.0     1.0     1.0    6.0    6.0    8.0     9.0     2.0     7.0     2.0     3.0
    3.0    4.0    2.0     3.0     2.0     1.0     1.0     7.0    2.0    4.0    6.0     8.0     5.0     2.0     7.0     15.0
    4.0    2.0    3.0     2.0     1.0     1.0     4.0     2.0    3.0    6.0    5.0     1.0     4.0     3.0     8.0     14.0
    2.0    3.0    2.0     6.0     2.0     3.0     2.0     1.0    8.0    2.0    9.0     7.0     7.0     0.0     4.0     17.0
    8.0    2.0    5.0     6.0     3.0     9.0     7.0     3.0    3.0    2.0    1.0     1.0     2.0     1.0     1.0     10.0
    2.0    1.0    4.0     3.0     2.0     1.0     3.0     3.0    7.0    8.0    9.0     1.0     2.0     2.0     4.0     6.0
    4.0    1.0    2.0     1.0     2.0     3.0     4.0     3.0    6.0    3.0    4.0     8.0     6.0     9.0     1.0     31.0

  • Output
  • Process with rank 0 prints the final matrix vector product

    Example 5.8:







    Description for implementation of MPI program to compute the Matrix Matrix Multiplication using self-scheduling algorithm
    (Download MPI - C Language source codes : mm_mult_master_self_schd.c       mm_mult_slave_self_schd.c )
    (Download MPI - Fortran 77 language source codes : mm_mult_master_self_schd.f       mm_mult_slave_self_schd.f )
    (Download input files : vdata1.inp     and     vdata2.inp )
  • Objective
  • Write a MPI program, for computing the matrix-matrix multiplication on p processors of message passing cluster using Self-Scheduling algorithm.

  • Description
  • This example illustrates , one of the most common parallel algorithm prototype , the Self-Scheduling or Master-Slave algorithm. This example is chosen not because it illustrates the best way to parallelize this particular numerical computation (it doesn't), but it illustrates the basic MPI library calls like, MPI send and MPI receive in the context of fundamental type of parallel algorithm applicable in many situations.

    We assume that a square matrix A of size n is available on the master process with rank 0 and another square matrix B of size n is available on all the slave processes ,whose rank starts from 1 onwards. The idea is that the master process, distributes the work load to slave processes. When the slave finishes its workload, it informs the master , about the completion of the task assigned and then master assigns a new workload to the slave . This is very simple paradigm where the coordination is done by master. Here, the slave processes do not have to communicate with one another. This communication among the master and the slaves is shown in Figure 13.




    Figure 13. Communication pattern among master and slave in self scheduling paradigm.

    The master process with rank 0 stores the final output square matrix C of size n . The master process receives whole row of the product matrix C from any slave, and sends the next task (row of matrix A) to that slave processes. In other words, completion of one task by a slave is considered to be a request for the next task. Once all the tasks have been handed out, termination messages are sent.

    Each slave process, after receiving matrix B,  enters a loop which is terminated after receiving the termination message from master. The body of the loop consists of receiving the row of the matrix A, forming the entries Ci, j of required row by doing computation with the received row of the matrix A with the available matrix B , and sending the computed row of the product matrix.

  • Input
  • Assume A and B are real square matrices of size n and the number of rows n should be greater than or equal to number of processes p. Process 0 reads the input matrices A and B. Format for the input file is given below.

    The input file for the matrices A and B should strictly adhere to the following format.
    #Line 1 : Number of Rows (n);   Number of columns(n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

  • Input file &
  • Input file 1
    A sample input file for the matrix A (8 x 8) is given below

    8    8
    1.0    2.0    3.0     4.0     2.0     3.0     2.0     1.0
    2.0    3.0    4.0     2.0     3.0     2.0     1.0     1.0
    3.0    4.0    2.0     3.0     2.0     1.0     1.0     1.0
    4.0    2.0    3.0     2.0     1.0     1.0     4.0     2.0
    2.0    3.0    2.0     1.0     2.0     3.0     2.0     2.0
    3.0    2.0    1.0     1.0     2.0     1.0     1.0     1.0
    2.0    1.0    4.0     3.0     2.0     1.0     3.0     3.0
    4.0    1.0    2.0     1.0     2.0     3.0     4.0     3.0

    Input file 2


    A sample input file for the matrix B (8 x 8) is given below

    8   8
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0
    1.0    2.0    3.0     4.0     2.0     1.0     2.0     1.0

  • Output

    Process 0 prints final matrix-matrix product matrix C. The output of the matrix - matrix multiplication is given below :

    18.0   36.0   54.0   72.0   36.0   18.0    36.0   18.0
    18.0   36.0   54.0   72.0   36.0   18.0    36.0   18.0
    17.0   34.0   51.0   68.0   34.0   17.0    34.0   17.0
    19.0   38.0   57.0   76.0   38.0   19.0    38.0   19.0
    17.0   34.0   51.0   68.0   34.0   17.0    34.0   17.0
    12.0   24.0   36.0   48.0   24.0   12.0    24.0   12.0
    19.0   38.0   57.0   76.0   38.0   19.0    38.0   19.0
    20.0   40.0   60.0   80.0   40.0   20.0    40.0   20.0

  • Example 5.9:



    Description for implementation of MPI program to compute the Matrix Matrix Multiplication using block checkerboard partitioning and MPI Cartesian topology
    (Download source codes : mm_mult_cartesian.c     /     mm_mult_cartesian.f)
    (Download input files : mdata1.inp     and     mdata2.inp )
  • Objective
  • Write a MPI program, for computing the matrix-matrix multiplication on p processors of IBM AIX cluster using block checkerboard partitioning of the matrices . Special MPI routines on cartesian topology can be used for checkerboard partitioning of matrices.

    Assume that p= qand the size of square matrices A and B is evenly divisible by q.

  • Description
  • Assume that A and B are square matrices of size n and C be the output  matrix. These matrices are dived into blocks or submatrices to perform matrix-matrix operations in parallel. For example, an n x n matrix A can be regarded as q x q array of blocks Ai, j (0<=i <q, 0<= j < q) such that each block is an (n/q) x (n/q) submatrix. We use p processors to implement the block version of matrix multiplication in parallel by choosing q as a square root of  and compute a distinct block Ci, j on each processor. Block  and cyclic checkerboard partitioning of a 8 x 8 matrix on a square grid (4  x 4) of processors is shown in the Figure 14.



    Figure 14. Checkerboard partitioning of 8 x 8 matrices on 16 processors

    The matrices A and B are partitioned into blocks, A i, j and B i, j (0<=i < q, 0<=j < q) of size  (n/q x n/q)   on each process. These blocks are mapped onto a q x logical mesh of processes. The processes are labeled from P0,0 to Pq-1,q-1. An example of of this situation is shown in Figure 14. Process Pi, j initially store block matrices Ai, j and Bi, j and computes block Ci, j of result matrix. To compute submatrix Ci, j, we need all submatrices, Ai, k and  Bk, j ( 0 <= k < q ). To acquire all the required blocks, an all-to-all broadcast of matrix Ai, j 's  is performed in each row and similarly in each column of matrix Bi, j's. MPI collective communication is used to perform this operations.

    After Pi, j acquires, A i,0 , A i,1 , A i,2 , A i, q-1 and B0, j , B1, j , B2, j , Bq-1, j , it performs the serial block matrix to matrix multiplication and accumulates the partial block matrix Ci, j of matrix C . To obtain the resultant product matrix C, processes with rank 0 gathers all the block matrices by using MPI_Gather collective communication operation.

    MPI provides a set of special routines to virtual topologies. An important virtual topology is the Cartesian topology . This is simply a decomposition in the natural co-ordinate (e.g., x,y,z ) directions.

  • Input
  • The input is given in the same format as explained in Example 5.8 algorithm . . Assume that the number of processes is a perfect square.

  • Output
  • Process with rank 0 prints the  final matrix-matrix multiplication results Example 5.8 algorithm .

    Example 5.10:





    Description for implementation of MPI program to compute the Matrix Matrix Multiplication using block checkerboard partitioning and Cannon's Algorithm and MPI Cartesian topology
    (Download source codes : mm_mult_cannon.c )
    (Download input files : mdata1.inp     and     mdata2.inp )

  • Objective
  • Write a MPI program, for computing the matrix-matrix multiplication on p processors of message passing cluster implementing block checkerboard partitioning of matrices using Cannon's algorithm. Use MPI cartesian toplogy library calls. Assume that  p= q2 and the size of square matrices A and B is evenly divisible by

  • Description
  • Cannon's algorithm is based on cartesian virtual topology. As discussed in Example 5.8 algorithm there are p processors arranged in q x q square grid of processors and the input matrices, A and B are distributed among the processes in checkerboard fashion. It results in constructing p block matrices of A and B. It uses only point-to-point communication for circularly shifting blocks of matrix A and matrix B among p processes.

    The algorithm proceeds in q stages. The first step in this algorithm is to perform initial allignment of the block matrix A and block matrix B. The blocks of matrix A are circularly shifted to the i positions to left in the row of the square grid of processes, where i  is the row number of the process in the mesh. Similarly, blocks of matrix B are circularly shifted j positions upwards, where j is the column number of the process in the processes mesh.  This operation is performed by using MPI_Sendrecv_replace MPI_Send and MPI_Recv is not used for point-to-point communication, because if all the processes call MPI_Send or MPI_Recv in different order the deadlocked situation may arise.

    The algorithm performs the following steps in each stage

    1. Multiply the block of matrix A and matrix B and add the resultant matrix to get the block matrix C, which is initially set to zero.
    2. Circularly shift the blocks of matrix A to left in the rows of the processes and the blocks of matrix B upwards in the columns of the square grid of processes in a wrap around manner.

    The communication steps for 4 x 4 square grid of processors mesh are explained in the Figure 15.

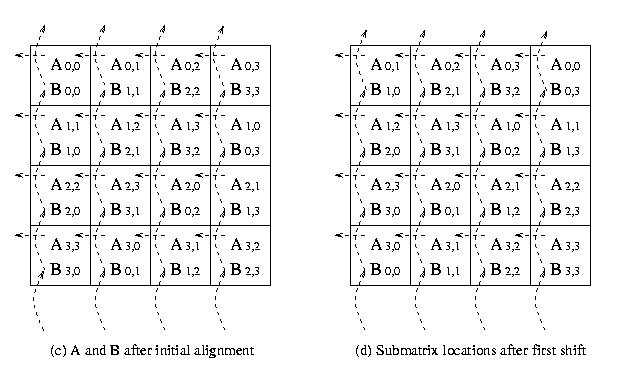

    Figure 15. The communication steps in Cannon's Algorithm on 16 processors
  • Input
  • The input is given in the same format as explained in Example 5.8 algorithm .

  • Output
  • Process with rank 0 prints the final  product matrix and the results are given as in Example 5.8 algorithm .

    Example 5.11:





    Description for implementation of MPI program to compute the Matrix Matrix Multiplication using block checkerboard partitioning and Fox's Algorithm and MPI Cartesian topology
    (Download source codes : mm_mult_fox.c )
    (Download input files : mdata1.inp     and     mdata2.inp )
  • Objective
  • Write a MPI program, for computing the matrix-matrix multiplication on p processors of message passing cluster. Use a special MPI routines on cartesian topology for block checkerboard partitioning of the matrices, Fox's Algorithm.

    Assume that p = q 2 and the size of square matrices A and B is evenly divisible by q

  • Description
  • This algorithm is based on cartesian virtual topology. As discussed in Example 5.8 algorithm , there are p processes arranged in q x q mesh and the input matrices are distributed among the processes in checkerboard fashion. It results in constructing p block matrices of A and B. The algorithm uses two types of communication, firstly it uses one-to-all broadcast for blocks of matrix A in processes rows. Similarly blocks of matrix B are circularly shifted j positions upwards, where j is the column of the process in the processes mesh  using MPI_Sendrecv_replace. In this case MPI_Send and MPI_Recv is not used for point-point communication because if all the processes call MPI_Send or MPI_Recv in different order the deadlocked situation may arise.

    The algorithm proceeds in n = q stages and it performs the following step in each stages.
    1. Broadcast the block of matrix A on the diagonal process of a particular row in the square grid of processes to other processes in the same row.
    2. Multiply the block of matrix A and matrix B and add the resultant matrix to get the block matrix C which is initially set to zero.
    3. Circularly shift the blocks of matrix B upwards in the processes columns and receives a fresh block of matrix B from the process below it. This selection is done in wrap around manner.
    4.Select the block of matrix A for the next row broadcast. If Ai, j was broadcast in the current step then select Ai,(j+1)mod q th block for the next broadcast. This selection is also done in wrap around manner.


    The communication steps for 4 x 4 square grid of processors are explained in the Figure 16.

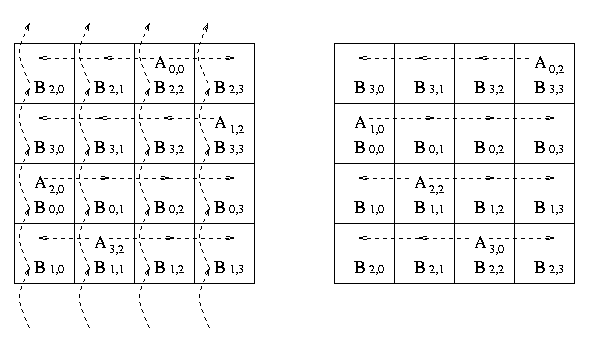

    Figure 16. The communication steps in Fox's Algorithm on 16 processors
  • Input
  • The input is given in the same format as explained in Example 5.8 algorithm .

  • Output
  • Process with rank 0 prints the final matrix-matrix product and the result are given as in Example 5.8 algorithm .

    Example 5.12:


    MPI program for implementation of sparse matrix and Vector Multiplicaiton using block-striped partitioning
    (Download source code : sparse_matvect_fort.tar )

  • Objective
  • Write a MPI program on sparse matrix multiplication of size n x n and vector of size n on p processors of Parallel Processing Platform Assume that n is evenly divisible by p .

  • Efficient storage format for sparse matrix
  • Dense matrices are stored in the computer memory by using two-dimensional arrays. For example, a matrix with n rows and m columns, is stored using a n x m array of real numbers. However, using the same two-dimensional array to store sparse matrices has two very important drawbacks. First, since most of the entries in the sparse matrix are zero, this storage scheme wastes a lot of memory. Second, computations involving sparse matrices often need to operate only on the non-zero entries of the matrix. Use of dense storage format makes it harder to locate these non-zero entries. For these reasons sparse matrices are stored using different data structures.

    The Compressed Row Storage format (CRS) is a widely used scheme for storing sparse matrices. In the CRS format, a sparse matrix A with n rows having k non-zero entries is stored using three arrays: two integer arrays rowptr and colind, and one array of real entries values. The array rowptr is of size n+1, and the other two arrays are each of size k. The array colind stores the column indices of the non-zero entries in A, and the array values stores the corresponding non-zero entries. In particular, the array colind stores the column-indices of the first row followed by the column-indices of the second row followed by the column-indices of the third row, and so on. The array rowptr is used to determine where the storage of the different rows starts and ends in the array colind and values. In particular, the column-indices of row i are stored starting at colind [rowptr[i]] and ending at (but not including) colind [rowptr[i+1] ]. Similarly, the values of the non-zero entries of row i are stored at values [rowptr[i] ] and ending at (but not including) values [rowptr[i+1] ]. Also note that the number of non-zero entries of row i is simply rowptr[i+1]-rowptr[i].

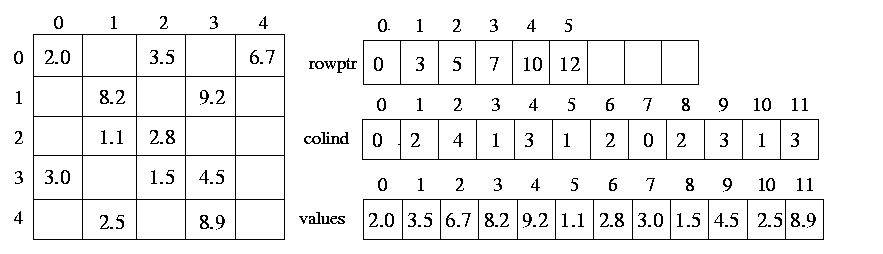

    Figure 19   Representation of Sparse Matrix in Compressed Row Storage ( CRS ) format


  • Serial sparse matrix vector multiplication
  • The following function performs a sparse matrix-vector multiplication [y]={A} {b} where the sparse matrix A is of size n x m, the vector b is of size m and the vector y is of size n. Note that the number of columns of A (i.e., m ) is not explicitly specified as part of the input unless it is required.

    void SerialSparseMatVec(int n, int *rowptr, int *colind, double *values
    double *b, double  *y)

          int i, j, count ;
          count = 0;
          for(i=0; i<n; i++)
          {
            y[i] = 0.0;
            for (j=rowptr[i]; j<rowptr[i+1];   j++)
              y[i] += value [count] * b [colind[j]];
            count ++;
          }
    }

  • Description of parallel algorithm
  • Consider the problem of computing the sparse matrix-vector product [y] = {A}{b} where A is a sparse matrix of size m x n and b is a dense vector using block striped partitioning . In the block striped partitioning of a matrix, the matrix is divided into groups of complete rows or columns, and each process is assigned one such group.

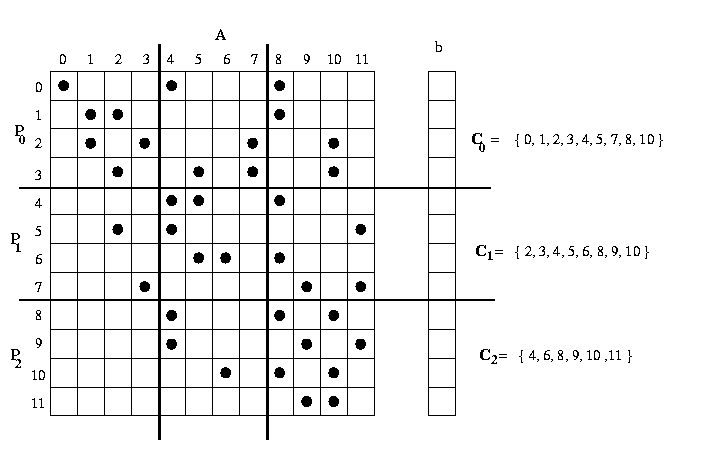

    Figure 20. The data needed by each processor in order to compute the sparse matrix-vector product

    In Figure 20, a sparse matrix A and the corresponding vector b are distributed among three processors. Note that processor po needs to receive elements {4,5,7} from processor p1 and elements {8,10} from processor p2 . However, processor p2 needs to receive only elements {4,6} from processor p1. The process p1 needs to receive elements {2,3} from process p0 and elements {8,9,11} from process p2.

    Since the exact position of the non-zeros in A is not known a priori, and is usually different for different sparse matrices, we can not write a message-passing program that performs the required data transfers by simply hard coding. The required communication patterns may be different for different processes. That is, one process may need to receive some data from just a few processes whereas another process may need to receive data from almost all processes.

    The present algorithm partitions the rows of matrix A using block-striped partitioning and the corresponding entries of vector b among the processes, so that each of the p processes gets m/p rows of the matrix and n/p elements of the vector. The portion of the matrix A obtained by block-striped partitioning, is assigned to each process and the non-zero entries of the sparse matrix A is stored using the compressed storage (CSR) format in the arrays rowptr, colind and values. To obtain the entire vector on all processes, MPI_Allgather collective communication is performed.

    Each process now is responsible for computing the elements of the vector y that correspond to the rows of the matrix that it stores locally. This can be done as soon as each process receives the elements of the vector b that are required in order to compute these serial sparse dot-products.

    This set of b elements depends on the position of the non-zeros in the rows of A assigned to each process. In particular, for each process pi, let Ci be the set of column-indices j that contain non-zero entries overall the rows assigned to this process. Then process pi needs to receive all the entries of the form bj for all j in Ci .

    It is a simple parallel program but inefficient way of solving this problem because to write a message-passing program in which all the processes receive the entire b vector.  If each row in the matrix has on the average d non-zero entries, then each process spends (md/p) time in serial algorithm. The program will achieve meaningful speedup only d >= p . That is, the number of non-zero entries at each row must be at least as many as the number of processes. This scheme performs well when the sparse matrices are relatively dense. However, in most interesting applications, the number of non-zero entries per row is small, often in the range of 5 to 50. In such cases, the algorithm spends more communication time relative to computation.

    This example is chosen not because it illustrates the best way to parallelize this particular sparse numerical computations, because it illustrates the basic MPI_Allgather operations and CRS scheme in the context of parallel algorithm, applicable in many situations.

  • Remark
  • One can design efficient algorithm by reducing communication cost by storing the necessary entries of the vector b . In the above algorithm, the overall communication performed by each process can be reduced if each process receives from other processes only those entries of the vector b are needed. In this case, we further reduce the communication cost by assigning only rows of the sparse matrix to processes such that the number of rows required but remotely stored entries of the vector b is minimized. This can be achieved by performing a min-cut partitioning of the graph that corresponds to the sparse matrix. We first construct graph corresponds to sparse matrix and the graph is partitioned among p processes. The off process communication is developed to identify the required values of the vector b residing on neighbouring processes.

  • Input
  • The input is available in following format.
    Assume that the sparse square matrix is of size n and is divisible by the number of processes p .  Assume that the vector is of size n. For convenience, the sparsity is defined as maximum non-zero elements in a row, over all the rows. In the given example sparsity is 4. All the entries in the sparse matrix are floating point numbers. Process 0 reads the data. You have to adhere strictly the following format for the input files.
    Input file 1

    # Line 1 : (Sparsity value
    # Line 2 : (Size of the sparse matrix
    # Line 3 : (data in row-major order) This means that the data of second row follows that of the first and so on.

    A sample input file for the sparse matrix of size 16 x 16 is given below

    16
    5.0    0.0    3.0    0.0    3.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    5.0    0.0
    0.0    2.0    3.0    0.0    0.0    0.0    0.0    1.0    0.0    0.0    0.0    8.0    0.0    0.0    0.0    0.0
    0.0    0.0    3.0    0.0    8.0    0.0    1.0    0.0    0.0    0.0    0.0    0.0    0.0    7.0    0.0    0.0
    0.0    0.0    2.0    7.0    0.0    0.0    0.0    3.0    0.0    0.0    0.0    6.0    0.0    0.0    0.0    0.0
    0.0    0.0    3.0    0.0    6.0    0.0    0.0    0.0    7.0    0.0    0.0    4.0    0.0    0.0    0.0    0.0
    1.0    0.0    0.0    0.0    3.0    1.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    6.0    0.0
    0.0    0.0    3.0    0.0    0.0    0.0    8.0    1.0    0.0    0.0    0.0    0.0    3.0    0.0    0.0    0.0
    0.0    0.0    0.0    0.0    8.0    0.0    0.0    2.0    0.0    1.0    0.0    0.0    0.0    0.0    1.0    0.0
    0.0    0.0    0.0    4.0    0.0    0.0    0.0    0.0    3.0    0.0    1.0    0.0    0.0    8.0    0.0    0.0
    0.0    0.0    0.0    0.0    3.0    0.0    8.0    0.0    0.0    7.0    0.0    0.0    0.0    0.0    0.0    1.0
    0.0    0.0    0.0    0.0    3.0    0.0    6.0    0.0    0.0    0.0    8.0    0.0    0.0    0.0    4.0    0.0
    0.0    0.0    7.0    0.0    4.0    0.0    0.0    0.0    0.0    0.0    0.0    5.0    0.0    6.0    0.0    0.0
    0.0    0.0    0.0    5.0    0.0    0.0    0.0    3.0    0.0    0.0    1.0    0.0    4.0    0.0    0.0    0.0
    0.0    0.0    8.0    0.0    0.0    0.0    0.0    5.0    1.0    0.0    0.0    0.0    0.0    8.0    0.0    0.0
    0.0    0.0    0.0    3.0    0.0    0.0    0.0    0.0    1.0    0.0    0.0    5.0    0.0    0.0    7.0    0.0
    0.0    0.0    3.0    0.0    0.0    0.0    0.0    1.0    0.0    0.0    0.0    4.0    0.0    0.0    0.0    1.0

    Input file 2

    # Line 1 : (Size of the vector
    # Line 2 : (data
    A sample input file for the sparse vector of size 16 is given below :
    16
    1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0

  • Output
  • Process with rank 0 prints the final sparse matrix-vector product.
    16.0    14.0    19.0    18.0    20.0    11.0    15.0    12.0    16.0    19.0    21.0    22.0    13.0    22.0    16.0    9.0

    Example 5.13:

    Efficient implementation of sparse matrix and Vector Multiplicaiton using block-striped partitioning

  • Objective
  • You have to write an efficient parallel program on sparse matrix of size n and the vector of size n multiplication that executes on p processors of message passing cluster. Assume that n is evenly divisible by p . In order to make your programs more portable, you will be using the MPI (Message Passing Interface).

  • Background
  • We can classify matrices into two broad categories according to the kind of algorithms that are approriate for them. The first category is dense or full matrices with few or no zero entries. The second category is sparse matrices in which a majority of the entries are zero. The computation and communication performed by all the message-passing programs presented  so far (matrix-vector and matrix-matrix algorithms for dense matrices) are quite structured. In particular, every processor knows with which processors it needs to communicate and what data it needs to send and receive . This information is used to map the computation on to the parallel computer and to program the required data transfer. However, there are problems in which we cannot determine a priori the processors that needs to communciate and what data they need to transfer. These problems often involve operations on irregular grid or unstructured data. Also, the exact communication patterns are specific to each particular problem and it may vary from problem to problem.

    Message-passing programs in order to solve these problems efficiently often need to dynamically determine the communication patterns of the algorithm. That is, the parallel program consists of two conceptual steps. The first step is responsible for determining which processors need to communicate with each other and what data they need to send, and the second step is  processor that performs the actual computation. The Compressed Row Storage format (CRS ) is used for storing sparse matrices in the parallel program. The details are given in Example 5.12 algorithm .

  • Unstructured Sparse Matrix and its associated Graph representation
  • Let A be an n x n unstructured sparse matrix that has a symmetric structure. Let G (A) be a graph with n nodes such that there is an edge between the ith and the jth nodes of G(A) if and only if A (i, j) 0 (or A (j,i)  0). The matrix A is thus a weighed adjacency matrix of graph G(A) in which each node corresponds to a row of A. A scalable parallel implementation of matrix-vector multiplication exists for a sparse matrix A provided that it is the adjacency matrix of a planar graph G(A). A graph is planar if and only if it can be drawn in plane such that no edges cross each other. Note that planarity of G(A) is a sufficient, but not a necessary condition for the multiplication of matrix A with a vector b to be scalable.

    If the graph G(A) is planar, it is possible to partition its nodes (and hence, the rows of A) among processors to yield a scalable parallel formulation for sparse matrix-vector multiplication. The amount of computation that a processor performs is proportional to the total number of nodes in that processor's partition. If G(A) is planer, the total number of words that a processor communicates is proportional to the number of nodes lying along the periphery of that processor's partition. Furthermore, if G(A) is planar, the number of processors with whome a given processor communicates is equal to the number of partotions with whom that processor's partition shares its boundaries. Hence, by reducing the number of partitions (thus, increasing the size of partitions) it is possible to increase the computation to communication ratio of the processors.

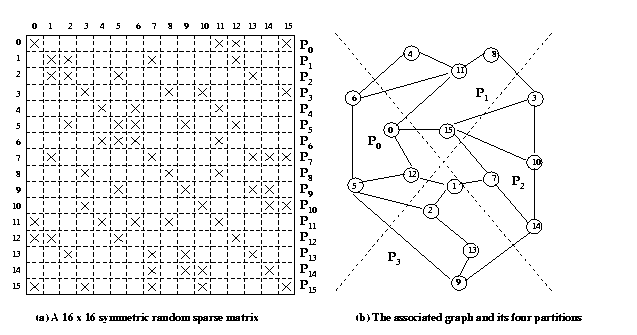

    Figure 21. Sparse matrix and its associated graph

    Above figure 21 shows a structurally symmetric randomly sparse matrix and its associated graph. The vector is partitioned among the processors such that its ith element resides on the same processor that stores the ith row of the matrix. Figure 21 also shows the partitioning of the graph among processors and the corresponding assignment of the matrix rows to processors. While performing matrix-vector multiplication with this partitioning, the ith row of A requires only those elements of the vector whose indices correspond to the neighbours of the ith node in G(A). The reason is that by the construction of G(A), the ith row has a non-zero element in the jth column if and only if j is connected to i by an edge in G(A). As a result, a processor performs communication for only those rows of A that correspond to the nodes of G(A) lying at the boundary of the processor's partition. If the graph G(A) partitioned properly, the communication cost can be reduced significantly both in terms of the number of messages and the volume of communication.

    Partitioning an arbitrary graph G(A) to minimize interprocessor communication is a hard combinatorial problem. However, there are several good heuristics for graph partitioning. These partitioning techniques are described in detail. Often, the origin of the unstructured sparse matrix A lies in a finite element problem. In such a case, the graph G(A) can be derived from the finite element graph directly.

  • Description of efficient parallel algorithm
  • Consider the problem of computing the sparse matrix-vector product y = Ab where the sparse matrix A is of size n x m , the dense vector b is of size m and the vector y is of size n.  For simplicity, we consider m = n . This can be achieved by performing a min-cut partitioing of the graph that correponds to the sparse matrix by designing efficient algorithm by reducing communication cost by storing the necessary entries of the vector b.

    In the Example 5.12 algorithm , the overall communication performed by each processor can be reduced if each processor receives from other processors only those entries of the vector b are needed. In this case, we furhter reduce the communication cost by assigning only rows of the sparse matrix to processors such that the number of required but remotely stored entries of the vector b is minimized. For many important problems, it is possible to reduce the communication cost down to () or (n/p)2/3. This can be achieved by performing a min-cut partitioing of the graph that correponds to the sparse matrix.

    Since the structure of the sparse marix differs from instance to instance, the pattern of data transfer among processors has to be determined during the execution of the program. For such programs, each processor first determines with which processors it needs to communicate and what elements it needs to send and receive . It then uses this information to perform the actual data transfers and finally proceeds to compute the matrix-vectir product corresponding to the locally stored rows of the matrix.  Here, we develop CommInterfaceValues a communication module which performs the required communication, so that each processor has the entries of the b vector that are needed to perform the matrix-vector multiplication of its local rows. Each procesor uses the CommInfoType data structure to store information about its communication pattern and it is explained below.

  • Details of CommInfoType data structure
  •    typedef struct {
          int nsnbrs, *spes;
          int nrnbrs, *rpes;
          int *sendptr, *recvptr;
          int *sendind, *recvind;
          double *sendbuf, *recvbuf
       } CommInfoType;

    The variable nsnbrs and nrnbrs store the number of processors that this processor needs to send and to receive data, respectively.We can think of these processors as being the neighbouring processors. The actual ranks of these processors is stored in the arrays spes and rpes for the sending and receiving processors, respectively. The array spes is of the size nsnbrs, and the array rpes is of size nrnbrs. The array sendptr and sendid store the elements of the b vector to be sent to each processor. In particular, the indices of the elements that are sent to the i th neighboring are stored in sendind starting at location sendptr [I ] and ending at location sendptr [I+1] - 1. The array sendptr is of size (nsnbrs+1), and the size of the array sendind is equal to the sum of the number of elements that are sent to all the neighboring processors. The array recvptr and recvind store the elements of the b vector that are received from the neighboring processors.


    Figure 22. The data needed by each processes - to compute the sparse matrix-vector product

    In particular, the indices of the elements that are received from the ith neighboring are stored in recvind starting at location recvptr [I ] and ending at location recvptr[ I+1]-1.The array recvptr is of size (nrnbrs + 1), and the size of the array recvind is equal to the sum of the number of elements that are received from all the neighboring processors. Finally, the array sendbuf and recvbuf are used as buffer to store the element of the b vector that are sent and received. These arrays are of the same size as the corresponding sendid and recvind arrays, respectively. The following Figure 23 shows the values of the CommInfoType data structure for the sparse matrix as shown in the above Figure 22 for each one of the three processors.

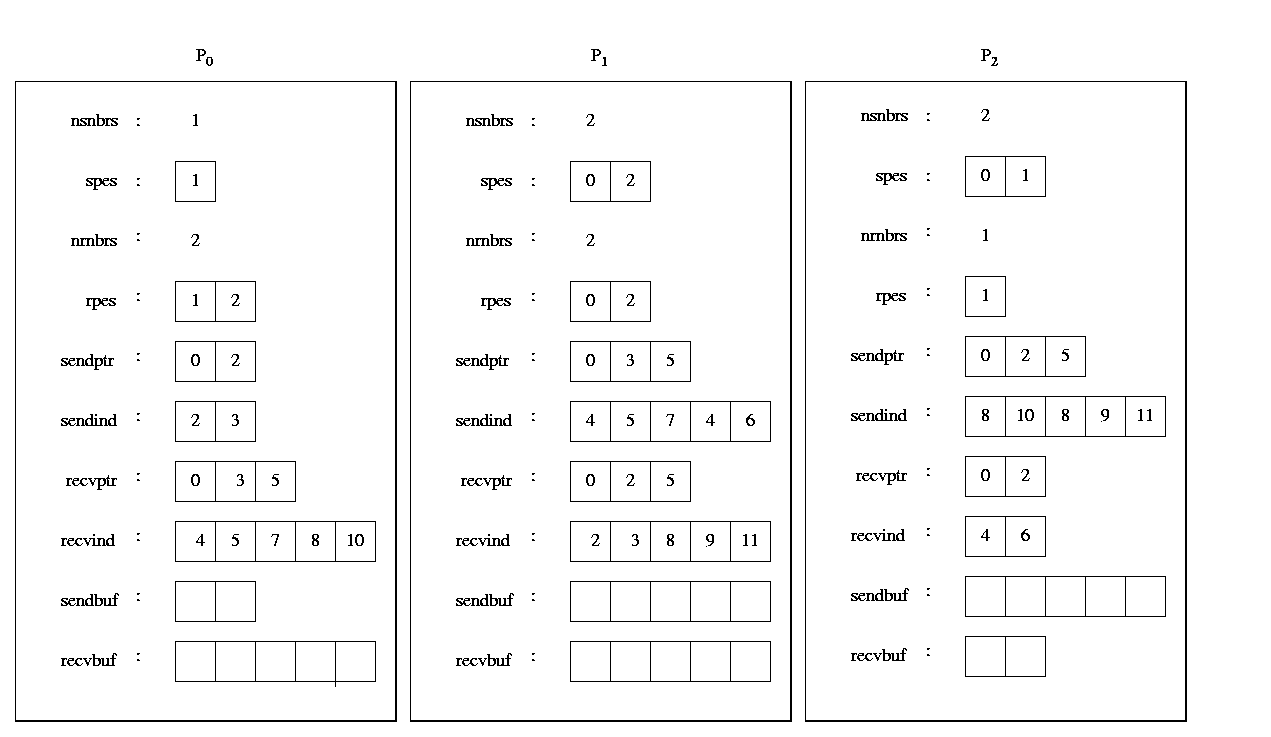

    Figure 23. The values of the CommInfoType data structure for the sparse matrix
  • Details of implementation
  • In the new program, we replace MPI_ALLGATHER communication operation by efficient point-point and global communication functions to perform minimum amount of communication that is needed. It receives from each processor the required elements of vector b, and sends to other processors the locally stored b elements that is needed. If d is the average number of non-zeros on each row, then in the worst case CommInterfaceValues will receive and send max{nd/p,n} elements. However, if the sparse matrix is distributed among the processor so that only a small number of remotely stored entries of b are needed, then CommInterfaceVertices will communicate only this small number of entries. In particular, for sparse matrices arising in numerical simulations on two-dimensional domains, the matrix can be distributed among the processor such that only     () remote entries of b are needed. In this case, each processor will send and receive only  () elements. The overall amount of time required by the CommInterfaceVertices depends not only on how many elements every processor needs to send and receive but also on which processsors and in which order these elements are sent. In particular, if every processor needs to send and receive data from all the processors, then the send and receive operations may lead to contention. This contention can be eliminated if we use a more elaborate communication protocol as discussed. In general, if every processor needs to send and receive from only a small number of processors, contention problems are avoided. The important steps in the algorithm is explained as below.

    Step 1 : Determine the entries of the vector b that need to be received from remote processors (This is done by scanning the column indices of the local rows of the matrix. Every time we first encounter column index k outside the range of the local stored entries of b , we insert k into the array rentires entries. The array rentries contains the nrecv entries of vector b that need to be received). The array rentries is dynamically allocated and its purpose is to temporarily store the required remote entries of vector b.

    Step 2 : The vector gvec is used to determine whether or not a given column-index that corresponds to a remotely stored entry has been encoutered before. This is done as follows. We initially set all the entries of vector gvec to zero and then set the entries that correspond to the locally stored entries of b to one. Now as we scan the rows of the local matrix, for each column-index k we check the value of gvec [k]. If it is zero, then we set it to one and put k into the rentries array, otherwise we do nothing. This scheme ensures that we place k into rentries only if it is a remotely stored entry and this is the first time we encountered.

    Step 3 : At this point the array rentries contains the nrecv entries of vector b that need to be received. Determine from which processors these entries are received and set-up the corresponding data structure in cinfo. This is done by first sorting in increasing order the remote entries. Next we scan this sorted list and determine the processors that store these elements.In doing so, we use the fact that processor Pi stores the entries of the b vector starting at location (i+1)*nlocal - 1, and the fact that the array rentries is now sorted. The computed information is stored temporarily in the arrays pes and ptr, whose function is identical to that of the arrays rpes and recvptr of cinfo, respectively. Finally, appropriate storage is allocated in the cinfo for the relevant fields, and the information is copied there.

    Step 4 : The next step in the SetUpCommInfo function each processor notifies the processor from which it needs to receive b-vecor entries. Since the matrix A can be non-symmetric, the only way for these processors to know that they need to send information is by performing this request. This is done as follows. First, the processors performs an ALLTOALL communication operation in which every processor sends to every to every other processor the number of entries it needs to receive from it. This is done in the following code fragment. Two dynamically allocated arrays receives and sends are used, each of size npes. Each processor puts in receives[i] the amount of entries it needs to receive from processor Pi. At the end of the ALLTOALL operation, each processor stores in the array sends the number of elements it needs to send. In particular, sends [i] stores the number of entries that need to be send to processor Pi.

    Step 5. : Now, each processor scans the array sends and determines how many elements it needs to send and to which processors. This information is initially stored in pes and ptr, but are eventually copied into the spes and sendptr fields of cinfo. Also, every processor allocates space for the sendind and sendbuf fields of cinfo.

    Step 6. : So far, each processor knows how many entries it needs to send, but it does not know exactly which entries to send. This is accomplished by having each processor send the list of entries it needs to receive from the corresponding processors. This list of entries is sent from the array recvind and it is stored in the array sendind of the cinfo data structure. Since each processor knows how many and where it needs to send, it also knows where to place the received indices. This communication is done by using non-blocking SEND and RECEIVE operations as follows.

    Step 7. : The following CommInterfaceValues performs the required communication, so that each processor has the entries of the b vector that are required to perform the matrix-vector multiplication of its local rows. This communication is performed by using point-to-point SEND and RECEIVE operations.

    Step 8. : By using the information stored in the cinfo data structure, each processor knows what it needs to receive and from which processors. Thus, it proceeds to issue nrnbrs non-blocking RECEIVE operations. The received elements are stored in the corresponding position of the recvbuf array.

    Now its processor sends the appropriate local entries of the b vector to processors that need them. This is done in two steps. In the first step, processor gathers all these indices (for all the processors) into the array sendbuf. This is done by simply scanning the entire sendind and storing the entries of the b vector in the corresponding locations of sendbuf. In the second step, each processor issues nsnbrs SEND operations to send these elements of vector b.

    Step 9 : Compute serial sparse matrix vector multiplication on every processor. Collect the result on master processor.

  • Remarks
  • Despite the fact that our new program can potentially perform significantly less communication, there may be cases in which our earlier sparse matrix-vector program runs faster. This is because the new program has to spend some time in function SetUPCommInfo determining the communication pattern. If we want to perform a single matrix-vector multiplication involving matrix A, then the time required by SetUpCommInfo may outweigh the time saved in communication.

    Fortunately, in most applications we need to multiply A multiple times (each time with a different vector). In such cases, we need to determine the communication pattern only once and then use it for matrix-vector product. Furthermore, we can use the same communication pattern even when the values of A change (but not the position of the non-zeros). Thus, the time required by SetUpCommInfo becomes insignificant compared to the overall savings in communication. Also note that the communication performed in the SetUpCommInfo function can be eliminated when matrix A has a symmetric structure.

    Even though our new program scales with an increasing number of processors, its memory requirements does not. This is because , every processor allocates a vector global_b of size n which is used to both determine which remote stored entries of b are needed and also is used to store these received entries. Program can be modified so that it does not need to allocate the vector thereby saving memory of the vector global_b .

  • Input
  • Assume that the input is given in the following format.

    Assume that the sparse matrix is square of size n and the vector of size n and 'n' is divided by the number of processors p . All the entries in the sparse matrix are floating point numbers. Process 0 should read all the data. You have to adhere strictly the following format for the input file.

    #Line 1 : (Size of the sparse matrix)
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)
    #Line 3 : (Size of the vector)
    #Line 4 : (data)

    A sample input file for the sparse matrix (16 x 16) and vector size (16) will look as follows
    16
    5.2    0.0    3.4    0.0    3.8   0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    5.3    0.0
    0.0    2.0    3.4    0.0    0.0    0.0    0.0    1.9    0.0    0.0    0.0    8.2    0.0    0.0    0.0    0.0
    0.0    0.0    3.4    0.0    9.5    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    7.1    0.0    0.0
    0.0    0.0    2.6    7.9    0.0    0.0    0.0    3.4    0.0    0.0    0.0    6.3    0.0    0.0    0.0    0.0
    0.0    0.0    3.4    0.0    6.8    0.0    0.0    0.0    7.2    0.0    0.0    4.6    0.0    0.0    6.7    0.0
    1.8    0.0    0.0    0.0    3.4    1.5    0.0    0.0    0.0    0.0    0.0    0.0    0.0    0.0    6.9    0.0
    0.0    0.0    3.4    0.0    0.0    0.0    8.3    1.6    0.0    0.0    0.0    0.0    3.6    0.0    0.0    0.0
    0.0    0.0    0.0    0.0    9.2    0.0    0.0    2.7    0.0    0.0    0.0    0.0    0.0    0.0    1.9    0.0
    0.0    0.0    0.0    4.4    0.0    0.0    0.0    0.0    3.5    0.0    1.1    0.0    0.0    8.6    0.0    0.0
    0.0    0.0    0.0    0.0    3.4    0.0    9.1    0.0    0.0    7.6    0.0    0.0    0.0    0.0    0.0    0.0
    0.0    0.0    0.0    0.0    3.7    0.0    6.5    0.0    0.0    0.0    8.5    0.0    0.0    0.0    4.6    0.0
    0.0    0.0    7.2    0.0    4.8    0.0    0.0    0.0    0.0    0.0    0.0    5.8    0.0    6.6    0.0    0.0
    0.0    0.0    0.0    0.3    0.0    0.0    0.0    6.2    0.0    0.0    1.9    0.0    4.5    0.0    0.0    3.3
    0.0    0.0    8.4    0.0    0.0    0.0    0.0    5.4    0.0    0.0    0.0    0.0    0.0    9.2    0.0    0.0
    0.0    0.0    0.0    3.2    0.0    0.0    0.0    0.0    0.3    0.0    0.0    5.6    0.0    0.0    7.3    0.0
    0.0    0.0    3.4    0.0    0.0    0.0    0.0    0.2    0.0    0.0    0.0    4.6    0.0    0.0    0.0    0.4

    16
    3.8    2.0    3.5    8.2    1.6    4.3    6.3    9.2    7.1    1.6    4.2    6.5    5.0    2.2    2.5    7.0

  • Output
  • Process 0should print the final sparse matrix vector product

    Centre for Development of Advanced Computing
