hyPACK-2013 : HPC GPU Cluster : NVIDIA CUDA - Health Monitoring

The research efforts on HPC GPU Cluster are aimed to address some of the challenges with building and running GPU clusters in Parallel computing environments. The focus is on cluster architecture, power consumption on each nodes for various work-loads, resource allocation and sharing as part of management software, health monitoring and data security, Programming models and applications.

A prototype ideal HPC GPU Cluster should support diffrent heterogeneous programming features on CPU-GPU acclerators is used for laboratory sessions. The cluster can be made \93adaptive\94 to the application it is running, assigning the most effective resources in real-time as per application demands, without requiring modifications to the application that is written using different progrmaming is used.

Example 1.1

Write MPI \96 CUDA program to perform device query operation on each GPU of a node in a HPC GPU Cluster

Example 1.2

Write MPI \96 CUDA program to measure the host-to device bandwidth on each node with single & mutliple CUDA enabled NVIDIA HPC GPU Cluster

Example 1.3

Write MPI \96 CUDA program to measure the host-to device bandwidth on each node with single or multiple CUDA enabled NVIDIA HPC GPU Cluster (Assignment)

Example 1.4

Write MPI CUDA test program to perform synchronous and asynchronous APIs for performing host-GPU I/O, overlapping GPU computation and I/O from independent execution streams kernels in a GPU cluster environment for Matrix-matrix Computations (Assignment)

Example 1.5

Write a test suite based on GPU device virtualization to execute few hundred CUDA kernels on HPC GPU Cluster using CUDA wrapper test (Assignment)

Example 1.6

Write MPI-Pthread-CUDA test Program to perform thread affinity mapping, to ensure an optimal mapping of GPU to CPU cores in a HPC GPU Cluster environment (Assignment)

Example 1.7

Write MPI-Pthread-CUDA test Program to demonstrate compute-exclusive mode and normal mode features in a HPC GPU Cluster environment (Assignment)

Example 1.8

Write MPI-Pthread-CUDA test Program to demonstrate list of pre-node job allocation features in a HPC GPU Cluster environment (Assignment)

Example 1.9

Write MPI-Pthread-CUDA test Program to demonstrate list of post-job de-allocation features in a HPC GPU Cluster environment (Assignment)

Application Kernels & Matrix computations - Benchmarks

Example 1.10

Write MPI \96 CUDA program to demonstrate maximum achieved performance of DGEMM using CUBLAS libraries on each GPU of HPC GPU Cluster (Assignment)

Example 1.11

Write MPI \96 CUDA program to calculate maximum achieved performance of DGEMM on each node of HPC GPU Cluster using ATALS on host-cpu and CUBLAS libraries on GPUs (Assignment)

Example 1.12

Write MPI \96 CUDA program to perform GPU-to-GPU Communication using GPUDirect of NVIDIA in a HPC GPU Cluster environment for Solution of PDEs by Finite Difference Method (Assignment)

Example 1.13

Write MPI \96 CUDA program to perform communication among MPI processes using CUDA 5.0 features in a HPC GPU Cluster environment for Solution of PDEs by Finite Difference Method (Assignment)

Description of Programs

Make File : (Download Make File : Makefile-GPUCluster-health-check )


Example 1.1: Write MPI-CUDA Program to demonstrate device query operation on each node with single CUDA enabled NVIDIA GPU in an HPC GPU Cluster environment.
(Download source code : ClusterHomogenity-devicequery.zip )
  • Objective

    Write a MPI-CUDA program, to demonstrate device query operation on each node with single CUDA enabled NVIDIA GPU in an HPC GPU Cluster.

  • Description

    Querying Devices

    An easy interface to determine the information such as to find mechanism for determining which devices (if any) are present and what capabilities each device supports is provided. First, to get count of how many CUDA devices in the system are built on CUDA Architecture call the API cudaGetDeviceCount(). After calling cudaGetDeviceCount(), then iterate through the devices and query relevant information about each device. The CUDA runtime returns device properties in a structure of type cudaDeviceProp. As of CUDA 4.1 & CUDA 5.0, the cudaDeviceProp structure contains the necessary information and most of the information in cudaDeviceProp is self explanatory and commonly used CUDA device properties.

    The description of this example rogram (MPI-CUDA) gathers important parameters from each GPU of a node in a HPC GPU Cluster. In MPI environment each MPI process initiates device query. Master process with rank 0 gathers important parameters CUDA device query from each GPU device on each node of HPC GPU Cluster. The important parameters are printed

  • Input

    • None

  • Output

    • Process 0 prints the maximum achieved bandwidth on each H2D, D2H D2D on each GPU of a each node in HPC GPU Cluster.

Example 1.2: Write MPI - CUDA Program to measure maximum achieved Host-to-Device bandwidth on each node with single CUDA enabled HPC-GPU-Cluster environment .
(Download source code : GPUCluster-max-bandwidth.zip )
  • Objective

    Write a MPI-CUDA Program to demonstrate HPC-GPU-Cluster homogenity and measure maximum achieved host to device band width on GPUs of HPC-GPU-Cluster .

  • Description

    The sustainable bandwidth from the host to device (and vice versa) plays a key role in the acceleration of single DGEMM calls. CUDA offers a fast transfer mode that is enabled when page-locked host memory (sometimes called pinned host-memory) is used. A PCI-e transfer from page-able host-memory incurs in an extra copy on the CPU before it transfers via DMA to the GPU. By using a special memory region, this extra copy can be eliminated. This special allocation is done using the function cudaMallocHost instead of a regular malloc.

    The bandwidth increases for pageable host-memory low and it creases for pinned memory on most of the systems. For most of the computations, an asymmetry in the H2D (host to device) and D2H (device to host) bandwidth exists. The sustained bandwidth is related to the CPU, motherboard chipset, BIOS setting and the OS. The only way to get reliable transfer speed is to measure it.

    CUDA 5.0 supports regular (pageble) and page-locked host memory and this program performs a comparison between regular malloc/free calls and page-locked versions In MPI environment each MPI process initiates query. Master process with rank 0 gathers important parameters CUDA device query from each GPU device on each node of GPU Cluster. The maximum sustainable bandwidth values from H2D and D2H on each GPU to respective node are printed on master process with rank 0. The program uses MPI poit-to-point communication library calls.

  • Input

    • None

  • Output

    • Process 0 prints the maximum achieved bandwidth on each H2D, D2H D2D on each GPU of a each node in HPC GPU Cluster.

Example 1.3: Write MPI \96 CUDA program to measure the host-to device bandwidth on each node with single & mutliple CUDA enabled NVIDIA HPC GPU Cluster
  • Objective

    Write a MPI \96 CUDA program, to demonstrate health monitoring of a large homogeneous HPC GPU Cluster using device query and check GPU memory on GPUs of HPC GPU Cluster

  • Description

    The sustainable bandwidth from the host to device (and vice versa) plays a key role in the acceleration of single DGEMM calls. CUDA offers a fast transfer mode that is enabled when page-locked host memory (sometimes called pinned host-memory) is used. A PCI-e transfer from page-able host-memory incurs in an extra copy on the CPU before it transfers via DMA to the GPU. By using a special memory region, this extra copy can be eliminated. This special allocation is done using the function cudaMallocHost instead of a regular malloc.

    The bandwidth for pageable host-memory is low and it increases for pinned memory on most of the systems. For most of the computations, an asymmetry in the H2D (host to device) and D2H (device to host) bandwidth exists. The sustained bandwidth is related to the CPU, motherboard chipset, BIOS setting and the OS. The only way to get reliable transfer speed is to measure it.

    CUDA 5.0 supports regular (pageble) and page-locked host memory and this program performs a comparison between regular malloc/free calls and page-locked versions In MPI environment each MPI process initiates query. Master process with rank 0 gathers important parameters CUDA device query from each GPU device on each node of GPU Cluster. The maximum sustainable bandwidth values from H2D and D2H on each GPU to respective node are printed on master process with rank 0. The program uses MPI poit-to-point communication library calls.

  • Input

    • The input to the problem transfer message size

  • Output

    • Process 0 prints the maximum achieved bandwidth on each H2D, D2H D2D on each GPU of a each node in HPC GPU Cluster.

Example 1.4: Write MPI CUDA test program to perform synchronous and asynchronous APIs for performing host-GPU I/O, overlapping GPU computation and I/O from independent execution streams kernels in a GPU cluster environment for Matrix-matrix Computations
  • Objective

    Write MPI CUDA test program to perform synchronous and asynchronous APIs for performing host-GPU I/O, overlapping GPU computation and I/O from independent execution streams kernels in a GPU cluster environment for Matrix-Matrix Computations

  • Description : CUDA Asynchronous Concurrent Execution

    CUDA Runtime supports asynchronous function calls which facilitate concurrent execution between host and device, some function calls. In execution of these function calls, the control is returned to the host thread before the device has completed the requested task. Some of these are:

    • Kernel launches;

    • Memory copies between two addresses to the same device memory;

    • Memory copies from host to device of a memory block of 64 KB or less;

    • Memory copies performed by functions that are suffixed with Async;

    • Memory set function calls.

    Asynchronous function calls A stream is a sequence of commands (possibly issued by different host threads) that execute in order. A CUDA represents a queue of GPU operations that get executed in a specific order. Several operations can be included into a stream and the order in which operations are added to the stream specifies the order in which they will be executed. Some of Stream features are:

    • Creation and Destruction;

    • Default Stream;

    • Explicit Synchronization;

    • Implicit Synchronization;

    • Overlapping Behavior.

      Streams and Async functions provide memocopies (D2H, H2D) asynchronous with CPU and ability to concurrently execute a kernel and a memcopy. Application employ single or multiple CUDA Streams. When we use single stream, at the beginning of application, the computations are divided into chunks and each chunked computation and the overlap of memory copies with kernel execution. On multiple streams, different streams will perform CUDA operations as per application requirements.

  • Description : Implementation of Matrix-Matrix Multiplication

    CUDA Runtime supports asynchronous function calls which facilitate concurrent execution between host and device, some function calls. In execution of these function calls, the control is returned to the host thread before the device has completed the requested task.

    In this MPI-CUDA program, for computing the matrix-matrix multiplication on p processors of IBM AIX cluster using block checkerboard partitioning of the matrices . Special MPI routines on cartesian topology can be used for checkerboard partitioning of matrices.

    Assume that p= q2  and the size of square matrices A and B is evenly divisible by q. Assume that A and B are square matrices of size n and C be the output  matrix. These matrices are dived into blocks or submatrices to perform matrix-matrix operations in parallel.

    For example, an n x n matrix A can be regarded as q x q array of blocks Ai, j (0<=i <q, 0<= j < q) such that each block is an (n/q) x (n/q) submatrix. We use p kernels to implement the block version of matrix multiplication in parallel on GPU by choosing q as a square root of  p  and each kernel computes a distinct block Ci, j. Block  and cyclic checkerboard partitioning of a 8 x 8 matrix on a square grid (4  x 4) is shown in diffrent way to take advantage of coalescing and tile partitioning cocepts of CUDA from performance point of view.

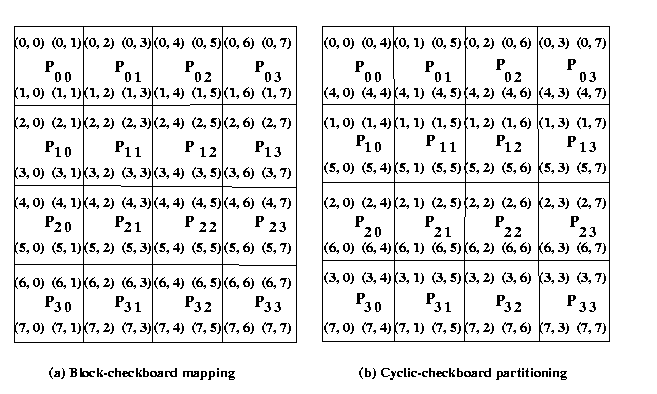

    Figure. Checkerboard & Cyclic checker-baord partitioning of 8 x 8 matrices on 16 processes

    The matrices A and B are partitioned into p  blocks, A i, j and B i, j (0<=i < q, 0<=j < q) of size  (n/q x n/q)   on GPU. These blocks are mapped onto a q x q  GPU mesh of kernels. These kernels are labeled from P0,0 to Pq-1,q-1. These kernels are launched using Streams and Async function calls.

Example 1.5: Write a test suite based on GPU device virtualization to execute few hundred CUDA kernels on HPC GPU Cluster using CUDA wrapper test (Assignment)
  • Objective

    Write a test suite based on GPU device virtualization to execute few hundred CUDA kernels on HPC GPU Cluster using CUDA wrapper test

  • Description

    In virtualization, software framework that will allow a single GPU on a "server" system to serve many clients simultaneously, and each of those clients can have its own, independent GPU workload. In a simple situation, on one GPU System, many kernels are allowed to execute on GPU using GPU device virtualization. The user\92s application sees only the virtual GPU devices, where one device (ex. device0) is rotated to a different physical GPU after any GPU device open call. This is implemented by shifting the virtual GPU to physical GPU mapping by one each time a process is launched. The CUDA/MPI cand be used and checker-board paritioning of matrix into matrix comptuations can be taken to demonstrate the performance.

Example 1.6: Write MPI-Pthread-CUDA test Program to perform thread affinity mapping, to ensure an optimal mapping of GPU to CPU cores in a HPC GPU Cluster environment (Assignment)
  • Objective

    Write MPI-Pthread-CUDA test Program to perform thread affinity mapping, to ensure an optimal mapping of GPU to CPU cores in a HPC GPU Cluster environment (Assignment)

  • Description

    On Host-CPU, assinging host-threads to unque GPU, which is implemented in CUDA Wrapper library. With multi-GPUs, node containing the optimal mapping of GPU to CPU cores is important. Also, set process affinity for the CPU cores \93closer\94 to the GPU being allocated which can be done using CUDAC wrapper library. In typical message passing cluster with each node having single or multiple GPUs, the sustained bandwidth from the host to device (and vice versa) plays a key role in the acceleration of computations. The performance depends upon the host CPU process is running on to achive optimal mapping.

    Demonstrate the performance of with and witout proper affinity mapping to solve Solution of matrix system of linear equations using POSIX threads and CUDA APIs in MPI environment

Example 1.7: Write MPI-Pthread-CUDA test Program to demonstrate compute-exclusive mode and normal mode features in a HPC GPU Cluster environment (Assignment)
  • Objective

    Write MPI-Pthread-CUDA test Program to demonstrate compute-exclusive mode and normal mode features in a HPC GPU Cluster environment for Solution of matrix system of linear equations using POSIX threads and CUDA APs

  • Description

    CUDA support normal and the compute-exclusive mode in a typical multi-threaded environment. In compute-exclusive mode, a given thread will own a GPU at first use. Additionally, this mode includes the capability to fall back to the next device available.

    Develop a MPi-CUDA program using normal and compute-exclusive mode for

Example 1.8: Write MPI-Pthread-CUDA test Program to demonstrate list of pre-node job allocation features in a HPC GPU Cluster environment
  • Objective

    Write MPI-Pthread-CUDA test Program to demonstrate list of pre-node job allocation features in a HPC GPU Cluster environment

  • Description

    Write a MPI-CUDA test suite to perform the following operations in a HPC GPU Cluster.

    • Detects GPU devices on the allocated node(s) of HPC GPU Cluster

    • Generate total device list file for HPC GPU Cluster

    • Checkout requested GPU devices from the total device file

    • Test Device Query on each device and check for homogeneity of HPC GPU Cluster

    • Display of allocated GPUs on HPC GPU Cluster and integration with Resource Job Management software

    • Check the available memory on each GPU and match with resource required for job submission

Example 1.9: Write MPI-Pthread-CUDA test Program to demonstrate list of post-job de-allocation features in a HPC GPU Cluster environment
  • Objective

    Write MPI-Pthread-CUDA test Program to demonstrate list of post-job de-allocation features in a HPC GPU Cluster environment

  • Description

    Write a MPI-CUDA test suite to perform the following operations in a HPC GPU Cluster.

    • Detects status of GPU devices on the allocated node(s) of HPC GPU Cluster

    • Run GPU memory test utility against job\92s allocated GPU device(s) to verify healthy GPU state

      If bad state is detected, mark the node offline, if other jobs present on it.

      If no other jobs present, reload the kernel module to recover the node and mark it on-line again

    • Run the memory scrubber to clear GPU device memory

    • Notify on any failure events with job details

    • Clear CUDA wrapper shared memory segment

    • Check-in GPUs back to the device file

Example 1.10: Write MPI \96 CUDA program to demonstrate maximum achieved performance of DGEMM using CUBLAS libraries on each GPU of HPC GPU Cluster
  • Objective

    Write MPI \96 CUDA program to demonstrate maximum achieved performance of DGEMM using CUBLAS libraries on each GPU of HPC GPU Cluster

  • Description

    Write MPI \96 CUDA program to calculate maximum achieved performance of DGEMM on each GPU of each node of HPC GPU Cluster and master process with rank 0 prints the final value.

Example 1.11: Write MPI \96 CUDA program to calculate maximum achieved performance of DGEMM on each node of HPC GPU Cluster using ATLAS on host-cpu and CUBLAS libraries on GPUs
  • Objective

    Write MPI \96 CUDA program to calculate maximum achieved performance of DGEMM on each node of HPC GPU Cluster using ATLAS on host-cpu and CUBLAS libraries on GPUs

  • Description

    Demonstrate the performance of DGEMM on a node with single GPU using sing ATLAS on host-cpu and CUBLAS libraries on GPUs

Example 1.12: Write MPI \96 CUDA program to perform GPU-to-GPU Communication using GPUDirect of NVIDIA in a HPC GPU Cluster environment for Solution of PDEs by Finite Difference Method
  • Objective

    Write MPI \96 CUDA program to perform GPU-to-GPU Communication using GPUDirect of NVIDIA in a HPC GPU Cluster environment for Solution of PDEs by Finite Difference Method

  • Description

    The MPI implementation of solution of PDEs on parallel computers, the one-dimensional paritioning is performed and each parition is assigned to a unique MPI process. Using CUDA-5.0, you've to demonstrate the time taken for communication of ghost-points information from one GPU another GPU on the same node in HPC Cluster.

Example 1.13: Write MPI \96 CUDA program to perform communication among MPI processes using CUDA 5.0 features in a HPC GPU Cluster environment for Solution of PDEs by Finite Difference Method
  • Objective

    Write MPI \96 CUDA program to perform communication among MPI processes using CUDA 5.0 features in a HPC GPU Cluster environment for Solution of PDEs by Finite Difference Method

  • Description

    The MPI implementation of solution of PDEs on parallel computers, the one-dimensional paritioning is performed and each parition is assigned to a unique MPI process. Using CUDA-5.0, you've to demonstrate the time taken for communication of ghost-points information from one GPU on a node to another GPU on diffrent node. A comparative analysis of results using single GPU, multi-gpu, differnt types of gpu-gpu communication should be carried out.
