HeGaPa Mode 1 : Mixed Mode of Programming Using MPI & OpenMP

Examples using a mixed(hybrid) mode-programming model such as MPI-OpenMP have been discussed. By utilizing the mixed(hybrid) mode-programming model (MPI-OpenMP) ,we should be able to take advantage of the benefits of both models. The majority of mixed mode applications involve a hierarchical model, MPI parallelisation occurring at the top level, and OpenMP parallelisation occurring below .Compiling and linking of mixed mode-programming MPI-OpenMP programs are explained in detail.Examples include numerical integration,infinity norms computation, matrix-vectore multiplication.

MPI-OpenMP Overview     Basic MPI Library Calls     Basic OpenMP Library Calls

MPI-OpenMP Perf. Tools     Compilation & Execution of MPI-OpenMP Programs

Example Program :     MPI-OpenMP-Fortran      MPI-OpenMP-C

References : Multi-threading     OpenMP     Java Threads     Books     MPI   Benchmarks


Example 1.1

Write an MPI-OpenMP program to print Hello World" . You have to use MPI Basic Library Calls and OpenMP PARALLEL For Directive.

Example 1.2


Write an MPI-OpenMP program to compute the value of PI pie function by numerical integration of a function f(x) = 4/(1+x2) between the limits 0 and 1. You have to use MPI Collective Communication and Computation Library Calls and OpenMP PARALLEL For Directive and CRITICAL section.

Example 1.3


Write an MPI-OpenMP program to calculate Infinity norm of a matrix using block striped partitioning with row wise data distribution. You have to use MPI Collective Communication and OpenMP Parallel For Directive and PRIVATE, SHARED Clauses.

Example 1.4


Write a MPI-OpenMP program to compute the matrix-vector multiplication using self scheduling algorithm. You have to use MPI Collective Communication and OpenMP Parallel For Directive and PRIVATE, SHARED Clauses.

Example 1.5

Write a MPI-OpenMP program to compute the matrix into matrix Multiplication using Checker-Board Partitoning of input Matrices (Assignment).

Example 1.6

Write a MPI-openmp program to solve a system of linear equations Ax=b using Conjugate Gradient Method. (Assignment).



An Overview of MPI-OpenMP

MPI - OpenMP

Message passing programs written in MPI are portable and should transfer easily to cluster of Multi-Core processor Systems. Message passing is required to communicate between nodes (boxes) using different networks,and message passing in node (Multi-core processors) require communication within node. Performance depends upon the efficient implementation within a node.

OpenMP is an Application Program Interface (API) that may be used to explicitly direct multi-threaded, shared memory parallelism. It is a specification for a set of compiler directives, library routines and environment variables that can be used to specify shared memory parallelism in Fortran and C/C++ programs. The OpenMP is a shared memory standard supported by most of the hardware and software vendors. OpenMP is comprised of three primary API components such as Compiler Directives, Runtime Library Routines, and Environment Variables OpenMP is portable and the API is specified for C/C++ and Fortran. Multiple platforms have been implemented including most Unix platforms and Windows NT. Efforts are going on to implement on Multi-Core processors to enhance the performance. The available programming environment on most of the Multi-Core processors will address the thread affinity to core and overheads in OpenMP programming environment.

A combination of shared memory and message passing parallelisation paradigms within the same application (mixed mode programming) may provide a more efficient parallelisation strategy than pure MPI. While mixed code may involve other programming languages such as High Performance Fortran (HPF) and POSIX threads. Mixed MPI and OpenMP codes are likely to represent the most widespread use of mixed mode programming on SMP cluster due to their portability and the fact that they represent industry standards for distributed and shared memory systems respectively. While SMP clusters offer the greatest reason for developing mixed mode code, both the OpenMP and MPI paradigms have different advantages and disadvantages and by developing such a model these characteristics might even be exploited to give the best performance on a single SMP system.

Thread Safety in MPI-OpenMP : Although a large number of MPI implementations are thread-safe, mixed mode programming cannot be guaranteed. To ensure the code is portable all MPI calls should be made within thread sequential regions of the code. This often creates little problem as the majority of codes involve the OpenMP parallelisation occurring beneath the MPI parallelisation and hence the majority of MPI calls occur outside the OpenMP parallel regions. When MPI calls occur within an OpenMP parallel region, the calls should be placed inside a CRITICAL , MASTER or SINGLE REGION ,depending on the nature of the code. Care should be taken with SINGLE regions, as different threads can execute the code. Ideally the number of threads should be set from within each MPI process using OMP_SET_NUM_THEREADS(n) as this is more portable than the OMP_NUM_THREADS environment variable.

In mixed mode-programming model, the advantage of the benefits of MPI & OpenMP models can be taken in which, a mixed mode program make use of the explicit control data placement policies of MPI with the finer grain parallelism of OpenMP. The majority of mixed mode applications involve a hierarchical model, MPI parallelisation occurring at the top level, and OpenMP parallelisation occurring below. For example, Figure 1 shows a two-dimensional grid, which has been divided between four MPI processes.

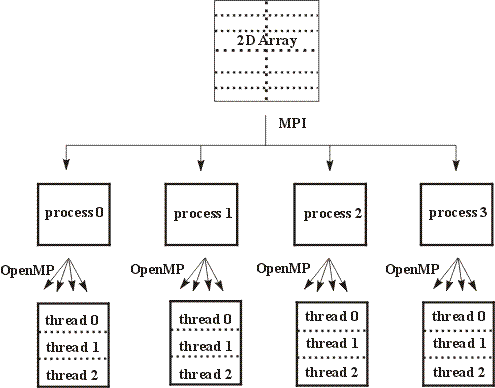

Figure 1: Schematic representation of a hierarchical mixed mode progamming model for a two-dimensional grid array.

In figure 1, the sub-arrays have then been further divided between three OpenMP threads. This model closely maps to the architecture of an SMP cluster,the MPI parallelisation occurring between the SMP boxes and the OpenMP parallelisation within the boxes. Message passing could be used within a code when this is relatively simple to implement and shared memory parallelism used where message passing is difficult. Most of the manufacturers provide extended versions of their communication library for clusters of multiprocessors; existing MPI codes can be directly used with a unified MPI model. The alternative is mixing MPI with a shared memory model such as OpenMP. In that case, different possibilities exist, which must be compared according to the performance and programming effort tradeoff.

In the mixed mode programming concept, MPI should be thread safe. If MPI is not thread safe, the program which is having non-blocking MPI library calls and OpenMP in certain order may give wrong results. Special care is needed while using specific MPI library calls in mixed mode programming with OpenMP to avoid race conditions or to get correct results.

(A) Fine-grain parallelisation :

From an existing MPI code, the simplest approach is the incremental one: It consists of OpenMP parallelisation of the loop nests in the computation part of the MPI code. This approach is also called OpenMP fine-grain or loop level parallelisation. Several options can be used according to

  • The programming effort
  • The choice of the loop nests to parallelise

Several levels of programming effort are required. First possibility consists in parallelising loop nests in the computation part of the MPI code without any manual optimization. Only the correctness of the parallel version versus the sequential version semantic is checked. But the incremental approach can be significantly improved by applying several manual optimizations (loop permutation, loop exchange,use of temporary variables). These optimizations are required

  • To transform non parallel loop nests into parallel ones.
  • To improve the parallel efficiency by avoiding false sharing or reducing the number of synchronization points (critical sections, barriers).

Another issue is the choice of the loop nests to parallelise. One option is to parallelise all loop nests.


  • It increases the programming effort.
  • The parallelisation loop nests that do not contribute significantly to the global execution time can be counter-productive.

The alternative option consists in selecting by profiling the loop nests that contribute significantly to the global execution time.

(B) Coarse-grain parallelisation :

Instead of applying a two level parallelisation (process level and loop level), another currently investigated approach is the coarse-grain OpenMP SPMD parallelisation. In this approach, OpenMP is still used to take advantage of the shared memory inside the SMP nodes or Multi-Core Processors but a SPMD programming style is used instead of the traditional shared memory multi-thread approach. In this mode, OpenMP is used to spawn N threads in the main program, having each thread act similarly to a MPI process. The OpenMP PARALLEL directive is used at the outermost level of the program. The principle is to spawn the threads just after the spawn of the MPI processes (some initializations may separate the two spawns). As for the message passing SPMD approach, the programmer must take care of several issues:

  • Array distribution among threads
  • Work distribution among threads
  • Coordination between threads

Since the array distribution is done assuming a shared memory, the distribution of the array only concerns the attribution of different array regions to the different running threads. For maximum performance, these regions should not overlap for write references. The work distribution is made according to the array distribution. Typically, the OpenMP DO directive is not used for distributing the loop iterations among threads. Instead, the programmer inserts some calculations of the loop boundaries that depend on the thread number. Co-ordinating the threads involves managing critical sections (I/O, MPI calls) using either OpenMP directives like MASTER or thread library calls like OMP_GET_THREAD_NUM() to guard conditional statements.

On Multi-Core processors, the implementation of MPI and OpenMP give insight into the estimation of overheads and the use of OpenMP may alleviate some of the overheads from data movement, false sharing, and contention. The overheads associated with automated generation of threaded code from directives have been shown minimal in the context of variety of applications on dual/quad core processors.

A programmer must weigh all above considerations before deciding on an API (MPI & OpenMP) for programming and performance point of view.



Basic MPI 1.X library Calls



Brief Introduction to MPI 1.X Library Calls :

Most commonly used MPI Library calls in FORTRAN/C -Language have been explained below.

  • Syntax : C
    MPI_Init(int *argc, char **argv);

  • Syntax : Fortran
    MPI_Init(ierror)
    Integer ierror

    Initializes the MPI execution environment

    This call is required in every MPI program and must be the first MPI call. It establishes the MPI "environment". Only one invocation of MPI_Init can occur in each program execution. It takes the command line arguments as parameters. In a FORTRAN call to MPI_Init the only argument is the error code. Every Fortran MPI subroutine returns an error code in its last argument, which is either MPI_SUCCESS or an implementation-defined error code. It allows the system to do any special setup so that the MPI library can be used.


  • Syntax : C
    MPI_Comm_rank (MPI_Comm commint rank);

  • Syntax : Fortran
    MPI_Comm_rank (comm, rank, ierror)
    integer comm, rank, ierror

    Determines the rank of the calling process in the communicator

    The first argument to the call is a communicator and the rank of the process is returned in the second argument. Essentially a communicator is a collection of processes that can send messages to each other. The only communicator needed for basic programs is MPI_COMM_WORLD and is predefined in MPI and consists of the processees running when program execution begins.


  • Syntax : C
    MPI_Comm_size (MPI_Comm comm, int num_of_processes);

  • Syntax : Fortran
    MPI_Comm_size (comm, size, ierror)
    integer comm, size, ierror

    Determines the size of the group associated with a communicator

    This function determines the number of processes executing the program. Its first argument is the communicator and it returns the number of processes in the communicator in its second argument.


  • Syntax : C
    MPI_Finalize()

  • Syntax : Fortran
    MPI_Finazlise(ierror)
    integer ierror

    Terminates MPI execution environment

    This call must be made by every process in a MPI computation. It terminates the MPI "environment", no MPI calls my be made by a process after its call to MPI_Finalize.


  • Syntax : C
    MPI_Send (void *message,  int countMPI_Datatype datatypeint destinationint tagMPI_Comm comm);

  • Syntax : Fortran
    MPI_Send(buf, count, datatype, dest, tag, comm, ierror)
    <type> buf (*)
    integer count, datatype, dest, tag, comm, ierror

    Basic send (It is a blocking send call)

    The first three arguments descibe the message as the address,count and the datatype. The content of the message are stored in the block of memory refrenced by the address. The count specifies the number of elements contained in the message which are of a MPI type MPI_DATATYPE. The next argument is the destination, an integer specifying the rank of the destination process. The tag argument helps identify messages.


  • Syntax : C
    MPI_Recv (void *messageint countMPI_Datatype datatypeint sourceint tagMPI_Comm commMPI_Status *status

  • Syntax : Fortran
    MPI_Recv(buf, count, datatype, source, tag, comm, status, ierror)
    <type> buf (*)
    integer count, datatype, source, tag, comm, status, ierror

    Basic receive ( It is a blocking receive call)

    The first three arguments descibe the message as the address,count and the datatype. The content of the message are stored in the block of memory referenced by the address. The count specifies the number of elements contained in the message which are of a MPI type MPI_DATATYPE. The next argument is the source which specifies the rank of the sending process. MPI allows the source to be a "wild card". There is a predefined constant MPI_ANY_SOURCE that can be used if a process is ready to receive a message from any sending process rather than a particular sending process. The tag argument helps identify messages. The last argument returns information on the data that was actually received. It references a record with two fields - one for the source and the other for the tag.


  • Syntax : C
    MPI_Sendrecv (void *sendbuf, int sendcount, MPI_Datatype sendtype, int dest, int sendtag, void *recvbuf , int recvcount, MPI_Datatype recvtype, int source, int recvtag, MPI_Comm comm, MPI_Status *status);

  • Syntax : Fortran
    MPI_Sendrecv (sendbuf, sendcount, sendtype, dest, sendtag, recvbuf, recvcount, recvtype, source, recvtag, comm, status, ierror)

    <type> sendbuf (*), recvbuf (*)
    integer sendcount, sendtype, dest, sendtag, recvcount, recvtype, source, recvtag
    integer comm, status(*), ierror

    Sends and recevies a message

    The function MPI_Sendrecv, as its name implies, performs both a send ana a receive. The parameter list is basically just a concatenation of the parameter lists for the MPI_Send and MPI_Recv. The only difference is that the communicator parameter is not repeated. The destination and the source parameters can be the same. The "send" in an MPI_Sendrecv can be matched by an ordinary MPI_Recv, and the "receive" can be matched by and ordinary MPI_Send. The basic difference between a call to this function and MPI_Send followed by MPI_Recv (or vice versa) is that MPI can try to arrange that no deadlock occurs since it knows that the sends and receives will be paired.


  • Syntax : C
    MPI_Sendrecv_replace (void* buf, int count, MPI_Datatype datatype, int dest, int sendtag, int source, int recvtag, MPI_Comm comm, MPI_Status *status)

  • Syntax : Fortran
    MPI_Sendrecv_replace (buf, count, datatype, dest, sendtag, source, recvtag, comm, status, ierror)
    <type> buf (*)
    integer count, datatype, dest, sendtag, source, recvtag
    integer comm, status(*), ierror

    Sends and receives using a single buffer

    MPI_Sendrecv_replace sends and receives using a single buffer.


  • Syntax : C
    MPI_Bsend (void *buf, int count, MPI_Datatype datatype, int dest, int tag, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Bsend (buf, count, datatype, dest, tag, comm, ierror)
    <type> buf (*)
    integer count, datatype, dest, tag, comm, ierror

    Basic send with user specified buffering

    MPI_Bsend copies the data into a buffer and transfers the complete buffer to the user.


  • Syntax : C
    MPI_Isend (void* buf, int count, MPI_Datatype datatype, int dest, int tag, MPI_Comm comm, MPI_Request *request)

  • Syntax : Fortran
    MPI_Isend (buf, count, datatype, dest, tag, comm, request, ierror)
    <type> buf (*)
    integer count, datatype, dest, tag, comm, request, ierror

    Begins a nonblocking send

    MPI_Isend is a nonblocking send. The basic functions in MPI for starting non-blocking communications are MPI_Isend. The "I" stands for "immediate," i.e., they return (more or less) immediately.


  • Syntax : C
    MPI_Irecv (void* buf, int count, MPI_Datatype datatype, int source, int tag, MPI_Comm comm, MPI_Request *request)

  • Syntax : Fortran
    MPI_Irecv (buf, count, datatype, source, tag, comm, request, ierror)
    <type> buf (*)
    integer count, datatype, source, tag, comm, request, ierror

    Begins a nonblocking send

    MPI_Irecv begins a nonblocking receive. The basic functions in MPI for starting non-blocking communications are MPI_Irecv. The "I" stands for "immediate," i.e., they return (more or less) immediately.


  • Syntax : C
    MPI_Wait (MPI_Request *request, MPI_Status *status);

  • Syntax : Fortran
    MPI_Wait (request, status, ierror)
    integer request, status (*), ierror

    Waits for a MPI send or receive to complete

    MPI_Wait waits for an MPI send or receive to complete. There are variety of functions that MPI uses to complete nonblocking operations. The simplest of these is MPI_Wait. It can be used to complete any nonblocking operation. The request parameter corresponds to the request parameter returned by MPI_Isend or MPI_Irecv.


  • Syntax : C
    MPI_Ssend (void* buf, int count, MPI_Datatype datatype, int dest, int tag, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Ssend (buf, count, datatype, dest, tag, comm, ierror)
    <type> buf (*)
    integer count, datatype, dest, tag, comm, ierror

    Builds a handle for a synchronous send

    MPI_Ssend is one of the synchronous mode send operations provided by MPI.


  • Syntax : C
    MPI_Bcast (void *messageint countMPI_Datatype datatype,  int rootMPI_Comm comm)

  • Syntax : Fortran
    MPI_Bcast(buffer, count, datatype, root, comm, ierror)
    <type> buffer (*)
    integer count, datatype, root, comm, ierror

    Broadcast a message from the process with rank "root" to all other processes of the group

    It is a collective communication call in which a single process sends same data to every process. It sends a copy of the data in message on process root to each process in the communicator comm. It should be called by all processors in the communicator with the same arguments for root and comm.;


  • Syntax : C
    MPI_Scatter ((void *send_bufferint send_countMPI_DATATYPE send_typevoid *recv_buffer,   int recv_count, MPI_DATATYPE recv_type,  int rootMPI_Comm comm);

  • Syntax : Fortran
    MPI_Scatter(sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, root , comm, ierror)
    <type> sendbuf (*), recvbuf (*)
    integer sendcount, sendtype, recvcount, recvtype, root , comm, ierror

    Sends data from one process to all other processes in a group

    The process with rank root distributes the contents of send_buffer among the processes. The contents of send_buffer are split into p segments each consisting of send_count elements. The first segment goes to process 0, the second to process 1 ,etc. The send arguments are significant only on process root.


  • Syntax : C
    MPI_Scatterv (void* sendbuf, int *sendcounts, int *displs, MPI_Datatype sendtype, void* recvbuf, int recvcount, MPI_Datatype recvtype, int root, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Scatterv (sendbuf, sendcounts, displs, sendtype, recvbuf, recvcount, recvtype, root, comm, ierror)
    <type> sendbuf (*), recvbuf (*)
    integer sendcounts (*), displs (*), sendtype, recvcount, recvtype, root, comm, ierror

    Scatters a buffer in different/same size of parts to all processes in a group

    A simple extension to MPI_Scatter is MPI_Scatterv. MPI_Scatterv allows the size of the data being sent by each process to vary.


  • Syntax : C
    MPI_Gather (void *send_buffer, int send_count, MPI_DATATYPE send_type, void *recv_bufferint recv_count, MPI_DATATYPE recv_type,  int rootMPI_Comm comm)

  • Syntax : Fortran
    MPI_Gather(sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, root, comm, ierror)
    <type> sendbuf (*), recvbuf (*)
    integer sendcount, sendtype, recvcount, recvtype, root, comm, ierror

    Process gathers together values from a group of tasks

    Each process in comm sends the contents of send_buffer to the process with rank root. The process root concatenates the received data in the process rank order in recv_buffer. The receive arguments are significant only on the process with rank root. The argument recv_count indicates the number of items received from each process - not the total number received.


  • Syntax : C
    MPI_Gatherv (void* sendbuf, int sendcount, MPI_Datatype sendtype, void *recvbuf, int *recvcounts, int *displs, MPI_Datatype recvtype, int root, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Gatherv (sendbuf, sendcount, sendtype, recvbuf, recvcounts, displs, recvtype, root, comm, ierror)
    <type> sendbuf (*), recvbuf (*)
    integer sendcount, sendtype, recvcounts (*), displs (*), recvtype, root, comm, ierror

    Gathers into specified locations from all processes in a group

    A simple extension to MPI_Gather is MPI_Gatherv. MPI_Gatherv allows the size of the data being sent by each process to vary.


  • Syntax : C
    MPI_Barrier (MPI_Comm comm)

  • Syntax : Fortran
    MPI_Barrier (comm, ierror)
    integer comm, ierror

    Blocks until all process have reached this routine

    MPI_Barrier blocks the calling process until all processes in comm have entered the function.


  • Syntax : C
    MPI_Reduce (void *operandvoid *resultint countMPI_Datatype datatypeMPI_Operator opint root, MPI_Comm comm);

  • Syntax : Fortran
    MPI_Reduce(sendbuf, recvbuf, count, datatype, op, root, comm,ierror)
    <type> sendbuf (*), recvbuf (*)
    integer count, datatype, op, root, comm, ierror

    Reduce values on all processes to a single value

    MPI_Reduce combines the operands stored in *operand using operation op and stores the result on *result on the root. Both operand and result refer count memory locations with type datatype. MPI_Reduce must be called by all the process in the communicator comm, and count, datatype and op must be same on each process.


  • Syntax : C
    MPI_Allreduce (void* sendbuf, void* recvbuf, int count, MPI_Datatype datatype, MPI_Op op, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Allreduce (sendbuf, recvbuf, count, datatype, op, comm, ierror)
    <type> sendbuf (*), recvbuf (*)
    integer count, datatype, op, comm, ierror

    Combines values from all processes and distribute the result to all process.

    MPI_Allreduce combines values form all processes and distribute the result back to all processes.


  • Syntax : C
    MPI_Allgather (void *send_buffer, int send_count, MPI_DATATYPE send_type, void *recv_buffer, int recv_count, MPI_Datatype recv_type, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Allgather(sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, comm, ierror)
    <type> sendbuf(*), recvbuf(*)
    integer sendcount, sendtype, recvcount, recvtype, comm, ierror

    Gathers data from all processes and distribute it to all

    MPI_Allgather gathers the contents of each send_buffer on each process. Its effect is the same as if there were a sequence of p calls to MPI_Gather, each of which has a different process acting as a root


  • Syntax : C
    MPI_Alltoall (void* sendbuf, int sendcount, MPI_Datatype sendtype, void* recvbuf, int recvcount, MPI_Datatype recvtype, MPI_Comm comm)

  • Syntax : Fortran
    MPI_Alltoall (sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, comm, ierror)
    <type> sendbuf (*), recvbuf (*)
    integer sendcount, sendtype, recvcount, recvtype, comm, ierror

    Sends distinct collection of data from all to all processes

    MPI_Alltoall is a collective communication operation in which every process sends distinct collection of data to every other process. This is an extension of gather and scatter operation also called as total-exchange.


  • Syntax : C
    Double  MPI_Wtime( )

  • Syntax : Fortran
    double precision MPI_Wtime

    Returns an ellapsed time on the calling processes

    MPI provides a simple routine MPI_Wtime( ) that can be used to time programs or section of programs. MPI_Wtime( ) returns a double precision floating point number of seconds, since some arbitrary point of time in the past. The time interval can be measured by calling this routine at the beginning and at the end of program segment and subtracting the values returned.


  • Syntax : C
    MPI_Comm_split ( MPI_Comm old_comm, int split_key, int rank_key, MPI_Comm* new_comm);

  • Syntax : Fortran
    MPI_Comm_split ( comm, size, ierror)
    integercomm, size, ierror

    Creates new communicator based on the colors and keys

    The single call to MPI_Comm_split creates q new communicators, all of them having the same name, *new_comm. It creates a new communicator for each value of the split_key. Process with the same value of split_key form a new group. The rank in the new group is determined by the value of rank_key. If process A and process B call MPI_Comm split with the same value of split_key, and the rank_key argument passed by process A is less than that passed by process B, then the rank of A in underlying group  new_comm will be less than the rank of process B. It is a collective call, and it must be called by all the processes in old_comm.


  • Syntax : C
    MPI_Comm_group ( MPI_Comm comm, MPI_Group *group);

  • Syntax : Fortran
    MPI_Comm_group (comm, group, ierror);
    integer comm, group, ierror

    Accesses the group associated with the given communicator

  • Syntax : C
    MPI_Group_incl ( MPI_Group old_group, int new_group_size, int* ranks_in_old_group, MPI_Group* new_group)

  • Syntax : Fortran
    MPI_Group_incl (old_group, new_group_size, ranks_in_old_group , new_group, ierror)
    integer old_group, new_group_size, ranks_in_old_group (*), new_group, ierror

    Produces a group by reordering an existing group and taking only unlisted members

  • Syntax : C
    MPI_Comm_create(MPI_Comm old_comm, MPI_Group new_group, MPI_Comm * new_comm);

  • Syntax : Fortran
    MPI_Comm_create(old_comm, new_group, new_comm, ierror);
    integer old_comm, new_group, new_comm, ierror

    Creates a new communicator

    Groups and communicators are opaque objects. From a parctical standpoint, this means that the details of their internal representation depend on the particular implementation of MPI, and, as a consequence, they cannot be directly accessed by the user. Rather the user access a handle that refrences the opaque object, and the objects are manipulated by special MPI functions MPI_Comm_create, MPI_Group_incl and MPI_Comm_group. Contexts are not explicitly used in any MPI functions. MPI_Comm_group simply returns the group underlying the communicator comm. MPI_Group_incl creates a new group from the list of process in the existing group old_group. The number of process in he new group is the new_group _size, and the processes to be included are listed in ranks_in _old_group. MPI_Comm_create associates a context with the group new_group and creates the communicator new_comm. All of the process in new_group belong to the group underlying old_comm. MPI_Comm_create is a collective operation. All the processes in old_comm must call MPI_Comm_create with the same arguments.


  • Syntax : C
    MPI_Comm_create(MPI_Comm old_comm, MPI_Group new_group, MPI_Comm * new_comm);

  • Syntax : Fortran
    MPI_Comm_create(old_comm, new_group, new_comm, ierror);
    integer old_comm, new_group, new_comm, ierror

    Creates a new communicator

    Groups and communicators are opaque objects. From a parctical standpoint, this means that the details of their internal representation depend on the particular implementation of MPI, and, as a consequence, they cannot be directly accessed by the user. Rather the user access a handle that refrences the opaque object, and the objects are manipulated by special MPI functions MPI_Comm_create, MPI_Group_incl and MPI_Comm_group. Contexts are not explicitly used in any MPI functions. MPI_Comm_group simply returns the group underlying the communicator comm. MPI_Group_incl creates a new group from the list of process in the existing group old_group. The number of process in he new group is the new_group _size, and the processes to be included are listed in ranks_in _old_group. MPI_Comm_create associates a context with the group new_group and creates the communicator new_comm. All of the process in new_group belong to the group underlying old_comm. MPI_Comm_create is a collective operation. All the processes in old_comm must call MPI_Comm_create with the same arguments.


  • Syntax : C
    MPI_Cart_create (MPI_Comm comm_old, int ndims, int *dims, int *periods, int reorder, MPI_Comm *comm_cart)

  • Syntax : Fortran
    MPI_Cart_create (comm_old, ndims, dims, periods, reorder, comm_cart, ierror)
    integer comm_old, ndims, dims(*), comm_cart, ierror logical periods(*), reorder

    Makes a new communicator to which topology information has been given in the form of Cartesian Coodinates

    MPI_Cart_create creates a Cartersian decomposition of the processes, with the number of dimensions given by the number_of_dimensions argument. The user can specify the number of processes in any direction by giving a positive value to the corresponding element of dimensions_sizes. arguments.


  • Syntax : C
    MPI_Cart_rank (MPI_Comm comm, int *coords, int *rank)

  • Syntax : Fortran
    MPI_Cart_rank (comm, coords, rank, ierror)
    integer comm, coords (*), rank, ierror

    Determines process rank in communicator given Cartesian location

    MPI_Cart_rank returns the rank in the Cartesian communicator comm of the process with Cartesian coordinates. So coordinates is an array with order equal to the number of dimensions in the Cartesian topology associated with comm.


  • Syntax : C
    MPI_Cart_coords (MPI_Comm comm, int rank, int maxdims, int *coords)

  • Syntax : Fortran
    MPI_Cart_coords (comm, rank, maxdims, coords, ierror)
    integer comm, rank, maxdims, coords (*), ierror

    Determines process coords in Cartesian topology given ranks in new Commincator

    MPI_Cart_coords takes input as a rank in a communicator, returns the coordinates of the process with that rank. MPI_Cart_coords is the inverse to MPI_Cart_Rank; it returns the coordinates of the processes with rank rank in the Cartesian communicator comm. Note that both of these functions are local.


  • Syntax : C
    MPI_Cart_get (MPI_Comm comm, int maxdims, int *dims, int *periods, int *coords)

  • Syntax : Fortran
    MPI_Cart_get (comm, maxdims, dims, periods, cords, ierror)
    integer comm, maxdims, dims (*), coords (*), ierror, logical periods (*)

    Retrieve Cartesian topology information associated with a communicator

    MPI_Cart_get retrieves the coordinates of the calling process in communicator.


  • Syntax : C
    MPI_Cart_shift (MPI_Comm comm, int direction, int disp, int *rank_source, int *rank_dest)

  • Syntax : Fortran
    MPI_Cart_shift (comm, direction, disp, rank_source, rank_dest, ierror)
    integer comm, direction, disp, rank_source, rank_dest, ierror

    Returns the shifted source and destination ranks given a shift direction and amount

    MPI_Cart_shift returns rank of source and destination processes in arguments rank_source and rank_dest respectively.


  • Syntax : C
    MPI_Cart_sub (MPI_Comm comm, int *remain_dims, MPI_Comm *newcomm)

  • Syntax : Fortran
    MPI_Cart_sub (old_comm, remain_dims, new_comm, ierror)
    integer old_comm, newcomm, ierror logical remain_dims(*)

    Partitions a communicator into subgroups that from lower-dimensional cartesian subgrids

    MPI_Cart_sub partitions the processes in cart_comm into a collection of disjoint communicators whose union is cart_comm. Both cart_comm and each new_comm have associated Cartesian topologies.


  • Syntax : C
    MPI_Dims_create (int nnodes, int ndims, int *dims)

  • Syntax : Fortran
    MPI_Dims_create (nnodes, ndims, dims, ierror)
    integer nnodes, ndims, dims(*), ierror

    Create a division of processes in the Cartesian grid

    MPI_Dims_create creates a division of processes in a Cartesian grid. It is useful to choose dimension sizes for a Cartesian coordinate system.


  • Syntax : C
    MPI_Waitall(int count, MPI_Request *array_of_requests, MPI_Status *array_of_statuses)

  • Syntax : Fortran
    MPI_Waitall(count, array_of_requests, array_of_statuses, ierror)
    integer count, array_of_requests (*), array_of_statuses (MPI_status_size, *), ierrror

    Waits for all given communications to complete

    MPI_Waitall waits for all given communications to complete and to test all or any of the collection of nonblocking operations.



Basic OpenMP Library Calls

Most commonly used OpenMP Run time pragmas in FORTRAN/C -Language are explained below.

  • Syntax : C
    void omp_set_num_threads(int num_threads)

    Syntax : Fortran
    SUBROUTINE OMP_SET_NUM_THREADS ( scalar_integer_expression )

    sets the number of threads to use in a team

    This subroutine sets the number of threads that will be used in the next parallel region. The dynamic threads mechanism modifies the effect of this routine. If enabled, specifies the maximum number of threads that can be used for any parallel region. If disabled, specifies exact number of threads to use until next call to this routine. This routine can only be called from the serial portions of the code. This call has precedence over the OMP_NUM_THREADS environment variable.


  • Syntax : C
    int omp_get_num_threads(void)

    Syntax : Fortran
    INTEGER FUNCTION OMP_GET_NUM_THREADS()

    returns the number of threads in the currently executing parallel region.

    This subroutine/function returns the number of threads that are currently in the team executing the parallel region from which it is called. If this call is made from a serial portion of the program, or a nested parallel region that is serialized, it will return 1. The default number of threads is implementation dependent.


  • Syntax : C
    int omp_get_max_threads(void)

    Syntax : Fortran
    INTEGER FUNCTION OMP_GET_MAX_THREADS()

    returns the maximum value that can be returned by a call to the OMP_GET_NUM_THREADS function.

    Generally reflects the number of threads as set by the OMP_NUM_THREADS environment variable or the OMP_SET_NUM_THREADS() library routine. This function can be called from both serial and parallel regions of code.


  • Syntax : C
    int omp_get_thread_num(void)

    Syntax : Fortran
    INTEGER FUNCTION OMP_GET_THREAD_NUM()

    returns the thread number within the team

    This function returns the thread number of the thread, within the team, making this call. This function returns the thread number. This number will be between 0 and OMP_GET_NUM_THREADS-1. The master thread of the team is thread 0. If called from a nested parallel region, or a serial region, this function will return 0.


  • Syntax : C
    int omp_get_num_procs(void)

    Syntax : Fortran
    INTEGER FUNCTION OMP_GET_NUM_PROCS<()

    returns the number of processors that are available to the program.

  • Syntax : C
    int omp_in_parallel(void)

    Syntax : Fortran
    LOGICAL FUNCTION OMP_IN_PARALLEL()

    returns .TRUE. for calls within a parallel region, .FALSE. otherwise.

    This function/subroutine is called to determine if the section of code which is executing is parallel or not. For Fortran, this function returns .TRUE. if it is called from the dynamic extent of a region executing in parallel, and .FALSE. otherwise. For C/C++, it will return a non-zero integer if parallel, and zero otherwise.


  • Syntax : C
    void omp_set_dynamic(int dynamic_threads)

    Syntax : Fortran
    SUBROUTINE OMP_SET_DYNAMIC(scalar_logical_expression)

    control the dynamic adjustment of the number of parallel threads.

    This subroutine enables or disables dynamic adjustment (by the run time system) of the number of threads available for execution of parallel regions. For Fortran, if called with .TRUE. then the number of threads available for subsequent parallel regions can be adjusted automatically by the run-time environment. If called with .FALSE., dynamic adjustment is disabled. For C/C++, if dynamic_threads evaluates to non-zero, then the mechanism is enabled, otherwise it is disabled. The OMP_SET_DYNAMIC subroutine has precedence over the OMP_DYNAMIC environment variable. The default setting is implementation dependent. Must be called from a serial section of the program.


  • Syntax : C
    int omp_get_dynamic(void)

    Syntax : Fortran
    LOGICAL FUNCTION OMP_GET_DYNAMIC

    returns .TRUE. if dynamic threads is enabled, .FALSE. otherwise.

    This function is used to determine if dynamic thread adjustment is enabled or not. For Fortran, this function returns .TRUE. if dynamic thread adjustment is enabled, and .FALSE. otherwise. For C/C++, non-zero will be returned if dynamic thread adjustment is enabled, and zero otherwise.


  • Syntax : C
    void omp_set_nested(int nested)

    Syntax : Fortran
    SUBROUTINE OMP_SET_NESTED(scalar_logical_expression)

    enable or disable nested parallelism.

    This subroutine is used to enable or disable nested parallelism. For Fortran, calling this function with .FALSE. will disable nested parallelism, and calling with .TRUE. will enable it. For C/C++, if nested evaluates to non-zero, nested parallelism is enabled; otherwise it is disabled. The default is for nested parallelism to be disabled. This call has precedence over the OMP_NESTED environment variable.


  • Syntax : C
    void omp_get_nested

    Syntax : Fortran
    LOGICAL FUNCTION OMP_GET_NESTED

    returns .TRUE. if nested parallelism is enabled, .FALSE. otherwise.

    This function/subroutine is used to determine if nested parallelism is enabled or not. For Fortran, this function returns .TRUE. if nested parallelism is enabled, and .FALSE. otherwise. For C/C++, non-zero will be returned if nested parallelism is enabled, and zero otherwise.


  • Syntax : C
    void omp_init_lock(omp_lock_t *lock)

    void omp_nest_init_lock(omp_nest_lock_t *lock)

    Syntax : Fortran
    SUBROUTINE OMP_INIT_LOCK(var)

    allocate and initialise the lock

    This subroutine / function initializes a lock associated with the lock variable. The initial state is unlocked.


  • Syntax : C
    void omp_destroy_lock(omp_lock_t *lock)

    void omp_destroy_nest_lock(omp_nest_lock_t *lock)

    Syntax : Fortran
    SUBROUTINE OMP_DESTROY_LOCK(var)

    deallocate and free the lock

    This subroutine/function disassociates the given lock variable from any locks. It is illegal to call this routine with a lock variable that is not initialized.


  • Syntax : C
    void omp_set_lock(omp_lock_t *lock)

    void omp_set_nest__lock(omp_nest_lock_t *lock)

    Syntax : Fortran
    SUBROUTINE OMP_SET_LOCK(var)

    Acquire the lock, waiting until it becomes available, if necessary.

    This subroutine forces the executing thread to wait until the specified lock is available. A thread is granted ownership of a lock when it becomes available. It is illegal to call this routine with a lock variable that is not initialized.


  • Syntax : C
    void omp_unset_lock(omp_lock_t *lock)

    void omp_unset_nest__lock(omp_nest_lock_t *lock)

    Syntax : Fortran
    SUBROUTINE OMP_UNSET_LOCK(var)

    release the lock, resuming a waiting thread if any.

    This subroutine releases the lock from the executing subroutine. It is illegal to call this routine with a lock variable that is not initialized.


  • Syntax : C
    void omp_test_lock(omp_lock_t *lock)

    void omp_test_nest__lock(omp_nest_lock_t *lock)

    Syntax : Fortran
    SUBROUTINE OMP_TEST_LOCK(var)

    try to acquire the lock, return success or failure

    This subroutine attempts to set a lock, but does not block if the lock is unavailable. For Fortran, .TRUE. is returned if the lock was set successfully, otherwise .FALSE. is returned. For C/C++, non-zero is returned if the lock was set successfully, otherwise zero is returned. It is illegal to call this routine with a lock variable that is not initialized.


MPI-OpenMP Performance tools


Tools available in MPI or OpenMP :

Intel Thread Checker

Intel Vtune Performance analyzer

Intel Thread Profiler

Sun Studio

IBM Tools

Etnus totalview Debugger

MPI- Upshot, Jumpshot

PAPI (Public domain tools)

Google Perf Tool


Vampir/GuideView(VGV)

Pallas GmbH and KAI Software have partnered with the Department of Energy through an ASCI Pathforward contract to develop a tool called Vampir/GuideView, or VGV. This tool combines the richness of the existing tools, Vampir for MPI, and GuideView for OpenMP, into a single, tightly-integrated performance analysis tool. From the outset, its design targets performance analysis on systems with thousands of processors.

Performance Analyzers : Paraver from the Paraver project

Paraver is a flexible performance visualization and analysis tool that can be used to analyze MPI, OpenMP, MPI+OpenMP, Java, Hardware counters profile etc..

TotalView

TotalView is the debugger for complex code. TotalView is far and away the best choice for those working with parallelism or large amounts of data because it scales transparently to support the big code and data sets running on anywhere from one to thousands of processes or processors. It's been proven in the world's toughest debugging environments.

It is available at

http://www.etnus.com/Products/TotalView

TotalView's support for OpenMP debugging lets you view the state of your program as if it were a non-parallel code. With TotalView, you can

  • Debug threaded codes whether OpenMP directives are present or not.
  • Understanding OpenMP code execution
  • Access private and shared variables as well as threadprivate variables.

Compilation and Execution of MPI-OpenMP programs


Compilation,Linking and Execution of MPI-OpenMP programs

Compilation : Using mpicc and mpif90

The compilation and execution details of a parallel program that uses MPI and OpenMP may vary on different parallel computers. The essential steps of common to all parallel systems are same, provided we execute two or three or many  process on each processor. The three important steps are described below :

The following lines show sample compilation and execution using MPICH2. You should use commands that  MPICH2 provides for compiling and linking programs.  For compilation following commands are used depending on the C or Fortran (mpicc/mpif90) program.


mpicc -o hello_world hello_world.c -fopenmp

mpif90 -o hello_world hello_world.f -fopenmp

Commands for linker may include additional libraries.  For example, to use some routines from the MPI library and math library , one can use the following command


mpicc  -o <Name of executable>  hello_world.c -fopenmp -lm

Compilation : Using Makefile

For more control over the process of compiling and linking programs for mpich2, you should use a 'Makefile'. You may also use these commands in Makefile particularly for programs contained in a large number of files. The user has to specify the names of the program (s) and appropriate paths to link MPI and system specific (like lm etc..) libraries in the Makefile. To compile and link a MPI+OpenMP program in C or Fortran, you can use the command


make -f Makefile-C (or) Makefile-Fortran



For MPI+OpenMP C Programs use Makefile-C & for Fortran Programs use Makefile-Fortran

Execution of a Program : Using mpiexec

To run an MPI+OpenMP program, use the  mpiexec command.


For execution set the following environment variables in respective users shells

             export  OMP_NUM_THREADS = 2   (bash/ksh shells)

set OMP_NUM_THREADS 2 (csh/tcsh shells)

then execute

mpiexec -n   <number of processes>  ./run



The argument -n  gives the number of processes that will be associated with the MPI_COMM_WORLD communicator run is the executable running on all processors.


Consider a sample command
mpiexec -n 4  ./run


Execution of mpiexex command as shown above will execute 4 processes of run respectively creating the number of threads depending on the environment variable set in their respective shells or in the program itself.


Executing MPI-OpenMP program on Cetus cluster

To Execute the above Programs on IUCAA Cluster (Cetus Cluster) , the user should submit job to scheduler. To submit the job use the following command.

bsub -q <queue-name> -n[numberof processor] [options] mpirun -srun ./<executablename>

For Example :

bsub -q normal -n4 -ext"SULRM[nodes=4]" -o hello-world.out -e hello-world.err mpirun -srun ./helloworld

NOTE : 1) Where "helloworld" is binary executable of helloworld.c program.
          2) "nodes=1" indicates number of nodes required to run the executable.
          3) Refer man pages of "bsub" for options.


Example Program : MPI-OpenMP & Fortran

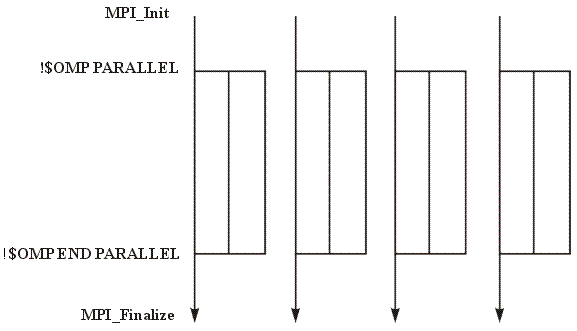

The simple MPI-OpenMP program is "Hello World" program, in which threads created by each process simply prints the message "Hello World". In this example, threads with identifier 0, 1, 2, ......, n-1 of each processes will print the message "Hello World", Rank of the process and thread identifier of each thread created by the process.

The simple MPI-OpenMP program in Fortran language in which each thread from each processor prints "Hello World" message is explained below. We describe the features of the entire program and describe the program in details. First few lines of the program explain variable definitions, and constants. Followed by these declarations, MPI library calls for initialization of MPI environment, and MPI communication associated with a communicator are declared in the program. The communication describes the communication context and an associated group of processes. The calls MPI_Comm_Size returns Numprocs, the number of processes that the user has started for this program. Each process finds out its rank in the group associated with a communicator by calling MPI_Comm_rank. Followed by these, OpenMP library calls are declared in the program. The library call OMP_GET_THREAD_NUM returns ThreadID, the identifier of each thread.

The following segment of the program explains these features. The description of program is as follows:

program HelloWorld

include "mpif.h"
integer MyRank, Numprocs
integer status(MPI_STATUS_SIZE)
integer ThreadID, OMP_GET_THREAD_NUM

MyRank is the rank of process and Numprocs is the number of processes in the communicator MPI_COMM_WORLD

call MPI_INIT(ierror)
call MPI_COMM_SIZE(MPI_COMM_WORLD,Numprocs, ierror)
call MPI_COMM_RANK(MPI_COMM_WORLD, MyRank, ierror)

The subroutine OMP_SET_NUM_THREADS sets the number of threads to two, that will be used in the next parallel region. This call has precedence over the OMP_NUM_THREADS environment variable

call OMP_SET_NUM_THREADS(2)

Starting of OpenMP PARALLEL directive and PRIVATE clause.

!$OMP PARALLEL PRIVATE (ThreadID)
ThreadID is the identifier of each thread. ThreadID is private to each thread. Each thread obtains its own identifier and then prints the message "Hello World" in parallel. Each thread gets its own copies of identifier and prints it.

ThreadID = OMP_GET_THREAD_NUM()
print*,"Hello World From Processor", MyRank,"Thread", ThreadID

Ending of OpenMP PARALLEL directive. All threads join master thread and disband.

!$OMP END PARALLEL

After, this MPI_Finalize is called to terminate the program. Every process in MPI computation must make this call. It terminates the MPI "environment".


! ....Finalizing the MPI....

call MPI_FINALIZE( ierror )
stop
end

The above few segments of program shows a simple mixed mode Hello World program, to demonstrate how a mixed mode program is implemented. MPI is initialized and finalized in the usual way, using the MPI_INIT and MPI_FINALIZE calls. An OpenMP PARALLEL region occurs between these calls, spawning a number of threads on each process. If, for example the program was executed using four MPI processes and two OpenMP threads the flow of execution in Figure 2 would be observed.



Example Program : MPI-OpenMP & C-language


Simple MPI-OpenMP program to print "Hello World"

#include <stdio.h>
#include <omp.h>
#include <mpi.h>
/* Main Program */
main()
{

    int Numprocs, MyRank, iam;

    /* MPI - Initialization */
    MPI_Init(&argc, &argv);
    MPI_Comm_rank(MPI_COMM_WORLD, &MyRank);
    MPI_Comm_size(MPI_COMM_WORLD, &Numprocs);

    /* OpenMP Parallel Directive */
    omp_set_num_threads(4);
    #pragma omp parallel private(threadid)
    {
    iam = omp_get_thread_num();
    printf("Hello World is Printed By Process %d and Threadid %d\n",MyRank, iam);
    }

    /* MPI - Termination */
    MPI_Finalize();
}

MPI-OpenMP Web Sites


1. MPI versus MPI+OpenMP on the IBM SP for the NAS Benchmarks

http://www.sc2000.org/techpapr/papers/pap.pap214.pdf

2. Hybrid Programming (MPI/OpenMP)

http://www.linux-mag.com/id/1631

Centre for Development of Advanced Computing
