(Source - References : Books     Multi-threading     - [MC-MPI-02], [MCMPI-06], [MCMPI-07], [MCMPI-09], [MC-MPI10], [MCMPI-11], [MCMTh-12],[MCBW-44], [MCOMP-01])

An Overview of direct and iterative solution of matrix system of linear equations




The system of linear equations [A]{x} = {b} is given by

  ao,o x o + ao,1 x1 + ...+ ao, n-1 xn-1 = bo ,
  a
1,o xo + a1,1 x1 + ...+ a1, n-1 x n-1 = b1 ,
...........................................................................
...........................................................................
...........................................................................
an-
1,o x0 + an-1,1 x1 + ...+ an-1, n-1 x n-1 = bn-1

In matrix notation, this system of linear equation is written as [A]{x}={b} where A[i, j] = ai, j , b is an n x 1 vector [bo,b1,...,bn-1]T, and is the desired solution vector [xo,x1,...,xn-1]T. We will make all subsequent references to ai, j by A[i,j] and xi by x[i ]. The matrix A is partitioned using block row-wise striping. Each process has n/p rows of the matrix A and the vector b. Since only process with rank 0 performs input and ouut, the matrix and vector must be distributed to the other processes.

The direct and iterative methods for the solution of system of equations such as Jacobi method, Gaussian Elimination method, Conjugate gradient method have been widely used and the parallel programs are given below to execute on message passing clusters. Iterative methods are techniques to solve systems of equations of the form [A]{x}={b} that generate a sequence of approximations to the solution vector x. In each iteration, the coefficient matrix A is used to perform a matrix-vector multiplication. The number of iterations required to solve a system of equations with a desired precision is usually data dependent; hence, the number of iterations is not known prior to executing the algorithm.

Example 6.1:



MPI program to implement solution of matrix system of linear equations Ax=b by Jacobi method.
(Download source code : jacobi-mpi-code-clang.c   / jacobi-mpi-code-flang.f)
(Download source code : matrix-data-jacobi.inp)   / vector-data-jacobi.inp))

  • Objective
  • Write a parallel MPI program, for solving system of linear equations [A]{x} = {b} on a p processor Parallel Processing Platform using Jacobi method

  • Description
  • The Jacobi iterative method is one of the simplest iterative techniques to solve system of linear equations. The ith equation of a system of linear equations [A]{x}={b} is


    If all the diagonal elements of A are nonzero (or are made nonzero by permuting the rows and columns of A), we can rewrite equation (1)



    The Jacobi method starts with an initial guess x0 for the solution vector x. This initial vector x0 is used in the right-hand side of equation (2) to arrive at the next approximation x1 to the solution vector. The vector x1 is then used in the right hand side of equation (2), and the process continues until a close enough approximation to the actual solution is found. A typical iteration step in the Jacobi method is


    We now express the iteration step of equation 3 in terms of residual rk. Equation (3) can be rewritten as



    Each process computes n/p values of the vector x in each iteration. These values are gathered by all the processes and each process tests for convergence. If the values have been computed upto a certain accuracy the iterations are stopped otherwise the processes use these values in the next iterations to compute a new set of values.

  • Input
  • The input data should be given in the following format
    Assume that the real matrix is  of size m x n and the real vector is of size n . Also the number of rows m should be greater than or equal to number of processes p. Process with rank 0 reads the input matrix A and the vector x Format for the input files are given below.

    Input file 1
    The input file for the matrix should strictly adhere to the following format.

    #Line 1 : Number of Rows (m), Number of columns(n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

    A sample input file for the matrix (8 x 8) is given below
    8     8
    61.0     2.0    3.0    4.0    6.0     8.0    9.0    2.0
      2.0   84.0    6.0    4.0    3.0     2.0    8.0    7.0
      3.0     6.0  68.0    2.0    4.0     3.0    9.0    1.0
      4.0     4.0    2.0  59.0    6.0     4.0    3.0    8.0
      6.0     3.0    4.0    6.0  93.0     8.0    3.0    1.0
      8.0     2.0    3.0    4.0    8.0   98.0    3.0    1.0
      9.0     8.0    9.0    3.0    3.0     3.0  85.0    7.0
      2.0     7.0    1.0    8.0    1.0     1.0    7.0  98.0

    Input file 2 The input file for the vector should strictly adhere to the following format.

    #Line 1 : Size of the vector (n
    #Line 2 : (data)

    A sample input file for the vector (8 x 1) is given below

    95.0  116.0  96.0  90.0  124.0  127.0  127.0  125.0

  • Output
  • Process 0 will print the results of the solution x of matrix system B>Ax = b.
    1.0  1.0   1.0   1.0   1.0   1.0   1.0   1.0

    Example 6.2:




    Description for implementation of MPI program for solution of matrix system of linear equations by Gaussian Elimination method
    (Download source code : gauss-elmn-mpi-code-clang.c   / gauss-elmn-mpi-code-flang.f)
    (Download source code : matrix-data-gauss.inp)   / vector-data-gauss.inp))

  • Objective
  • Write a MPI program to solve the system of linear equations [A]{x} = {b} using Gaussian elimination without pivoting and a back-substitution. Assume that A is symmetric positive definite dense matrix of size n. You may assume that n is evenly divisible by p.

  • Description
  • The serial Gaussian elimination algorithm has three nested loops. Several variations of the algorithm exist, depending on the order in which the loops are arranged. The function Gaussian elimination is given below.

    void Gaussian_Elimination (float A[ ][ ], float b[ ], float y[ ], int n)
            {i,j,k;
               for (k = 0; k < n; k++)
              {
               for (j = k+1; j < n; j++)
                   A[k][j] = A[k][j] / A[k][k]

              /* Assume A[k][k] not equal to 0 */
               y[k]= b[k] / A[k][k];
               A[k][k] = 1;
               for (i= k+1; i < n; i++)
                   {
                    for (j = k+1; j < n; j++)
                         A[i][j] = A[i][j] - A[i][k] * A[k][j];
                    b[i] = b[i] - A[i][k]* y[k];  >
                   A[i][k] = 0;
                   }
             }
          }


    Program 1 : A serial gaussian elimination algorithm that converts the system of linear equations Ax = b to a unit upper-triangular system Ux = y. The matrix U occupies the upper-triangular locations of A.


    Program shows one variation of Gaussian elimination, which we will adopt for parallel implementation in the remainder of this section. This program converts a system of linear equations [A]{x}={b} to a unit upper-triangular system [U]{x}={y}. We assume that the matrix U shares storage with A and overwrites the upper-triangular portion of A. The element A[k, j] computed on line 6 of above program is actually U[k, j]. Similarly, the element A[k, k] equated to 1 on line 8 is U[k, k]. The above program assumes that A[k, k] not equal to 0 when it is used as a divisor on lines 6 and 7. A typical computation of Gauss elimination procedure in the kth iteration of the outer loop is shown in the Figure 17.

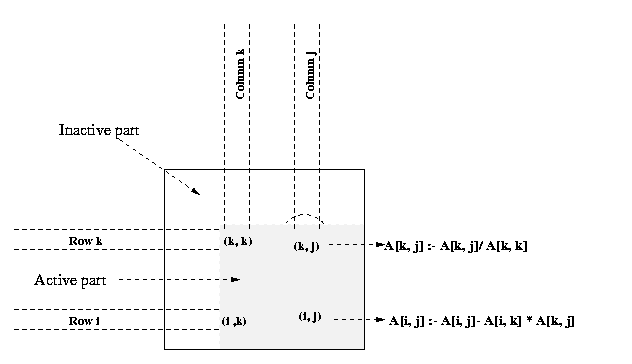

    Figure 17. A typical computation in Gaussian elimination in the kth iteration

    Gaussian elimination involves approximately n2/2 divisions (line 6) and approximately n3/3 - n2/2 subtractions and multiplications (line 12). We assume that scalar arithmetic operations takes unit time. Thus, the total sequential run time of the procedure is approximately 2n3/3 for large n .

  • Parallel implementation with striped partitioning
  • Parallel formulations of the classical Gaussian elimination method for upper-triangularization is discussed.
    We describe a straight-forward Gaussian elimination algorithm assuming that the coefficient matrix is non singular and symmetric positive definite.
    We consider a parallel implementation of program 1 in which the coefficient matrix is rowwise strip-partitioned among the processes. A parallel implementation of this algorithm with column-wise striping is very similar, and its details can be worked out based on the implementation using rowwise striping.

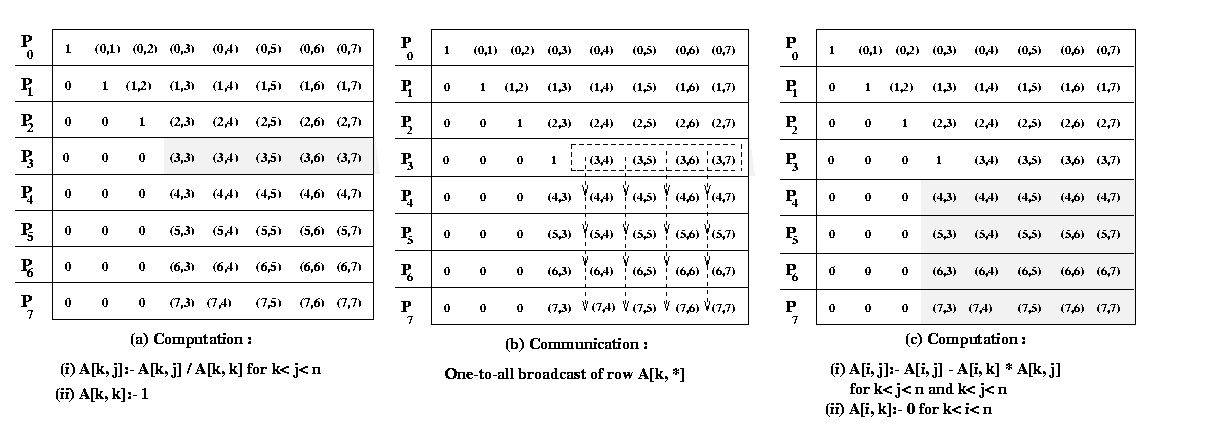

    Figure 18  Gaussian elimination steps during the iteration corresponding to k = 3 for an 8 X 8 matrix and striped rowwise on 8 processors.

    Figure 18 illustrates the computation and communication that takes place in the iteration of the outer loop when k = 3. We firstconsider the case in which one row is assigned to each process, and the n x n coefficient matrix A is striped among n processeslabeled from P0 to Pn-1. In this mapping, process Pi initially stores elements

    A[i, j] for 0 <=j <= n

    Figure 18(a) illustrates this mapping of the matrix onto the processors for n = 8. Program 1 and Figure 18 show that A[k, k+1], A[k, k+2],..., A[k, n-1] are divided by A[k, k] (line 6) at the beginning of the kth iteration. All matrix elements participating in this operation lie on the same process (shown by the shaded portion of the matrix in Figure 18(b). So this step does not require any communication. In the second computation step of the algorithm (the elimination step of line 12), the modified (after division) elements of the kth row are used by all other rows of the active part of the kth row to the processes storing rows k+1 to n-1. Finally, the computation  A[i, j] = A[i, j] - A[i, k] - A[k, j] take place in the remaining active portion of the matrix, which is shown shaded in Figure 18(a).

    This example was chosen not because it illustrates the best way to parallelize this particular numerical computation (it doesn't), because it illustrates the basic MPI send and receive operations in the context of fundamental type of parallel algorithm, applicable in many situations.

  • Input
  • The input should be in following format.
    Assume that the real matrix is  of size m x n and the real vector is of size n . Also the number of rows m should be greater than or equal to number of processes p. Process with rank 0 reads the input matrix A  and the vector x. Format for the input files are given below.

    Input file 1

    The input file for the matrix should strictly adhere to the following format.
    #Line 1 : Number of Rows (m), Number of columns(n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

    A sample input file for the matrix (8 x 8) is given below
    16    16
    61.0     2.0    3.0    4.0    6.0     8.0    9.0    2.0
      2.0   84.0    6.0    4.0    3.0     2.0    8.0    7.0
      3.0     6.0  68.0    2.0    4.0     3.0    9.0    1.0
      4.0     4.0    2.0  59.0    6.0     4.0    3.0    8.0
      6.0     3.0    4.0    6.0  93.0     8.0    3.0    1.0
      8.0     2.0    3.0    4.0    8.0   98.0    3.0    1.0
      9.0     8.0    9.0    3.0    3.0     3.0  85.0    7.0
      2.0     7.0    1.0    8.0    1.0     1.0    7.0  98.0

    Input file 2
    The input file for the vector should strictly adhere to the following format.
    #Line 1 : Size of the vector (n
    #Line 2 : (data)

    A sample input file for the vector (8 x 1) is given below

    95.0  116.0  96.0  90.0  124.0  127.0  127.0  125.0

  • Output
  • Process with rank 0 prints the results of the solution vector x of matrix system Ax = b.
    1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0

    Example 6.3:



    MPI program for implementation of solution of matrix system of linear equations by Conjugate Gradient method
    (Download source code : conjugate-gradient-mpi-code-clang.c   / conjugate-gradient-mpi-code-flang.f)
    (Download source code : matrix-data-cg.inp)   / vector-data-cg.inp))

  • Objective
  • Parallel program implementaiton for Conjugate Gradient Method with MPI library to solve the system of linear equations [A]{x}={b}. Assume that A is symmetric positive definite matrix.

  • Description
  • Description of conjugate gradient method :

    The conjugate gradient (CG) method is an example of minimizing method. A real n x n matrix A is positive definite if xT A x > {0} for any n x 1 real, nonzero vector x. For a symmetric positive definite matrix A, the unique vector x that minimizes the quadratic functional

    f(x) = (1/2)xTAx-xTb

    is the solution to the system Ax = b, here x and b are n x 1 vectors. It is not particularly relevant when n is very large, since the conjugating time for that number of iterations is usually prohibitive and the property does not hold in presence of rounding errors. The reason is that the gradient of functional f (x) is Ax - b, which is zero when f (x) is minimum. The gradient of a function is a n x 1 vector. We explain some important steps in the algorithm. An iteration of a minimization method is of the form

    xk+1 = xk  + taukdk     .............................. (1)


    where tauk is a scalar step size and dkis the direction vector, dk is a descent direction for f at x.  We now consider the problem of determining tauk, given xk and dk, so that f(x) is minimized on the line x = xk + tauk dk, for tauk. The function f(xk+ tau dk) is quadratic in tau, and its minimization leads to the condition

    tau k =  gkTgk / dkTAdk ,   ...................... (2)
    where gk=Axk - b is the gradient (residue)  vector after k iterations. The residual need not be computed explicitly in each iteration because it can be computed incrementally by using its value from the previous iteration. In the (k+1)th iteration, the residual gk+1 can be expressed as follows:

         gk+1  = Axk+1 -

         = A(xk+ tauk dk) - b
         = Axk- b + tauk Ad

         = gk + tauk Adk
    ...........................(3)


    Thus, the only matrix-vector product computed in each iteration is Adk, which is already required to compute tauin the equation (2). If A is a symmetric positive definite matrix and d1, d2,..., dn are direction vectors that are conjugate with respect to A (that is, diT Adj=0 for all 0<n, j<=n, i!=j), then xk+1 in the Equation (1) converges to the solution of Ax = bin at most n iterations, assuming no rounding errors.

    In practice, however, the number of iterations that yields an acceptable approximation to the solution is much smaller than n.  It  also  makes the gradient at xk+1 orthogonal to search direction, i.e  dkT gk+1  = 0.  Now we suppose that the search directions are determined by an iteration of the form

    dk+1 = -gk+1+ betak d     ........................(4)

    where d0 = -g0  and beta0, beta1 , ...... remain to be determined. We find the new search direction in the  plane spanned by the gradient at the most recent point and previous search direction. The parameter betak+1is determined by following equation

    Betak+1 = gTk+1Adk/ dTkAdk     ...................(5)
    And, one can derive orthogonality relations
      gTkg l= 0 (l != k);                 dTkAdl = 0 (l !=k)

    The derivation of the above equation (5)  and orthogonality relations is beyond the scope of this document. For details please refer [ ]. Using equation (3) and orthogonality relations, the equation (5)  can be further reduced to

    Betak+1 = gTk+1gk+1/ gTkgk<     .........................(6)

    The above equations (1) to (6) lead to CG algorithm. The algorithm terminates when the square of the Euclidean vector norm of gradient (residual) falls below a predetermined tolerance value.  Although all of the versions of the conjugate gradient method obtained by combining the formulas for gk, Betak, and tauk in various ways are mathematically equivalent, their computer implementation is not. The following version is compared with respect to computational labor, storage requirements, and accuracy. The following sequence of steps are widely accepted.


    1. tau k         =  gkTgk / dkTAdk
    2. xk+1        = xk  + tauk dk
    3. gk+1        =  gk + tauk Ad
    4. Betak+1 = gTk+1gk+1/ gTkgk
    5. dk+1        = -gk+1 + Betak dk

    where k = 0, 1, 2, .......... Initially we choose x0, calculate g0 = Ax0 - b , and put d0= -g0

    The computer implementation of this algorithm is explained as follows :

    void CongugateGradient(float x0 [ ], float b [ ], float d)
        {
           float    g, Delta0, Delta1, beta;
           float    temp, tau;
           int        iteration;
           iteration = 0;
           x   = x0         g = b;
           g = A x - g;
           Delta0 = gT * g;
           if ( Delta0 <= EPSILON)
               return;
           d = -g;
           do {
              iteration = iteration + 1;
              temp = A * d;
              tau = Delta0 / d * temp;
              x = x + tau * d;

              g = g + tau * temp;
              Delta1 = g * g;
              if ( Delta1 <= EPSILON )
                     break;
              beta = Delta1 / Delta0;
              Delta0 = Delta1;
              d = -g + beta * d;
          } while(Delta0 > EPSILON && Iteration < MAX_ITERATIONS);
           return;


    Regarding one-dimensional arrays of size n x 1 are required for temp, g, x, d. The storage requirement for matrix. A is depends upon the structure ( dense, band, sparse ) of the matrix.The two dimensional n x n array is the simplest structure to store matrix A. For large sparse matrix A this structure wastes a large amount of storage space, for such matrix A suitable storage scheme should be used.

  • The preconditioned conjugate gradient algorithm
  • Let C be a positive definite matrix factored in the form C = E ET, and let the quadratic functional
    f(x) = (1/2)xTAx - xTb + C
    We define second quadratic functional g(y) by the transformation y = ETx,

    g(x) = g(E-Ty) = (1/2)yTA*y - yTb * + C*         where A * = E-1AE-T, b* = E-1b, C* = C.
    Here, A* is symmetric and positive definite. The similarity transformation

    E-TA*ET = E-TE-1A = C-1

    reveals that A* and A have same eigen values. If C can be found such that the condition number of the matrix A* is less than the condition number of the matrix A, then the rate of convergence of the preconditioned method is better than that of conjugate gradient method. We call C the preconditioning matrix, A* the preconditioned matrix, We assume that the matrix C = EET is positive definite, since E is nonsingular by assumption. If the coefficient matrix A has l distinct eigen values, the CG algorithm converges to the solution of the system Ax = b in at most l iterations (assuming no rounding errors). Therefore, if A has many distinct eigen values that vary widely in magnitude, the CG algorithm may require a large number of iterations to converge to an acceptable approximation to the solution.

    The speed of convergence of the CG algorithm can be increased by preconditioning A with the congruence transformation A* = E-1AE-T where E is a nonsingular matrix. E is chosen such that A* has fewer distinct eigen values than A. The CG algorithm is then used to solve A* y =b*, where x =(ET)-1y . The resulting algorithm is called the preconditioned conjugate gradient (PCG) algorithm. The step performed in each iteration of the preconditioned conjugate gradient algorithm are as follows

    1.   tau k         =  gkThk / dkTAdk
    2.   xk+1       = xk + tauk dk
    3.  gk+1       =  gk + tauk Ad
    4.   hk+1       =  C-1gk+1
    5. &nsbp; betak+1 = gTk+1hk+1/ gTkhk
    6.   dk+1       = -hk+1 + betak+1dk

    where k = 0, 1, 2, .......... Initially we choose x0, calculate g0 = Ax0 - b, h0= C-1g0 and d0 = -h0. The multiplication by C-1 in step (4) is to be interpreted as solving a system of equations with coefficient matrix C. A source of preconditioning matrices is the class of stationary iterative methods for solving the system Ax* = b

  • Parallel implementations of the PCG algorithm
  • The parallel conjugate gradient algorithm involves the following  type of computations and communications

    Partitioning of a matrix : The matrix A is obtained by discretization of partial differential equations by finite element, or finite difference method. In such cases, the matrix is either sparse or banded. Consequently, the partition  of the matrix onto p processes play a vital role for performance. For, simplicity , we assume that A is symmetric positive definite and is rowwise block-striped partitioned.

    Scalar Multiplication of a vector and addition of vectors :
    Each of these computations can be performed sequentially regardless of the preconditioner and the type of coefficient matrix. If all vectors are distributed identically among the processes, these steps require no communication in a parallel implementation.

    Vector inner products :
    In some situations, partial vectors are available on each  processes.  MPI Collective library calls are necessary to perform vector inner products  If the parallel computer supports fast reduction operations, such as optimized MPI, then the communication time for the inner-product calculations can be made minimum.

    Matrix-vector multiplication : The computation and the communication cost of the matrix-vector multiplication; depends on the structure of the matrix A. The parallel implementation of the PCG algorithm for three cases one in which A is a block-tridiagonal matrix of the type, two in which it is banded unstructured sparse matrix, and three in which the matrix is sparse give different performance on parallel computers. Various parts of the algorithm in each of the three cases dominate in terms of communication overheads.

    Solving the preconditioned system :
    The PCG algorithm solves system of linear equations in each iteration The preconditioner C is chosen so that solving the system modified system is in expensive compared to solving the original system of equations Ax = b. Nevertheless, preconditioning increases the amount of computation in each iteration. For good preconditioners, however, the increase is compensated by a reduction in the number of iterations required to achieve acceptable convergence. The computation and the communication requirements of this step depends on the type of preconditioner used. preconditioning method such as diagonal preconditioning, in which the preconditioning matrix C has nonzero elements only along the principle diagonal does not involve any communication Also, Incomplete Cholesky (IC) preconditioning, in which C is based on incomplete Cholesky factorization of A and it may involve different computations and communications in parallel implementation.

    The convergence of CG method iterations performed by checking the error criteria i.e. eulicidean norm of the residual vector should be less than prescribed tolerance. This convergence check involves gathering of real value from all processes, which may be very costly operation.

    We consider parallel implementations of the PCG algorithm using diagonal preconditioner for dense coefficient matrix type. As we will see, if C is a diagonal preconditioner, then solving the modified system does not require any interprocessor communication. Hence, the communication time in a CG iteration with diagonal preconditioning is the same as that in an iteration of the unpreconditioned algorithm.

    Thus the operations that involve any communication overheads are computation of inner products, matrix-vector multiplication and, in case of IC preconditioner solving the system.

  • Input
  • The input should be in following format.

    Assume that the real matrix is of size m x n and the real vector is of size n Also the number of rows m should be greater than or equal to number of processes p. Process with rank 0 reads the input matrix A and the vector x Format for the input files are given below.



    Input file 1

    The input file for the matrix should strictly adhere to the following format.

    #Line 1 : Number of Rows (m), Number of columns(n).
    #Line 2 : (data) (in row-major order. This means that the data of second row follows that of the first and so on.)

    A sample input file for the matrix (8 x 8) is given below
    8    8
    61.0     2.0    3.0    4.0    6.0     8.0    9.0    2.0
      2.0   84.0    6.0    4.0    3.0     2.0    8.0    7.0
      3.0     6.0  68.0    2.0    4.0     3.0    9.0    1.0
      4.0     4.0    2.0  59.0    6.0     4.0    3.0    8.0
      6.0     3.0    4.0    6.0  93.0     8.0    3.0    1.0
      8.0     2.0    3.0    4.0    8.0   98.0    3.0    1.0
      9.0     8.0    9.0    3.0    3.0     3.0  85.0    7.0
      2.0     7.0    1.0    8.0    1.0     1.0    7.0  98.0


     Input file 2

    The input file for the vector should strictly adhere to the following format.
    #Line 1 : Size of the vector (n)  #Line 2 : (data)
    A sample input file for the vector (8 x 1) is given below

    95.0  116.0  96.0  90.0  124.0  127.0  127.0  125.0

  • Output
  • Process with rank 0 prints the results of the solution x of linear system of matrix equations Ax = b.
    1.0  1.0  1.0  1.0  1.0  1.0  1.0  1.0

    Example 6.4:

    MPI implementation of Solution of linear system of equations Ax= by Gauss siedel method

  • Objective
  • Implement a simple parallel Gauss-Seidel method with MPI library to solve the system of linear equations [A]{x} = {b}. Assume that Ais symmetric positive definite matrix.

  • Background
  • Iterative methods are techniques to solve systems of equations of the form [A]{x}={b} that generate a sequence of approximations to the solution vector x. In each iteration, the coefficient matrix A is used to perform a matrix-vector multiplication. The number of iterations required to solve a system of equations with a desired precision is usually data dependent; hence, the number of iterations is not known prior to executing the algorithm. Therefore, we can analyze the performance and scalability of a single iteration of an iterative method. Iterative methods do not guarantee a solution for all systems of equations. However, when they do yield a solution, they are usually less expensive than direct methods for matrix factorization for large size of matrices.

    Consider the large sparse system of linear equations of the form [A]{x}={b}, where A is a symmetric positive definite n x n matrix, x is nx 1 vector and b is n x 1 vector. A real n x n matrix is positive definite if xT [A]{x}> {0} for any real nonzero vector x.

    We first consider serial simple jacobi iterative technique to solve matrix system of linear equations [A]{x}={b}.



  • Jacobi iterative method
  • The Jacobi iterative method is one of the simplest iterative techniques. The ith equation of a system of linear equations [A]{x}={b} is



    If all the diagonal elements of A are nonzero (or are made nonzero by permuting the rows and columns of A), we can rewrite equation (1) as :



    The Jacobi method starts with an initial guess x0 for the solution vector x. This initial vector x0 is used in the right-hand side of equation (2) to arrive at the next approximation x1 to the solution vector. The vector x1 is then used in the right hand side of equation (2), and the process continues until a close enough approximation to the actual solution is found. A typical iteration step in the Jacobi method is



    We know express the iteration step of equation 3 in terms of residual rk. Equation 3 can be rewritten as



  • The gauss-seidel method
  • An iteration of the Jacobi method is based on equation (3). During the kth iteration of Jacobi algorithm to solve an n x n system, the step of equation (3) is performed to compute each xk[i] for 0<=i<n.
    The computation of xk[i] uses the value of xk- 1[0], ... , xk-1[i-1], xk-1[i+1],..., xk-1[n-1]. Assuming that the xk[i] values are computed in increasing order of i, the values of xk[0], ... ,xk[i-1] have already been computed before equation (3) is used to compute xk[i]. However, the Jacobi algorithm uses xk-1[0], ...,xk-1[i-1] form the previous iteration. The Gauss-Seidel algorithm uses the most recent value of each variable, and as a result, often achieves faster convergence than the Jacobi algorithm. The basic Gauss-Seidel iteration is given by




  • Parallel implementation
  • The Gauss-Seidel algorithm performs the basic iteration given by equation(5) until satisfactory convergence is achieved. The test for convergence requires an inner-product computation that involves global communication. However, a convergence check need not be performed after each iteration. Given a parallel architecture, the frequency of the convergence check can be chosen to optimize the overall performance on that architecture. The issues in parallelizing the inner-product computation are discussed. We concentrate on performing the iteration step of equation in parallel.

    From a preliminary glance at equation it might appear that computing xk[0], xk[1], ... , xk[n-1] in the kth iteration is completely sequential because xk[i] cannot be computed until xk[i-1] has been computed for 0<=i<n. This is indeed the case if the coefficient matrix A is dense. However, if A is sparse, the computation of xk[i] need not wait until xk[0] , ... ,xk[i-1] have all been computed. A majority of elements in the sparse matrix A are zero. If A[i, j] is zero, then xk[i] on the left-hand side of equation (4) does not depend upon xk[j]. Thus, xk[i] can be computed as soon as all xk[j] have been computed such that j<i and A[i, j] not equal to 0. At any time, all xk[i] for which this condition is true can be computed in parallel.

    Since the computation of xk[i] depends only on the nonzero elements of A[i, j] (with j>i) in the coefficient matrix, the degree of parallelism in Gauss-Seidel method is a function of the sparsity pattern of the lower-triangular part of A.

    For example, consider the block-tridiagonal matrix. Such a matrix results for a finite difference discretization with a natural ordering of grid points. In the   square  grid, except for the points on the left periphery, every point i has i-1 as its neighbor, Therefore except in the rows corresponding to the grid points on the left periphery, A[i, i-1]  0. As a result, for all but square   values of i, the computation of xk[i] has to wait until xk[i-1] has been computed. Hence, natural ordering is not suitable for a parallel implementation of Gauss-Seidel algorithm. It can be shown that each Gauss-Seidel iteration on an n x n block-tridiagonal matrix of the form shown in Figure 1 takes at least O () time regardless of the number of processors used.

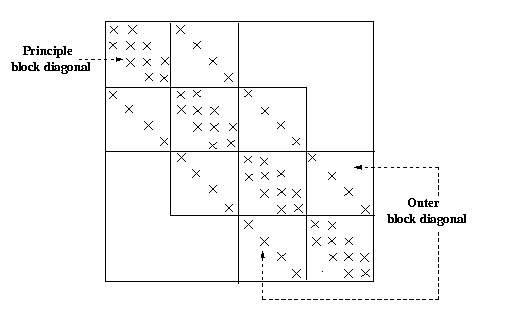

    Figure 1. A 16 x 16 block-tridiagonal matrix. The nonzero elements are represented by the symbol x.

    The order in which the grid points in a discretized domain are numbered determines the order of the rows and columns in the coefficient matrix, and hence, the location of its nonzero elements. The degree of parallelism in the Gauss-Seidel algorithm for a given grid is also sensitive to this ordering. However, given enough processors, an ordering more amenable to parallelization is likely to yield a better overall performance, unless it results in much worse convergence.

  • Red-black ordering
  • We now introduce a numbering scheme for a finite difference grid so that the resulting coefficient matrix permits a high degree of parallelism in a Gauss- Seidel iteration. We will later extend this scheme to deal with sparse matrices other than those resulting from a finite difference discretization. Figure 2 illustrates this ordering, which is known as red-black ordering. In red-black ordering, alternate grid points in each row and column are colored red, and the remaining points are colored black. For a uniform two-dimentional grid in which each point has a maximum of four neighbors, this ensures that no two directly- connected grid points have the same color. After assigning colors to the grid points, all red points are numbered first in natural order, leaving out the black points. This is followed by numbering all the black points in natural order. If the grid has a total of n points and n is even, the red points are numbered form 0 to n/2-1 and the black points are numbered from n/2 to n-1

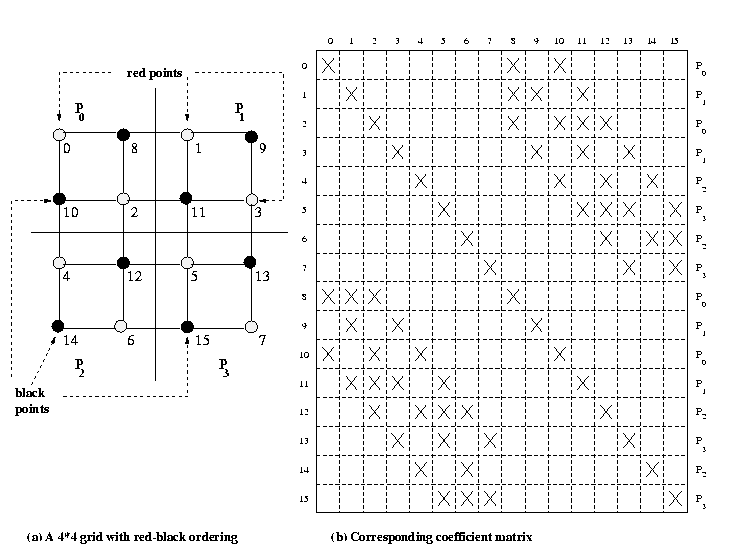

    Figure 2. A partitioning among four processors of a 4 x 4 finite difference grid with red-black ordering.

    Figure 2(b) shows the sparse matrix resulting from a 4 x 4 grid of Figure 2(a). In the coefficient matrix, the first n/2 rows correspond to the red points, and the last n/2 correspond to the black points in the grid. Since red points have only black neighbors and vice-versa, the first n/2 rows have nondiagonal nonzero elements in only the last n/2 columns, and the last n/2 rows have nondiagonal nonzero elements in only the first n/2 columns

    Consider a parallel implementation of the Gauss-Seidel method on a two-dimentional mesh of processors. The grid is partitioned among the processors of the mesh in a block-checkerboard fashion. Figure 2(a) shows the allocation of grid points and the rows of the coefficient matrix among four processors. With red-black ordering, each iteration of the Gauss-Seidel algorithm is performed in two phases. In the kth iteration, first, xk[0], xk[1],..., xk[n/2-1] are computed in parallel. Each of these variables correspond to red points, and uses values of the variables corresponding to its black neighbors form the previous iteration. To perform this compuatation, each processor sends the variable corresponding to the black points lying at each of its four partition boundaries to the respective neighboring processors. A typical processor has four boundaries with square   points on each boundary. Half of these points are red and the other half are black. Therefore, the communication time of the first phase is  , which is equal to  . In the second phase, xk[n/2], xk[n/2+1],..., xk[n-1] are computed in parallel. Each of these variables use the values of the variables corresponding to the red neighbors that were computed in the first phase of the kth iteration. This requires an exchange of all the   variables corresponding to the red points at each of the four partition boundaries. As in the first phase, the communication in the second phase takes   time.

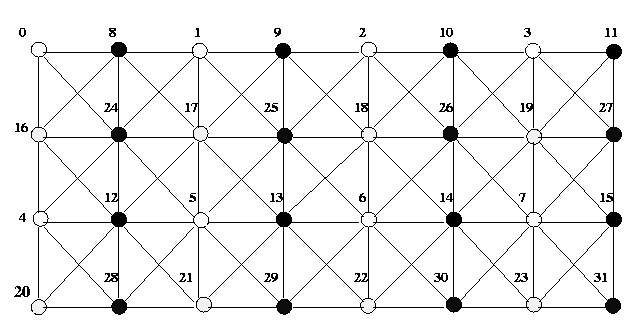

    Figure 3. Multicolored ordering of a finite element graph using four colors.

    Each evaluation of equation for the coefficient matrix resulting form a grid of the form shown in Figure 3 requires at most four multiplications, four substractions, and one division. The number of multiplications and substactions is at most four because there are at most four nondiagonal nonzero elements in each row of A-one corresponding to each of the four neighbors of a point in the grid. These operations are performed once for each variable in every iteration. Assuming that this constant amount of computation per grid point (or per row of the coefficient matrix) takes time tc , the total execution time per iteration is

    Tp = tcn/p + 8ts + 4tw



    The above equation does not include the time spent in testing for convergence, which depends on how and with what frequency the convergence test is performed.

  • Input
  • There will an input file called data which your program will read. This requires that in your code process 0 will read the data from a data file. The data file format is described as the follows: Line one consists of an integer n which represents the number of rows and columns in the square matrix. Line 2 and the next n lines contain single rows of the matrix, with each number separated by at least one blank space. The next n lines contain single elements of the n x 1 vector. For example, the 8 x 8 matrix has 64 elements and the 8 x 1 vector has 8 elements as explained below.

    8
    61.0     2.0    3.0    1.0    6.0     8.0    9.0    2.0
      2.0   84.0    6.0    4.0    3.0     2.0    8.0    7.0
      3.0     7.0  68.0    2.0    4.0     3.0    9.0    1.0
      4.0     6.0    9.0  59.0    6.0     4.0    3.0    8.0
      6.0     8.0   2.0    8.0   93.0     8.0    3.0    1.0
     7.0     4.0   3.0     9.0     1.0   98.0    3.0    1.0
     4.0     2.0   8.0     4.0     3.0     2.0  85.0    7.0
     2.0     8.0   8.0     1.0     2.0     5.0    6.0  98.0

    10.0  50.1  72.5  43.0  10.0  52.1  74.5  58.1

  • Output
  • Process with rank 0 will output the results of the solution x of [A] {x}={b} with one vector element per line

    Centre for Development of Advanced Computing
