Example 1.1

Write a simple MPI I/O program performing sequential I/O to multiple files

Example 1.2

Write a Pthread I/O program performing each thread writing to seperate file ( Assignment )

Example 1.3

Write an MPI program performing MPI I/O to separate files (Using MPI 2.0)

Example 1.4

Write an MPI program performing MPI I/O to single file (Using MPI 2.0)

Example 1.5

Write an Pthread I/O program reading the file with different number of threads. ( Assignment )

Example 1.6

Write a MPI I/O program to read the file with different number of processes. (Using MPI 2.0)



Introduction to I/O : Threads

In Multi Core programming environment, within the same time interval, there may be multiple processes active competing for memory, I/O and CPU resources. Several applications are CPU-bound (computation intensive) and some of I/O bound (input-output intensive). The execution of various types of programs in the Multi-Core System to balance bandwidth among various function units i s a challenging task. The program interleaving is intended to promote better resource utilization through overlapping I/O and CPU operations on multiple cores. For example, whenever a thread P1 is tied up with I/O operations, the OS scheduler can switch the CPU to thread P2. This allows simultaneous the simultaneous execution of several programs in the system. When P2 is done, the CPU can be switched to P3. Note the Overlapped I/O and CPU operations and the CPU wait time are greatly reduced. The performance of system can be limited by computer-bound jobs or input-output (I/O) bound jobs. Various techniques are used to manage I/O data transfer. Techniques used to achieve maximum concurrency of I/O and CPU processing is an important in the Multi-core programming environment.

In Multi-core environment, too many threads can seriously degrade program performance and the issues of cache, virtual memory, thread locks, and time slicing play a key role for performance degradation. In some situations, all the threads waiting for the lock mus know wait for the holding thread to wake up and release the lock. These problems are addressed and the best approach is to limit the the number of runnable threads to the hardware threads, and possibly limit the number of outer level cached in typical multi-socket multi-core systems.

When a thread is blocked waiting for an external event, such as disk I/O request, the OS takes it off the round-robin schedule. Here, a blocked thread does not cause time-slicing overhead and a program may have more software threads than hardware threads, and still run efficiently if most of the OS threads are blocked. The concept of compute threads & I/O threads may help to reduce the overheads. Special care is needed to ensure that the compute threads should match the processor resources. Compute threads should be the threads that are runnable most of the time. Ideally, the compute threads should be the threads never block an external events, instead feed from task queues that provide work. The I/O threads are threads that wait on external events most of the time, and thus do not contribute to having too many threads. Too many threads can degrade program performance and the impact comes in two ways. First partitioning a fixed amount of work among too many threads and this may give too little work for each thread. This leads to overhead of starting and terminating threads swamps the useful work. Second, having too many concurrent software threads incurs overheads from having to share fixed hardware resources.

Much attention has been paid on the implementation issues for concurrent overlapping I/O operations that abide by the atomicity semantics of the Message Passing Interface (MPI) standard. The atomicity refers as a synchronization operation and it is a process often needs to perform a sequence of operations as a single atomic operation. An atomic operation is one that is indivisible (Once it starts, it cannot be interrupted in the middle, meaning other processes cannot see an intermediate state.) and finite (once it starts, it will finish in a finite amount of time). A synchronization operation causes processes to wait for one another, or allows processes that are waiting to resume execution. On Multi-Cores, use of Portable Operating System Interface (POSIX) at granularity level address the concurrent overlapping I/O. The POSIX definition considers atomicity at the granularity of read () /write () calls in which only a contiguous file space can be specified in a single I/O request file regions.



Multi-Cores : Concurrent Overlapping - POSIX Threads

The concurrent overlapping I/O occurs when I/O requests from multiple processes are issued simultaneously to the file system and overlaps exist among the file regions accessed by these requests. If all requests are read requests, the file system can use the disk cache to duplicate the overlapped data for the requesting processes and no conflict will exist when obtaining file data among the processes. However, when one or more I/O requests are write requests, the outcome of the overlapped regions, either in the file or process's memory, can vary depending on the implementation of the file system. This problem is commonly referred to as I/O atomicity. The POSIX defines atomicity such that all the byte from a single file I/O request that start out together end-up together, without interleaving from other I/O requests.

The POSIX definition can be simply interpreted as that either all or none of the data written by a process is visible to other processes. The on-visibility of data to other processes can occur when the write data is cached in a system buffer and has not been flushed to the disk or the data is flushed but overwritten by other processes. Hence, when POSIX semantics are applied to the concurrent I/O operations, resulting data in the overlapped regions in the disk shall consist of data from only one of the write requests. The POSIX read and write calls share a common characteristics such as one I/O request can only access a contiguous file region specified by a file pointer and the amount of data starting from the pointer. Therefore, the overlapped data written by two or more POSIX I/O calls can only be a contiguous region in the file. Many POSIX file systems implement the atomic I/O by serializing the process of requests such that the overlapped regions can only be accessed by one process at any moment.

Programs having the following characteristics may be well suited for pthreads:

  • Work that can be executed, or data that can be operated on, by multiple tasks simultaneously
  • Block for potentially long I/O waits
  • Use many CPU cycles in some places but not others
  • Must respond to asynchronous events
  • Some work is more important than other work (priority interrupts)
  • Pthreads can also be used for serial applications, to emulate parallel execution. A perfect example is the typical web browser, which for most people, runs on a single cpu desktop/laptop machine.

    In many applications, a data structure is read frequently but written infrequently. For such scenarios, it is useful to note that multiple reads can proceed without any coherence problems. However, writes must be serialized. This points to an alternate structure called a read-write lock. A thread reading a shared data item acquires a read lock on the variable. A read lock is granted when there are other threads that may already have read locks. If there is a write lock on the data (or if there are queued write write locks), the thread performs a condition wait. Using this principle, the authors designed function read locks mylib_rwlock_unlock , write locks mylib_rwlock_wlock and unlocking mylib_rwlock_unlock .



    Multi Cores - MPI 1.X : Non Parallel I/O


    In the past, MPI applications developed using I/O rely on the features provided by the underlying operating system, typically Unix. MPI-l does not have any explicit support for parallel I/O. A simple way of doing parallel I/O in MPI is let one process do all I/O. Figure 1.1 describes typical situation where sequential I/O from a parallel program is discussed.


    MPI 1.X : Non Parallel I/O from an MPI Program

    In the past, MPI applications developed using I/O rely on the features provided by the underlying operating system, typically Unix. MPI-l does not have any explicit support for parallel I/O. A simple way of doing parallel I/O in MPI is let one process do all I/O. Figure 1.1 describes typical situation where sequential I/O from a parallel program is discussed. A simple example code 1.1 is written below in which the set of processes have a distributed array of integers to be written to a file.

    Unix Process

    Figure 1.1 Sequential I/O from a parallel program

    For simplicity, we assume that each process has 100 integers of the array, whose total length thus depends on how many processes there are. In the figure, the circles represent processes; the upper rectangles represent the block of 100 integers in each process's memory; and the lower rectangle represents the file to be written. The program begins with each process initializing its portion of the array. All processes but process a send their section to process 0. Process a first writes its own section and then receives the contributions from the other processes in turn (the rank is specified in MPI_Recv) and writes them to the file. This is often the first way I/O is done in a parallel program that has been converted from a sequential program, since no changes are made to the I/O part of the program. There are a number of other reasons why I/O in a parallel program may be done this way.


    sk queues that provide work. The I/O threads are threads that wait on external eve

    The parallel machine on which the program is running may support I/O
    only from one process.

    One can use sophisticated I/O libraries, perhaps written as part of
    a high-level data-management layer, that do not have parallel I/O capability.

    The resulting single file is convenient for handling outside
    the program (by mv, cp, or ftp, for example).

    Performance may be enhanced because the process doing the I/O may be
    able to assemble large blocks of data


    The lack of parallelism limits performance and scalability, particularly if the
    underlying file system permits parallel physical I/O.

    /* Example of sequential Unix write into a common file */
    #include "mpi.h"
    #include
    #define BUFSIZE 100
    int main (int argc, char *argv [])
    {
    int i, myrank, numprocs, buf [BUFSIZE];
    MPI_Status status;
    FILE *myfile;

    MPI_Init (&argc, &argv);
    MPI_Comm_rank(MPI_COMM_WORLD, &myrank);
    MPI_Comm_size (MPI_COMM_WORLD, &numprocs);

    for (i=0; i < BUFSIZE; i++)
          buf [i] = myrank * BUFSIZE + i;

    if (myrank != 0)
        MPI_Send(buf, BUFSIZE, MPI_INT, 0, 99, MPI_COMM_WORLD);
    else
    {
        myfile = fopen ("testfile", "w");
        fwrite(buf, sizeof(int), BUFSIZE, myfile);
        for (i=; i < numprocs; i++)
        {
          MPI_Recv(buf,BUFSIZE,MPI_INT,i,99,MPI_COMM_WORLD,&status);
          fwrite(buf, sizeof(int), BUFSIZE, myfile);
        }
    fclose(myfile);
    }
    MPI_Finalize();
    return 0;
    }

    Example 1.1 Code for Sequential I/O from a parallel program




    MPI 1.x : Non-MPI Parallel I/O

    The example 1.1 does not address the parallelism, the next step in the migration of a sequential program to a parallel one is to have each process write to a separate file, thus enabling parallel data transfer, as shown in Figure 1.2. Here each process functions completely independently of the others with respect to I/O. Thus, each program is sequential with respect to I/O and can use language I/O. Each process opens its own file, writes to it, and closes it. We have ensured that the files are separate by appending each process's rank to the name of its output file.

    Unix Process

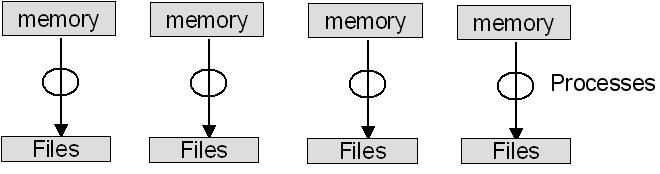

    Figure 1.2 Non-MPI I/O to multiple files in a parallel program

    The advantage of this approach is that the I/O operations can now take place in parallel and can still use sequential I/O libraries if that is desirable. The program is explained in Example 1.2. The primary disadvantage is that the result of running the program is a set of files instead of a single file. This has multiple disadvantages:



    The files may have to be joined together before being used as input to another application.

    It may be required that the application that reads these files be a parallel program itself and be started with the exact same number of processes.

    It may be difficult to keep track of this set of files as a group, for moving them, copying them, or sending them across a network.

    /* Example of parallel Unix write into a separate files */
    #include "mpi.h"
    #include
    #define BUFSIZE 100
    int main (int argc, char *argv [])
    {
    int i, myrank, numprocs, buf [BUFSIZE];
    char *filename[128];
    FILE *myfile;

    MPI_Init (&argc, &argv);
    MPI_Comm_rank(MPI_COMM_WORLD, &myrank);
    MPI_Comm_size (MPI_COMM_WORLD, &numprocs);

    for (i=0; i < BUFSIZE; i++)
          buf [i] = myrank * BUFSIZE + i;

      sprintf(filename, "testfile.%d", myrank);
      myfile = fopen(filename, "w");
      fwrite(buf, sizeof(int), BUFSIZE, myfile);
      fclose(myfile);
    MPI_Finalize();
    return 0;
    }

    Example 1.2 Code for Non-MPI Parallel I/O to multiple files


    The performance may also suffer because individual processes may find their data to be in small contiguous chunks, causing many I/O operations with smaller data items. This may hurt performance more than can be compensated for by the parallelism.



    MPI 2.X : MPI I/O to Separate files

    MPI standard 2.0 defines new way of parallel I/O features and the examples 1.1 & 1.2 can be re-written using MPI 2.0 library calls.That is all the I/O operations can be done using MPI 2.0 library calls. A detailed study is required to understand the overheads while we use MPI 2.0 library calls. The following changes are required from program point of view and it has advantages and disadvantages from performance point of view.


    First, the declaration FILE has been replaced by MPI_File as the type of myfile.

    Note that myfile is now a variable of type MPI_File, rather than a pointer to an object of type FILE.

    Second, the MPI function corresponding to fopen is called MPI_File_open.
    MPI_File_open(MPI_COMM_SELF,filename,MPI_MODE_CREATE | MPI_MODE_WRONGLY, MPI_INFO_NULL, &myfile);

    The first argument is a communicator. Files in MPI are opened by a collection of processes identified by an MPI communicator. This ensures that those processes operating on a file together know which other processes are also operating on the file and can communicate with one another. Here, since each process is opening its own file for its own exclusive use, it uses the communicator MPI_COMM_SELF.
    The second argument is a string representing the name of the file, as in fopen. The third argument is the mode in which the file is opened. Here it is being both created (or overwritten if it exists) and will only be written to by this program. The constants MPI_MODE_CREATE and MP_MODE_WRONLY represent bit flags that are or'd together in C, much as they are in the Unix system call open. The fourth argument, MPI_INFO_NULL here, is a predefined constant representing a dummy value for the info argument to MPI_File_open. As the last argument, we pass the address of the MPI_File variable, which the MPI_File_open will fill in for us. As with all MPI functions in C, MPI_File_open returns as the value of the function a return code, which we hope is MPI_SUCCESS. for simplicity.




    The function, which actually does the I/O in this program, is MPI_File_write(myfile, buf, BUFSIZE, MPI_INT,MPI_STATUS_IGNORE);

    Here the way of describing a buffer to be written (or read) gives the advantages as it does in message passing: it allows arbitrary distributions of noncontiguous data in memory to be written with a single call, and it expresses the datatype, rather than just the length, of the data to be written, so that meaningful transformations can be done on it as it is read or written, for heterogeneous environments. Here we just have a contiguous buffer of BUFSIZE integers, starting at address buf. The final argument to MPI_File_write is a "status" argument, of the same type as returned by MPI_Recv. MPI-2 specifies that the special value MPI_STATUS_IGNORE can be passed to any MPI function in place of a status argument, to tell the MPI implementation not to bother filling in the status information because the user intends to ignore it. This technique can slightly improve performance when status information is not needed.


    Fourth, the MPI function corresponding to close is called MPI_File_close(&myfile);

    The function MPI_File_close(&myfile); closes the file. The address of myfile is passed rather than the variable itself because the MPI implementation will replace its value with the constant MPI_FILE_NULL. Thus the user can detect invalid file objects.



    /* Example of parallel MPI write into a separate files */
    #include "mpi.h"
    #include
    #define BUFSIZE 100
    int main (int argc, char *argv [])
    {
    int i, myrank, numprocs, buf [BUFSIZE];
    char *filename[128];
    FILE *myfile;

    MPI_Init (&argc, &argv);
    MPI_Comm_rank(MPI_COMM_WORLD, &myrank);
    MPI_Comm_size (MPI_COMM_WORLD, &numprocs);

    for (i=0; i < BUFSIZE; i++)
      buf [i] = myrank * BUFSIZE + i;
      sprintf(filename, "testfile.%d", myrank);

      MPI_File_open(MPI_COMM_SELF, filename, MPI_MODE_WRONLY | MPI_MODE_CREATE,
                  MPI_INFO_NULL, &myfile);

      MPI_File_write(myfile, buf, BUFSIZE, MPI_INT, MPI_STATUS_IGNORE);

      MPI_File_close(&myfile);

    MPI_Finalize();
    return 0;
    }


    Example 1.3 Code for MPI I/O to separate files in a parallel program


    MPI 2.X : Parallel MPI I/O to a Single File

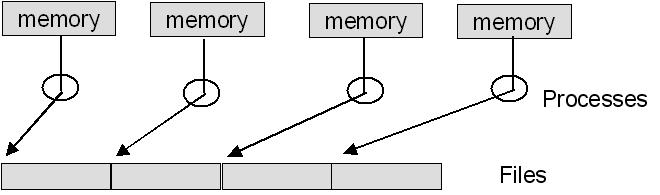

    The processes share a single file instead of writing to separate files, thus eliminating the disadvantages of having multiple files while retaining the performance advantages of parallelism. We will still not be doing anything that absolutely cannot be done through language or library I/O on most file systems. The new version of the program is shown. The first difference between this program and that of Figure 2.5 is in the first argument of the MPI_File_open statement. Here we specify MPI_COMM_WDRLD instead of MPI_COMM_SELF, to indicate that all the processes are opening a single file together. This is a collective operation on the communicator, so all participating processes must make the MPI_File_open call, although only a single file is being opened. Our plan for the way this file will be written is to give each process access to a part of it. The part of the file that is seen by a single process is called the file view and is set for each process by a call to MPI_File_set_view. The call looks like



    MPI_File_set_view(thefile, myrank * BUFSIZE * sizeof(int), MPI_INT, MPI_INT, "native", MPI_INFO_NULL);

    The first argument identifies the file. The second argument is the displacement (in bytes) into the file where the process's view of the file is to start. Here we multiply the size of the data to be written (BUFSIZE * sizeof (int)) by the rank of the process, so that each process's view starts at the appropriate place in the file. This argument is of a new type MPI_Offset, which on systems that support large files can be expected to be a 64-bit integer.

    The next argument is called the etype of the view; it specifies the unit of data in the file. Here it is MPI_INT, since we will always be writing some number of MPI_INTs to this file. The next argument, called the filetype, is a very flexible way of describing noncontiguous views in the file. In our simple case here, where there are no noncontiguous units to be written, we can just use the etype, MPI_INT. The next argument is a character string denoting the data representation to be used in the file. The native representation specifies that data is to be represented in the file exactly as it is in memory. The final argument is an info object as in MPI-File_open. Here again it is to be ignored, as dictated by specifying MPI_INFD_NULL for this argument. Now that each process has its own view, the actual write operation

    MPI_File_write(thefile, buf, BUFSIZE, MPI_INT, MPI_STATUS_IGNDRE);

    is exactly the same as in our previous version of this program. But because the MPI_File_open specified MPI_COMM_WORLD in its communicator argument, and the MPI_File_set_view gave each process a different view of the file, the write operations proceed in parallel and all go into the same file in the appropriate places.


    /* Example of parallel MPI write into a separate files */
    #include "mpi.h"
    #include
    #define BUFSIZE 100
    int main (int argc, char *argv [])
    {
    int i, myrank, numprocs, buf [BUFSIZE];
    char *filename[128];
    MPI FILE thefile;

    MPI_Init (&argc, &argv);
    MPI_Comm_rank(MPI_COMM_WORLD, &myrank);
    MPI_Comm_size (MPI_COMM_WORLD, &numprocs);

    for (i=0; i < BUFSIZE; i++)
      buf [i] = myrank * BUFSIZE + i;
      sprintf(filename, "testfile.%d", myrank);

      MPI_File_open(MPI_COMM_SELF, filename, MPI_MODE_WRONLY | MPI_MODE_CREATE,
                    MPI_INFO_NULL, &myfile);

      MPI_File_set_view(thefile, myrank * BUFSIZE * sizeof(int),
                    MPI_INT, MPI_INT, "native", MPI_INFO_NULL);

      MPI_File_write(thefile, buf, BUFSIZE, MPI_INT, MPI_STATUS_IGNORE);

      MPI_File_close(&thefile);

    MPI_Finalize();
    return 0;
    }

    Example 1.4 Code for MPI I/O to single file in a parallel program


    Compilation and Execution of I/O Threaded & MPI-2 I/O Programs

    You should include pthread.h in the program and use linker flag -lpthread when linking.

    The specific files to be used will differ with implementation on various platforms.

    (A) Using command line arguments:

    The compilation and execution details of Pthreads programs will vary from a system to another. The essential steps are common to all the systems.

    # cc -o -lpthread

    For example to compile a simple Hello World program user can type

    # cc Pthreads_HelloWorld.c -o Pthreads_HelloWorld -lpthread

    (B) Using a Makefile:

    For more control over the process of compiling and linking programs for Pthreads, you should use a 'Makefile'. You may also use some commands in Makefile particularly for programs contained in a large number of files. The user has to specify the names of the program and appropriate paths to link some of the libraries required for Pthreads programs in the Makefile


    To compile and link a Pthreads program, you can use the command,

    make

    (C) Executing a Program:

    To execute a Pthreads Program, type the name of the executable at command prompt.

    Name of the Executable

    For example, to execute a simple HelloWorld Program, user must type:

    # HelloWorld

    The output must look similar to the following:

    Hello World!
