hyPACK-2013 Mode-4 : Power Management - NVML CUDA enabled NVIDIA GPU

NVIDIA's Compute Unified Device Architecture (CUDA) is a software platform for massively parallel high-performance computing on the company's powerful GPUs. NVIDIA's software CUDA programming model effectively use GPUs which could be harnessed for tasks other than graphics, achieving teraflops of computing power. For high performance computing, the programming model has been designed to improve the shaders, which is commonly used in terminology in Graphics Computing and shaders are called as stream processing or thread processing.

CUDA Tool Kit 5.0 :         CUDA Toolkit Lib.         CUDA NVML (Power-aware Comp.)
Compilation & Execution :         Makefile     Command line

List of Codes using NVML

Example 1 : Matrix Matrix Multiplication using NVML (Offload)

Example 2 : Matrix Matrix Multiplication using CUBLAS -NVML

Example 3 : Measure Power Consumption for Device Query Operation on GPUs

Example 4 : Measure Power Consumption for Bandwidth on GPUs

Example 5 : Measure Power Consumption for floating point computations based on global memory with /without coalesced memory access

Example 6 : Measure Power Consumption for Solution of Poisson Eq. (PDE) Solver (Assignment)

Example 7 : Measure Power Consumption for String Search algorithm (Assignment)

CUDA Programming model automatically manages the threads and it is significantly differs from single threaded CPU code and to some extent even the parallel code. Efficient CUDA programs exploit both thread parallelism within a thread block and coarser block parallelism across thread blocks. Because only threads within the same block can cooperate via shared memory and thread synchronization, programmers must partition computation into multiple blocks.

Visit http://developer.download.nvidia.com/compute/cuda/sdk/website/samples.html to download CUDA enabled NVIDIA programs.

Sample programs can be downloaded from http://www.nvidia.com/object/cuda_get_samples.html

• Use one host thread per device, since any given host thread can call cudaSetDevice() at most one time.
• Use the push/pop context functions provided by the CUDA Driver API.

Applications that require tight coupling of the various CUDA devices within a sytem, these approaches may not be sufficent due to sychronization or communication with each other. The CUDA Runtime now provides features in which single hos thread could easily launch work onto any devices it needed. To acommplish this, a host thread can call cudaSetDevice() at any time to change the currently active device. Also, host-thread can now control more than one device. The CUDA Driver API (Version 4.0) provides a way to access multiple devices from within a singel host thread namely ( cuCtxPushCurrent() cuCtxPopCurrent()). For convenience sake, CUDA application developers can use set/get context management interface paradigm and CUDA 4.0 provides additional features. With this in mind, cuCtxSetCurrent()) and cuCtxGetCurrent()) have been added to version 4.0 of the CUDA Driver API in addition to the existing cuCtxPushCurrent()) and cuCtxPopCurrent()) functions.

Programming a multi-GPU application is straight forward and easy from programming an application to utilize multiple cores or sockets because CUDA is completely orthogonal to CPU thread management or message passing APIs. Most importantly, selecting the correct GPU, which in most cases is a free (without a context) GPU is important. Also, identification of compute intensive portion of the existing multi-threaded CPU code and port the code to GPU is easy without changing the inter-CPU-thread communication code unchanged.

In order to issue work to a GPU, a context is established between a CPU thread (or group of threads) and the GPU. Only one context can be active on a GPU at any particular instant. Similarly, a CPU thread can have one active context at a time. A context is established during the program's first call to a function that changes state (such as cudaMalloc(), etc.), so one can force the creation of a context by calling cudaFree(0). Note that a context is created on GPU 0 by default, unless another GPU is selected explicitly prior to context creation with a cudaSetDevice() call. The context is destroyed either with a cudaDeviceReset() call or when the controlling CPU process exits.

MPI, OpenMP, Pthreads on Host CPU (Multi-Core) & Multi-GPU : In order to issue work to p GPUs concurrently, a program can either use p CPU threads, each with its own context, or it can use one CPU thread that swaps among several contexts, or some combination thereof. CPU threads can be lightweight (pthreads, OpenMP, etc.) or heavyweight (MPI). Note that any CPU multi-threading or message-passing API or library can be used, as CPU thread management is completely orthogonal to CUDA. For example, one can add GPU processing to an existing MPI application by porting the compute-intensive portions of the code without changing the communication structure. For synchronization across computations on GPUs, the host-CPU or GPUDirect is required for communication.

Even though a GPU can execute calls from one context at a time, it can belong to multiple contexts. For example, it is possible for several CPU threads to establish separate contexts with the same GPU (though multiple CPU threads within the same process accessing the same GPU would normally share the same context by default). The GPU driver manages GPU switching between the contexts, as well as partitioning memory among the contexts (GPU memory allocated in one context cannot be accessed from another context).

In many applications, the algorithm is designed in such a way that each CPU thread (Pthreads, OpenMP, MPI) to control a different GPU. Achieving this is straightforward if a program spawns as many lightweight threads as there are GPUs - one can derive GPU index from thread ID. For example, OpenMP thread ID can be readily used to select GPUs. MPI rank can be used to choose a GPU reliably as long as all MPI processes are launched on a single host node having GPU devices and host configuration of CUDA programming environment.

Multi-Threaded Programming :
This has several important ramifications for multi-threaded processes and some of these are given below. For more detail refer CUDA ToolKit 4.0 for Applications

• Host threads can now share device memory allocations, streams, events, or any other per-context objects (as seen above).

• Concurrent kernel execution on devices of compute capability 2.x is now possible across host threads, rather than just within a single host thread. Note that this requires the use of separate streams; unless streams are specified, the kernels will be executed sequentially on the device in the order they were launched. In all cases, kernel launch via the <<<>>> notation is a thread-safe operation.

• cudaGetLastError() ) is per-host-thread: it returns the last error returned by an API call in that host thread, even if other host threads are concurrently accessing the same device

In CUDA version 4.0, a features in which multiple host threads to set a particular context current simultaneously using either cuCtxSetCurrent() or cuCtxPushCurrent(). For more information refer CUDA Toolkit 4.0 for Applications. This has several important ramifications for multi-threaded processes:

• Host threads can now share device memory allocations, streams, events, or any other per-context objects (as seen above).

• Concurrent kernel execution devices of compute capability 2.x is now possible across host threads, rather than just within a single host thread. Note that this requires the use of separate streams; unless streams are specified, the kernels will be executed sequentially on the device in the order they were launched

• The CUBLAS library now supports a new API that is thread-safe and allows the application to more easily take advantage of parallelism using streams, especially for functions with scalar return parameters. This new API allows CUBLAS to work cleanly with applications using the new multi-threading features of CUDA Runtime 4.0. The legacy CUBLAS API is still supported, but it is not thread-safe and does not offer as many opportunities for parallelism with streams as the new API.

• The CURAND library now supports double precision Sobol, scrambled Sobol, log-normal distributions, and a faster setup technique for XORWOW.

• The CUFFT and CUBLAS library APIs now include functions that will report the library's version number.

• The CUSPARSE library now provides a solver for triangular sparse linear systems via the cusparse*csrsv_analysis() and cusparse*csrsv_solve() API functions.

• The Thrust template library and the NPP image processing library are now bundled with the CUDA Toolkit, with no additional download required.

• Some API functions in the NPP library were changed to pass results via device pointer instead of via host pointer for consistency with all of the rest of the NPP API.

GPU accelerated computing systems have drawn the attention of researchers because they have tremendous computational power and high memory bandwidth, and are inherently well suited for massively data parallel computation. Also, the the consumption of power in milliwatts to run the application starting stage to end of the execution is relatively in comparsion to counter-part multi-core CPUs. While the memory bandwidth and latency issues stall a CPU, a GPU may outperform a CPU in these aspects. For example the memory bandwidth for modern Nvidia GPU processors is C2075 is more than 140 GB/s. NVML is a C-based interface for monitoring and managing various states within Nvidia Tesla GPUs NVML has several functions that can measure characteristics of GPUs, such as device power, device temperature, unit power, unit temperature, and clock frequency. Using NVML, we measure power and temperature.

Nvidia Management Library (NVML) high level utility called nvidia-smi not only provides a way to measure power but also various other features like the ability to set ECC (Error Correction Code) to zero if it is not needed, or to monitor memory usage, among other things.

Table I. GPU operations used for measurement of Power Consumption on NVIDIA GPUs

NVML is a C-based interface for monitoring and managing various states within Nvidia Tesla GPUs. NVML has several functions that can measure characteristics of GPUs, such as device power, device temperature, unit power, unit temperature, and clock frequency. Using NVML, we measure power and temperature Nvidia Management Library (NVML) high level utility called nvidia-smi not only provides a way to measure power but also various other features like the ability to set ECC (Error Correction Code) to zero if it is not needed, or to monitor memory usage, among other things. NVML can be used to measure power when running the kernel but since nvidia-smi is a high level utility the rate of sampling power usage is very low and unless the kernel is running for a very long time we would not notice the change in power. NVML offers a lot of useful utilities for not only GPUs such as C2075 but also the Nvidia Tesla C2050 GPU where one would see power in states rather than in milliwatts. The nvmlDeviceGetPowerUsage function in the NVML library retrieves the power usage reading for the device, in milliwatts. This is the power draw for the entire board, including GPU, memory, etc. The reading is accurate to within a range of +/- 5 watts error with milliwatt precision. It is only available if power management mode is supported.

The measurement of CPU and GPU operations have been done independently as a subroutines, indicated in table I and an average value is considered to estimate the power using NVML library calls for important GPU operations. Results are validated using total power-watt values for appropriate test-bed. For system with CUDA carma system and AMD GPUs, power consumption for various GPU operations are measured using power off meter and other low level benchmarks. On AMD APUs, the power off meter is used to get the total power consumed for the application.

On a Message Passing Cluster, the calculation of power consumption on host and the device such as NVIDIA GPU or AMD GPU using OpenL and CUDA is required. The calculated power consumption out of GPU device, data transfer from host to device & device to host, IO operations as well as initial programming environment will contribute to the total power consumption of an application.

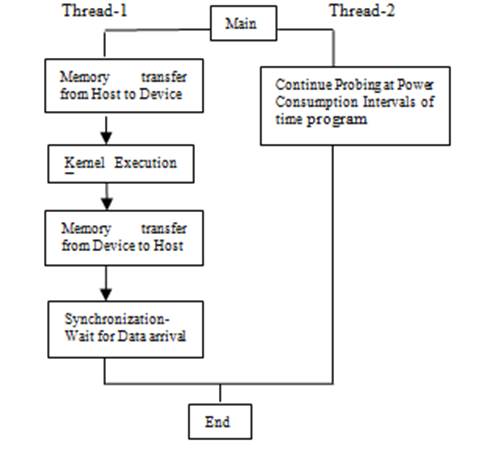

Figure 2. Typical Pthread Model for Calculation of Power Consumption on a system

Figure 2 explains the flow of completion of jobs in which two Pthreads are used. One thread executes job on GPU accelerator using CUDA or OpenCL and another thread probes the power-off meter and gathers the reported power values. Also, one thread works on Xeon multi-coprocessor and records the power values for the entire system. On NVIDIA GPU, we use NVML library calls with CUDA and OpenCL. Multiple threads can be used to bind multiple accelerators and coprocessors to record the power consumed and master thread gathers the data and display on the portal. The resolution of power meter is in watts. In the figure 2, we explore the use of the NVML library APIs to measure real-time power consumption of BLAS kernels and PDE solver. We analyzed the performance and real-time power consumption of two fundamental linear algebra algorithms - DGEMM and OpenMP & CUDA, OpenCL implementation PDE Solver. The nvmlDeviceGetPowerUsage()routine exports the current power in milliwatt resolution. The power reported is that for the entire board, including GPU and memory.

The power analyzer electricity watt meter is also used to measure the reported power values. The Watt's Up power meter is an external measurement device that is plugged into the system and it provides various measurements via a USB serial connection. The power metrics collected include average power, voltage, current, and various others. Energy can be derived based on the average power and time. The results are system-wide and low resolution, with updates only once a second. Limited memory exists on power-meter and hence the reported power values for computational performed are collected. Another thread reads the data on a regular basis, and then returns overall values when an instrumented program requests it.

For Compilation of CUDA program, additional steps are involved, partly because the program targets two different processor architectures (the GPU and a host CPU), and partly because of CUDA's hardware abstraction. Compiling a CUDA program is not as straightforward as running a C compiler to convert source code into executable object code. The same source file mixes C/C++ code written for both the GPU and the CPU, and special extensions and declarations identify the GPU code. The first step is to separate the source code for each target architecture.

nvcc is a compiler driver that simplifies the process of compiling CUDA code: It provides simple and familiar command line options and executes them by invoking the collection of tools that implement the different compilation stages. nvcc's basic work flow consists in separating device code from host code and compiling the device code into a binary form or cubin object. The generated host code is output either as C code that is left to be compiled using another tool or as object code directly by invoking the host compiler during the last compilation stage.

CUDA code should include the cuda.h header file. On the compilation command line, the cuda library should be specified to the linker on UNIX and Linux environments as explained below.

1. Using command line arguments to compile CUDA source code:

The compilation and execution details of CUDA programs is simple as like compilation of C language source code.

$ nvcc   -o   < executable name >   < name of source file >

For example to compile a simple Hello World program user can give :

$ nvcc   -o   helloworld   cuda-helloworld.cu

To execute a CUDA Program, give the name of the executable at command prompt.

$ . / < Name of the Executable >

For example, to execute a simple HelloWorld Program, user must type:

$ ./helloworld

The output must look similar to the following:

Hello World!

Compilation and Execution :

The compilation and execution of a program to run in Offline mode is is shown below.

# Compile to run CUDA enabled NVIDIA GPUs

make   -f   Makefile_CUDA_NVML

Example. 1 : Measure Power Consumption and extract maximum achieved performance for Matrix Matrix Multiplication using CUDA enabled NVIDIA GPUs and NVML Lib. calls with Pthread Programming Env.
(Download source code :
cuda_nvml_pthreads_power_main.cu;
cuda_nvml_mat_mat_multiply_power_kernel.cu ;
cuda_nvml_measure_power.cu;
cuda_nvml_power_kernel_functions.h;
cuda_nvml_power_kernel_define.h;
Makefile_CUDA_NVML );

Objective       Input       Description       Output

• Objective

Extract performance in G/flops for Matrix Matrix Multiply and analyze the performance on Intel Xeon system with Xeon Phi Coprocessor based on MPI-OpenMP.

• Description

Two input matrices are filled with real data and matrix-matrix Multiply is performed and perform matrix matrix multiply on CUDA enabled GPUs. POSIX thread programming model is used to measure Power Consumption as well as and obtain the performance for Matrix Matrix Multiplication using CUDA enabled NVIDIA GPUs and NVML Lib. calls with Pthread Programming Env. The Pthread programming on Xeon Host and offload computation of matrix-matrix multiply on GPU. The other thread obtains the power consumption in Milli-watts as per calculations performed using NVML power APIs at periodic intervals of time. In implementation, The input matrices are generated on the Host-CPU. In simple algorithm, the input matrix is partitoned as per Grid of thread blocks. Each thread reads one row of the matrix and performs computation with one column of the another matrix and compute the correspodning elements of resultant marix on Device-GPU. The resultant matrix is transferred back to Host-CPU. The application developer implements standard algorithm with approriate choice of threading blocks of CUDA enabled NVIDIA GPUs are used for Matrix Matrix Multiplication algorithm.

NVML APIs such as

nvmlInit();
nvmlDevice_t device;
nvmlReturn_t result;
nvmlDeviceGetHandleByIndex(GPUDevId , &device);
nvmlDeviceGetPowerUsage( device, &p );

are used in this code.

• Input

Number of threads, Size of the Matrices.

• Output

Prints the reported Power Consumption in Milliwatts, Achieved Giaflops and the time taken for computation of Output matrix and CUDA enabled NVIDIA GPU information

Example. 2 : Measure Power Consumption and extract maximum achieved performance for Matrix Matrix Multiplication using CUBLAS Lib. of CUDA enabled NVIDIA GPUs and NVML Lib. calls with Pthread Programming Env.
(Download source code :
cublas_nvml_pthreads_power_main.cu;
cublas_nvml_mat_mat_multiply_power_kernel.cu ;
cublas_nvml_measure_power.cu;
cublas_nvml_power_kernel_functions.h;
cublas_nvml_power_kernel_define.h;
Makefile_CUBLAS_NVML );

Objective       Input       Description       Output

• Objective

Extract performance in G/flops for Matrix Matrix Multiply and analyze the performance on Intel Xeon system with Xeon Phi Coprocessor based on MPI-OpenMP.

• Description

Two input matrices are filled with real data and matrix-matrix Multiply is performed and perform matrix matrix multiply on CUDA enabled GPUs. POSIX thread programming model is used to measure Power Consumption as well as and obtain the performance for Matrix Matrix Multiplication using CUDA enabled NVIDIA GPUs and NVML Lib. calls with Pthread Programming Env. The Pthread programming on Xeon Host and offload computation of matrix-matrix multiply on GPU. The other thread obtains the power consumption in Milli-watts as per calculations performed using NVML power APIs at periodic intervals of time. In implementation, The input matrices are generated on the Host-CPU. In simple algorithm, the input matrix is partitoned as per Grid of thread blocks. Each thread reads one row of the matrix and performs computation with one column of the another matrix and compute the correspodning elements of resultant marix on Device-GPU. The resultant matrix is transferred back to Host-CPU. The CUBLAS3 library call performs computation on the Device-GPU.

NVML APIs such as

nvmlInit();
nvmlDevice_t device;
nvmlReturn_t result;
nvmlDeviceGetHandleByIndex(GPUDevId , &device);
nvmlDeviceGetPowerUsage( device, &p );

are used in this code.

• Input

Number of threads, Size of the Matrices.

• Output

Prints the reported Power Consumption in Milliwatts, Achieved Giaflops and the time taken for computation of Output matrix and CUDA enabled NVIDIA GPU information

Compilation and Execution :

The compilation and execution of a program to run in Offline mode is is shown below.

# Compile to run CUDA enabled NVIDIA GPUs

make   -f   Makefile_CUDA_NVML

Example. 3 : Measure Power Consumption for Device Query Operation on GPUs
(Download source code :
cuda_dev_query_nvml_pthreads_power_main.cu;
cuda_dev_query_nvml_power_kernel.cu ;
cuda_dev_query_nvml_measure_power.cu;
cuda_dev_query_nvml_power_kernel_functions.h;
cuda_dev_query_nvml_power_kernel_define.h;
Makefile_DeviceQuery_NVML );

Objective       Input       Description       Output

• Objective

Power Consumption for Device Query

• Description

The CUDA programming paradigm consists of a host and one or more devices. The host manages the memory and execution of the devices. CUDA program consists of host code that runs on the host, and kernelcode that runs on the device. The CUDA cudaDeviceProp struct has a wealth of information as given below.

CUDA Device Properties can be obtained by calling cudaGetDeviceProperties. The program that prints out the number of CUDA devices and the name of the current CUDA device CUDA Device Query operation (RUntime API) gives information such as CUDA Driver version, CUDA Runtime Version, CUDA Capability Major & Minor revision, Total amount of local memory, Number of Multi-processors, Number of Cores, Total amount of constant and shared memory per block, total number of registers available per block, warp size, maximum number of thread per block, Maximum number of threads per block, Maximum sizes of each dimension of a block, Maximum sizes of each dimension of a grid, Maximum memory pitch,Texture alignment, & Clock rate.

If a CUDA-capable device and the CUDA Driver are installed but deviceQueryreports that no CUDA-capable devices are present, ensure the deivce and driver are properly installed.

POSIX thread programming model is used to measure Power Consumption as well as and obtain the performance for Matrix Matrix Multiplication using CUDA enabled NVIDIA GPUs and NVML Lib. calls with Pthread Programming Env. The Pthread programming on Xeon Host and offload the device query operation on GPU. The other thread obtains the power consumption in Milli-watts as per calculations performed using NVML power APIs at periodic intervals of time. In implementation, NVML APIs such as

nvmlInit();
nvmlDevice_t device;
nvmlReturn_t result;
nvmlDeviceGetHandleByIndex(GPUDevId , &device);
nvmlDeviceGetPowerUsage( device, &p );

are used in this code.

• Input

None

• Output

Prints the reported Power Consumption in Milliwatts, Achieved Giaflops and the time taken for computation of Output matrix and CUDA enabled NVIDIA GPU information

Example. 4 : Measure Power Consumption for Bandwdith on GPUs
(Download source code :
cuda_bandwidth_nvml_pthreads_power_main.cu;
cuda_bandwidth_nvml_power_kernel.cu ;
cuda_bandwidth_nvml_measure_power.cu;
cuda_bandwidth_nvml_power_kernel_functions.h;
cuda_bandwidth_nvml_power_kernel_define.h;
Makefile_bandwidth_NVML );

Objective       Description       Output

• Objective

Power Consumption for Bandwidth Test

• Description

The CUDA programming paradigm consists of a host and one or more devices. The host manages the memory and execution of the devices. CUDA BandwidthTest program gives Host to Device, Device to Host and Device to Device bandwidth using Pinned memory transfers. The device name and the bandwidth numbers vary from system to system. The important items are the second line, which confirms a CUDA device was found, and also confirms that all necessary tests passed. If a CUDA-capable device and the CUDA Driver are installed but deviceQueryreports that no CUDA-capable devices are present, ensure the deivce and driver are properly installed.

POSIX thread programming model is used to measure Power Consumption as well as and obtain the performance for Matrix Matrix Multiplication using CUDA enabled NVIDIA GPUs and NVML Lib. calls with Pthread Programming Env. The Pthread programming on Xeon Host and offload the device query operation on GPU. The other thread obtains the power consumption in Milli-watts as per calculations performed using NVML power APIs at periodic intervals of time. In implementation, NVML APIs such as

nvmlInit();
nvmlDevice_t device;
nvmlReturn_t result;
nvmlDeviceGetHandleByIndex(GPUDevId , &device);
nvmlDeviceGetPowerUsage( device, &p );

are used in this code.

• Input

None

• Output

Prints the reported Power Consumption in Milliwatts, Achieved Giaflops and the time taken for computation of Output matrix and CUDA enabled NVIDIA GPU information

Example. 5 : Measure Power Consumption for global memory access of floating point computations.
(Download source code :
cuda_globalmemory_nvml_pthreads_power_main.cu;
cuda_globalmemory_nvml_power_kernel.cu ;
cuda_globalmemory_nvml_measure_power.cu;
cuda_globalmemory_nvml_power_kernel_functions.h;
cuda_globalmemory_nvml_power_kernel_define.h;
Makefile_cuda_globalmemory_NVML );

Download source code (WinRAR ZIP Archive) ;
CUDA NVML POWER Coalesced Memory (WinRAR ZIP archive)

Download source code (WinRAR ZIP Archive) ;
CUDA NVML POWER Shared Memory (WinRAR ZIP archive)

Objective       Description       Output

• Objective

Power Consumption for CUDA globalmemory Test

• Description

The CUDA programming paradigm consists of a host and one or more devices. The host manages the memory and execution of the devices. CUDA\A0uses\A0a\A0segmented\A0memory\A0architecture\A0that\A0allows applications\A0to\A0access\A0data\A0in\A0global,\A0local,\A0 shared,\A0constant,\A0and\A0texture\A0memory. On GPUs, the memory operations from global memory are not only very time consuming but also power consuming. GPU uses a single SM, the power should remain the same, and power scales with respect to the number of SMs used.

Global memory is used to allocate or copy data between the host and device (GPU). Bandwidth between host and device memory is very low compared to data transfer within the GPU, therefore communication between host and device should be minimized. There is an overhead per communication, so single large transfers are better than many small transfers. Global memory is located in the main device memory, and data accesses from the SM to global memory are high latency (400-800 clock cycle) and low bandwidth (compared to on chip memory).

The latency can be hidden to some extent if there are a large number of active threads. Access to global memory from the SM can be improved using coalescing. We use these rules to show power consumed by coalesced memory.

Registers are associated with each SM and give the fastest access. Registers can store scalars and built-in vector types. Arrays indexed by constant values known at compile time typically reside in registers. On CUDA enabled NVIDIA GPUs, the size of the registers do not exceed 32 K since 32 K is the register space allocated per SM. Register spilling is very costly as it may result in data being placed in local memory rather than registers.

A floating point benchmark based on Taylor's thorem for Numerical Linear Algebra (NLA) kernel is considered for development of benchmarks.

Shared memory, which is software managed cache, is on chip memory which has high bandwidth and low latency. It can be used for thread cooperation as this memory is shared between all threads within a block. Shared memory is divided into successive equal sized banks, i.e. 32 x 32-bit for C2075, that can be accessed simultaneously.

Shared memory can be as fast as the registers if bank con icts are avoided. Multiple requests to the same bank result in serialization unless all threads read the same address.

Coalesced Memory : Since access to global memory is via 32, 64, or 128 byte accesses, the benchmarks can be desined in such a way each thread can access it in a regular pattern of 128 bytes. Coalesced memory accesses are very important for instruction throughput. The local and global variables use global memory. If memory accesses to global memory which are not regular patterns to global memory are called noncoalesced accesses. The Pthread programming on Xeon Host and offload the device query operation on GPU. The other thread obtains the power consumption in Milli-watts as per calculations performed using NVML power APIs at periodic intervals of time. In implementation, NVML APIs such as

nvmlInit();
nvmlDevice_t device;
nvmlReturn_t result;
nvmlDeviceGetHandleByIndex(GPUDevId , &device);
nvmlDeviceGetPowerUsage(device, &p );

are used in this code.

• Input

None

• Output

CUDA globalmemory\A0\A0prints\A0performance results.\A0

• Power Watt Consumption : Memory Bandwidth; Asynchronous and Overlapping Transfers with Computation;

• Power Watt Consumption : Global and Shared Memory Implementation - Memory Intensive Benchmark

• Power Watt Consumption : Floating Point Benchmark - Coalesced Access to Global Memory; Floating Point Benchmark - Global and Shared Memory using CUBLAS library call - DGEMM; User Developed Codes for NLA Kernels

• Power Consumption : Stream Benchmark; Open source software - MAGMA, Apps - String Search Alg.; Poisson Equation Solver

• CUDA Device Query on Single and Multi-GPU : Power Watt Consumption
  (Download source code : device-query-power-measurement.cu )


• Power-Watt Consumption : Check for Power Consumption on each device with driver and without driver

• Power Watt Consumption : Memory Check, & Memory Bandwidth

• Power Watt Consumption : Asynchronous and Overlapping Transfers with Computation

• Global and Shared Memory Implementation - Memory Intensive Benchmark

• Floating Point Benchmark - Coalesced Access to Global Memory

• Floating Point Benchmark - Global and Shared Memory using CUBLAS library call - DGEMM

• Open Source Benchmark Stream Execution - Performance on each GPU (Download source code (WinRAR ZIP Archive): power-demo-gpu-work-Stream.zip )


• SAXPY implementations in CUDA C and Thrust

• Write your own program to measure the total power consumption and performance for different problem sizes for implementation of PDE solver using Finite Difference Method (FDM) based on MPI & CUDA framework.

• Application Kernels : Implementation of Poisson Equation solver - CUDA Implementation

• Application Kernels : Implementation of String Search Algorithms - CUDA Implementation

• Write your own program for NLA kernel codes and measure the power consumption and performance (turn around time & throughput) of Benchmark.

• Write your own program for NLA kernel codes and measure the power consumption and performance (turn around time & throughput) of Benchmark using CUBLAS Library.
