The Open Computing Language is a framework for writing programs that execute across heterogeneous platforms consisting of CPUs, GPUs, and other processors. OpenCL includes a language (based on C99) for writing kernels (functions that execute on OpenCL devices), plus APIs that are used to define and then control the heterogeneous platform. The OpenCL provides an opportunity for developers to effectively use the multiple heterogeneous compute resources on their CPUs, GPUs and other processors. Developers wanted to be able to access them together, not just off load the GPU for specific tasks and the OpenCL programming environment may address these issues. OpenCL supports wide range of applications, ranging from embedded and consume software to HPC solutions, through a low-level, high-performance, portable abstraction. It is expected that OpenCL will form the foundation layer of a parallel programming Eco-system of platform-independent tools, middle-ware, and applications.

• Objective

  Write a OpenCL program to solve the Poisson equation with Dirichlet boundary conditions in two space dimensions by finite difference method on structured rectangular type of grid. Use Jacobi iteration method to solve the discretized equations.


• Description

In the Poisson problem, the FD method is imposed a regular grid on the physical domain. The resuting disretized equations are solved using Jacobi Itertaive method. The description of the problem is discussed in Example 3.2

• Objective

  Write a OpenCL program to solve the Poisson equation with Dirichlet boundary conditions in two space dimensions by finite difference method on structured rectangular type of grid. Use Jacobi iteration method to solve the discretized equations.


• Description

In the Poisson problem, the FD method is imposed a regular grid on the physical domain. It then approximate the derivative of unknown quantity u at a grid point by the ratio of the difference in u at two adjacent grid points to the distance between the grid point. In a simple situation, consider a square domain discretized by n x n grid points, as shown in the Figure 1(a). Assume that the grid points are numbered in a row-major order fashion from left to right and from top to bottom, as shown in the Figure 1(b). This ordering is called natural ordering . Given a total of n² points in the domain n x n grid, this numbering scheme labels the immediate neighbors of point i on the top, left, right, and bottom point as i - n, i -1, i +1 and i+n , respectively. Figure 1(b) represents partitioning of mesh using one dimensional partitioning

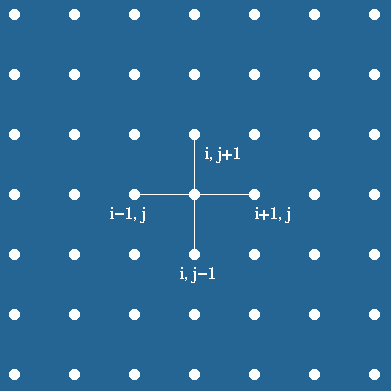

  Figure 1(a). Finite difference grid: Five point stencil approximation

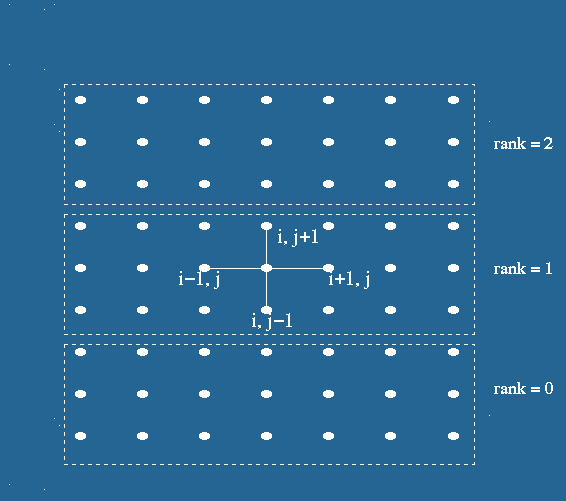

  Figure 1(b). One dimensional decomposition for 2-D problem, with n=7


• Formulation of Poisson Problem

The Poisson problem is expressed by the equations

      Lu  =  f(x, y)  in the interior of domain [0,1] x [0,1]

Where L is Laplacian operator in two space dimensions.

      u(x,y)  =  g(x,y) on the boundary of the domain [0,1] x [0,1]

We define a square mesh (also called a grid) consisting of the points (x_i , y_i), given by

           x_i = i / n+1, i=0, ..., n+1,

           y_j = j / n+1, j=0, ...,n+1,

where there are n+2 points along each edge of the mesh. We will find an approximation to u(x , y) only at the points (x_i, y_j). Let u_{i, j} be the approximate solution to u at (x_i, y_j). and let h = 1/(n+1). Now, we can approximate at each of these points with the formula

   (u_{i-1, j} +u_{i, j+1}+u_{i, j-1}+u_{i+1, j}-4u_{i, j} )/ h² = f_{i, j} .



Rewriting the above equation as
   u_{i, j} = 1/4(u_{i-1, j}+u_{i, j+1}+u_{i, j-1}+u_{i+1, j}-h²f_{i, j}),

Jacobi iteration method is employed to obtain final solution starting with initial guess solution u_i,j^k for k=0 for all mesh points u _i,j  and solve the following equation iteratively until the solution is converged.

   u_{i, j}^k+1 = 1/4(u_{i-1, j}^k+u_{i, j+1}^k+u_{i, j-1}^k+u_{i+1, j}^k-h²f_{i, j}).

The resultant discretized banded matrix is shown in the Figure 2.



• Implementation:

  Two implementations have been done, one using kernels written in CUDA and the other using CUBLAS library. The steps in both implementations are the same, only the API may differ.

  Step1: Four arrays are required for computation, one for the storing old values of U i.e U_old, one for the storing new values of U i.e Unew and one each for the storing difference between these two and storing the index values of the interior points. Memory for these are allocated on the Host and they are initialized.

  Step2:Four more similar arrays are allocated on the GPU (device). The values of the arrays in the host machine are copied on to the arrays allocated on the device.

  Step3: We begin the computation with an initial solution of all zero's for the Uold vector in the first iteration and then apply boundary conditions on both Uold and Unew by setting the boundary values at corresponding positions.

  Step4: We compute the Unew values by u_{i, j} = 1/4(u_{i-1, j} + u_{i, j+1} + u_{i, j-1} + u_{i+1, j})

  Step5: Next we compute the difference between Unew and Uold.

  Step6: We assign U_new to U_old

  Step7: The values thus obtained (U_old) is used in the next iteration and steps 4,5,6 are repeated until Maximum difference value < TOLERANCE or present iteration equals Maximum iterations. All computations are done on GPU(device).



Important Steps :

Steps	Description
1.	Memory allocation on host and Input data Generation Allocate memory for input arrays to read mesh data, boundary data and iterative method for solution of poisson equation on host-CPU.
2.	Set opencl execution environment : Call the function setExeEnv which sets execution environment for opencl which performs the following : - Get Platform Information - Get Device Information - Create context for GPU-devices to be used - Create program object. - Build the program executable from the program source. The function performs (a). Discover & Initilaise the platforms; (b). Discoer & Initialie the devices; (c). Create a Context; and (d). Create program object build the program executable
3.	Create command queue using Using clCreateCommandQueue(*) and associate it with the device you want to execute on.
4.	Create device bufffer using device_buffer that will contain the data from the host_buffer.
5.	Write host-CPU data to device buffers : Use clEnqueueWriteBuffer
6.	Kernel Launch : (a). Create kernel handle; (b). Set kernel arguments; (c). Configure work-item strcture ( Define global and local worksizes and launch kernel for execution on device-GPU); and (d). Enqueue the kernel for execution
7.	Read the output Buffer to the host (Copy result from Device-GPU to host-CPU ) Use clEnqueueReadBuffer() API.
8.	Check correctness of result on host-CPU Compute solution of Iterative method on host-CPU and compare CPU and GPU results.
9.	Release OpenCL resources (Free the memory) Free the memory of arrays allocated on host-CPU & device-GPU

• Input

The input to the problem is given as arguments in the command line. It should be given in the following format ; Suppose that the number of points in the X direction is m, the number of points in the Y direction is n and the maximum number of iterations the program can is run is p, then the program must be run as,

       ./program_name m n p

CPU assigns the boundary values for the Uold and Unew vectors.

• Output

CPU prints the final Unew vector which is the solution to the Poisson equation with the above stated boundary values

• Objective

  Write a OpenCL program to implement Laplace Edge Detection algorithm on AMD-APP GPU with MPI as host-CPU Programming. Assignment


• Description

The Laplacian image kernel is a 3 x3 two-dimensional array and this kernel is applied to each pixel in the image and takes into account the pixel's neighbors in a 3 x 3 area around it. The organization of multidimensional thread blocks of images into multidimensional grids are required for CUDA development to process the of arrays of data in typical edge detection algorithm. This representation of data in these forms are usually best suited for migration to CUDA for processing. Such data types include images that can be represented as a two-dimensional matrix where each entry corresponds to a single pixel in the image. An image pixel consists of a discrete red, green, and blue component in the range [0 . . . 255].

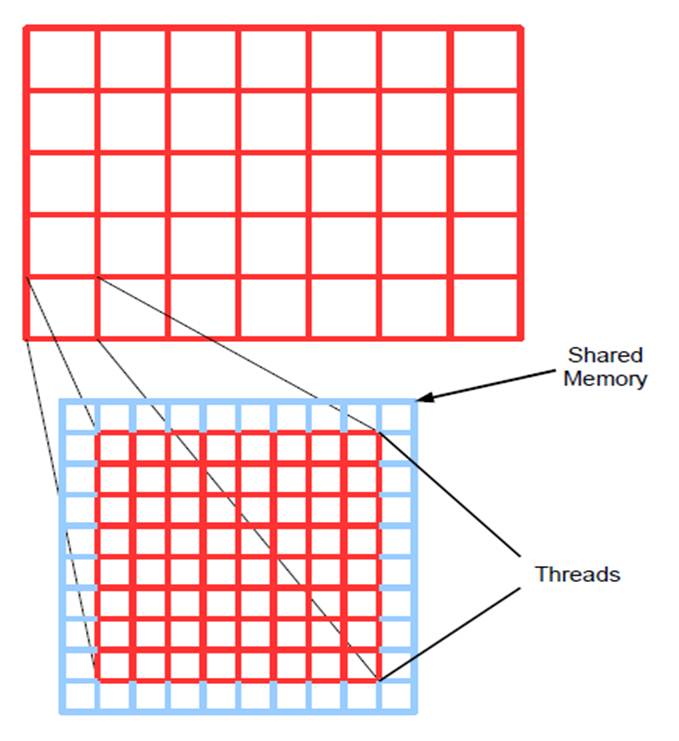

We create a two-dimensional grid that is overlaid on the image, segmenting it into several rectangular sections, as illustrated in Figure 1. For simplicity, we assume the image can be evenly divided into full sized segments. In other words, the image is divided into thread blocks of 8 x 8 and 16 x 16 sizes. Each thread within the thread block corresponds to a single pixel within the image. In implementation, each thread is responsible for loading one pixel or the block of 3 x 3 pixel area into shared memory





  Figure 1(a). Thread blocks for single pixel per thread method

  Figure 1(b). Thread blocks for multiple pixels
For edge detection, the each target pixel requires that a 3x3 area surrounding pixels and these are analyzed to calculate the output. Therefore, threads on the edge of a thread block must examine pixels that are outside the dimensions of the thread block. In order to ensure accuracy of the output image, these threads are responsible for loading the pixels they are adjacent to that do not have a mapping in the thread block into shared memory.

That is, the threads on the edge of the block load the boundary pixels into shared memory. This extra step is performed after the initial shared memory load that all threads perform. To compensate for the required extra space, the two-dimensional shared memory array is allocated to have dimensions of (blockDim.x+2, blockDim.y+2). This allocates two additional rows and two additional columns of shared memory. Once the block has loaded its respective section of the target image into shared memory, a syncthreads() function is called so that the threads can re-group before proceeding.

For each thread in the thread-block, we apply the convolution kernel for target pixel which is at the center element and the 3x3 pixel group. After applying the convolution formula, we obtain correct pixel value. Once the OpenCL kernel has finished executing, the allocated memory within the GPU is freed and the program exits.

To develop a OpenCL parallel algorithm for Laplacian edge detection, two OpenCL work-items, while the second took a new approach in an attempt to increase efficiency within CUDA thread blocks.
